Description

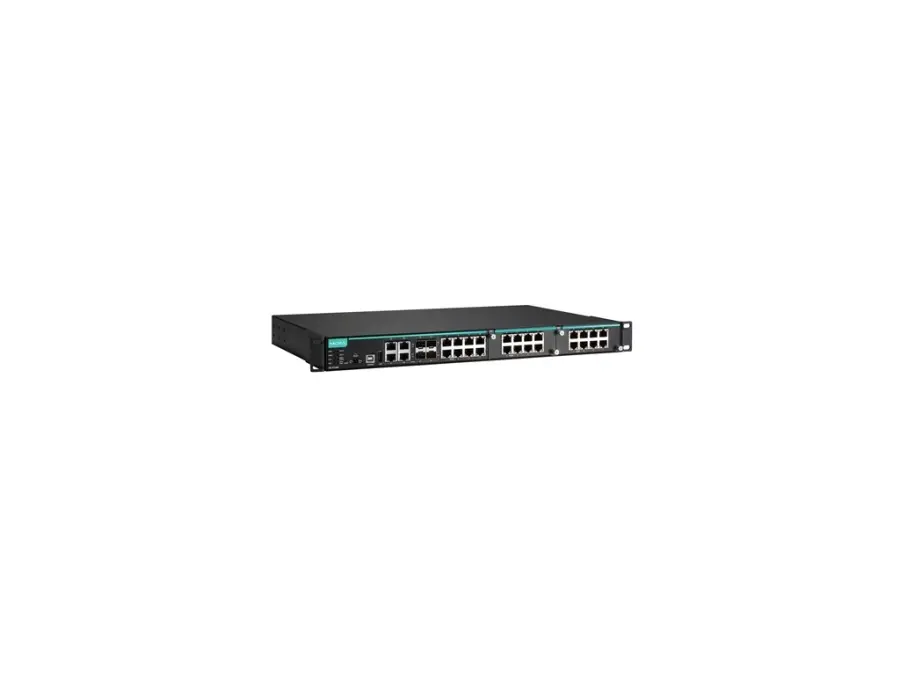

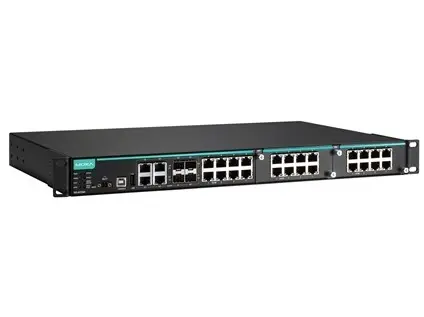

Industrial Managed PoE Ethernet switch – Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, 2 slots for Fast Ethernet modules, front cabling, 2 isolated power supplies (48 VDC), -40 to 75°C operating temperature
Input/Output Interface
- Alarm Contact Channels: 1 relay output with current carrying capacity of 1 A @ 24 VDC
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 8
- Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP): 4
- Module: 2 modular slots for any 8-port or 6-port Interface Modules with 10/100BaseT(X), 100BaseFX (SC/ST connector), 100Base PoE/PoE+, or 100Base SFP See the IM-6700A datasheet for Fast Ethernet module product information.
- Standards: IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Ethernet Software Features
- Management: Back Pressure Flow Control BOOTP DDM DHCP Option 66/67/82 DHCP Server/Client Flow control IPv4/IPv6 LLDP Port Mirror RARP RMON SCP SMTP SNMP Inform SNMPv1/v2c/v3 Syslog Telnet TFTP
- Filter: 802.1Q BPDU Filter BPDU Guard GMRP GVRP IGMP v1/v2/v3
- Redundancy Protocols: Link Aggregation MRP MSTP RSTP STP Turbo Chain Turbo Ring v1/v2 V-ON
- Security: Access control list Broadcast storm protection HTTPS/SSL MAB authentication NTP authentication Port Lock RADIUS SSH TACACS+
- Time Management: NTP Server/Client SNTP
- Industrial Protocols: EtherNet/IP Modbus TCP PROFINET
- MIB: Ethernet-like MIB MIB-II P-BRIDGE MIB Q-BRIDGE MIB RMON MIB Groups 1, 2, 3, 9 RSTP MIB
Switch Properties
- IGMP Groups: 2048
- Jumbo Frame Size: 9.6 KB
- MAC Table Size: 16 K
- Max. No. of VLANs: 64
- Packet Buffer Size: 12 Mbits
- Priority Queues: 4
- VLAN ID Range: VID 1 to 4094
USB Interface
Serial Interface
- Console Port: USB-serial console (Type B connector)
Power Parameters
- Input Voltage: 48 VDC Redundant dual inputs
- Operating Voltage: 36 to 72 VDC
- Input Current: 1.1/0.6 A @ 24/48 VDC 0.46/0.31 A @ 110/220 VAC Note: These are the input current ratings for the device with the maximum number of modules installed.
- Power Consumption (Max.): 26.4/28.8 W @ 24/48 VDC 29.28/31.92 W @ 110/220 VAC Note: These are the power consumption ratings for the device with the maximum number of modules installed.
- Total PoE Power Budget: IKS-6728A-PoE series: Maximum 720 W @ 48 VDC
- Overload Current Protection: Supported
- Reverse Polarity Protection: Supported
Physical Characteristics
- IP Rating: IP30
- Dimensions: 440 x 44 x 280 mm (17.32 x 1.37 x 11.02 in)
- Weight: 4100 g (9.05 lb)
- Installation: Rack mounting
Environmental Limits
- Operating Temperature: -40 to 75°C (-40 to 167°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- Safety: EN 60950-1 UL 60950-1
- EMC: EN 55032/24
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Railway: EN 50121-4
- Maritime: ABS LR NK DNV
- Freefall: IEC 60068-2-32
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
MTBF
- Time: 837,778 hrs
- Standards: Telcordia (Bellcore), GB
