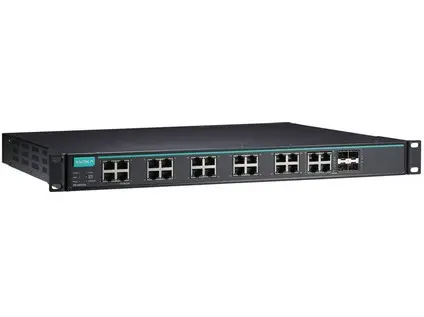

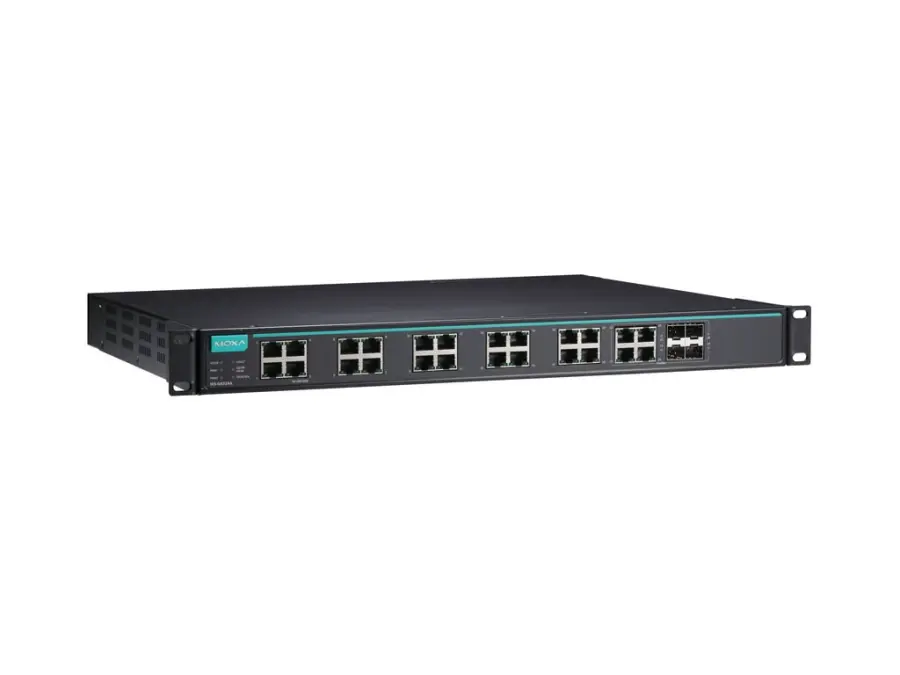

--- title: "IKS-G6524A-20GSFP-4GTXSFP-HV-HV-T" category: "Industrial Communication > Industrial Ethernet > Rackmount Ethernet Switches" --- **Kategorie:** Industrial Communication > Industrial Ethernet > Rackmount Ethernet Switches # IKS-G6524A-20GSFP-4GTXSFP-HV-HV-T Industrial Layer 2 Managed Ethernet switch, Ports: 20, SFP: 20, Temp: -40 to 75°C (-40 to 167°F), Power: 110 to 240 VAC Redundant dual inputs **Dostupnost:** Not in stock (0 pcs) ## Základní informace | Parametr | Hodnota | | --- | --- | | Unit | pcs | | Code 1 | 180428113822 | | Warranty | 60 | | Warranty for companies | 60 | | Brand | MOXA | ## Podrobný popis Industrial Layer 2 Managed Ethernet switch – Layer 2 full Gigabit managed Ethernet switch with 20 100/1000BaseSFP slots, 4 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, 2 isolated power supplies (85 to 264 VAC), -40 to 75°C operating temperatureInput/Output InterfaceAlarm Contact Channels: Relay output with current carrying capacity of 2 A @ 30 VDCDigital Inputs: +13 to +30 V for state 1 -30 to +1 V for state 0 Max. input current: 8 mAEthernet Interface100/1000BaseSFP Ports: 20Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+): 4Standards: IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/ZXEthernet Software FeaturesManagement: ARP Back Pressure Flow Control BOOTP, DDM, DHCP Option 66/67/82 DHCP Server/Client IPv4/IPv6 LLDP Port Mirror RMON, SCP, SNMP Inform SNMPv1/v2c/v3 Syslog Telnet TFTP, SMTP, RARP Flow controlFilter: 802.1Q BPDU Filter BPDU Guard GMRP, GVRP, IGMP v1/v2/v3Redundancy Protocols: Link Aggregation MRP, MSTP, RSTP Turbo Chain Turbo Ring v1/v2 V-ONSecurity: Access control list Broadcast storm protection HTTPS/SSL MAB authentication Sticky MAC NTP authentication Port Lock RADIUS, SSH, TACACS+Time Management: NTP Server/Client SNTPIndustrial Protocols: EtherNet/IP Modbus TCP PROFINETMIB: Bridge MIB Ethernet-like MIB MIB-II P-BRIDGE MIB Q-BRIDGE, MIB, RMON, MIB Groups 1, 2, 3, 9 RSTP MIBSwitch PropertiesDRAM: 128 MBFlash: 16 MBIGMP Groups: 4096Jumbo Frame Size: 9.6 KBMAC Table Size: 16 KMax. No. of VLANs: 256Packet Buffer Size: 12 MbitsVLAN ID Range: VID 1 to 4094Priority Queues: 8USB InterfaceStorage Port: USB Type ASerial InterfaceConsole Port: USB-serial console (Type B connector)Power ParametersInput Voltage: 110 to 240 VAC Redundant dual inputsOperating Voltage: 85 to 264 VACInput Current: Max. 0.66 A @ 110 VAC Max. 0.39 A @ 220 VACPower Consumption: Max. 37.83 W @ 110 VAC Max. 40.15 W @ 220 VACOverload Current Protection: SupportedReverse Polarity Protection: SupportedPhysical CharacteristicsIP Rating: IP30Dimensions: 440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in)Weight: 5100 g (11.25 lb)Installation: Rack mountingEnvironmental LimitsOperating Temperature: -40 to 75°C (-40 to 167°F)Storage Temperature (package included): -40 to 75°C (-40 to 167°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and CertificationsSafety: UL 62368-1 IEC 62368-1 UL 61010-2-201 EN 61010-2-201EMC: EN 55032/35 EN 61000-6-2/-6-4 ## Technická specifikace | Vlastnost | Hodnota | | --- | --- | | Min. provozní teplota | Min. provozní teplota -40 °C | | Max. provozní teplota | Max. provozní teplota 75 °C | | Počet metalických LAN portů | Počet metalických LAN portů 4 | | Počet portů max 1000 Mb | Počet portů max 1000 Mb 24 | | Normy | Normy EN 50121-4; UL 508 / UL 60950-1 | | Počet SFP slotů | Počet SFP slotů 24 | | Podpora MSTP a 802.1X | Podpora MSTP a 802.1X Ano | | Management | Management Ano | | Maximální počet portů včetně modulů | Maximální počet portů včetně modulů 24 | | Počet portů bez modulů | Počet portů bez modulů 24 | ## Soubory ke stažení * [Katalog IKS-G6524A_G6824A_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/IKS-G6524A_G6824A_Series_ELVAC15.pdf) * [Manual Moxa_Managed_Ethernet_Switch_(UI_2.0)_UM_v2_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/Moxa_Managed_Ethernet_Switch_(UI_2.0)_UM_v2_ELVAC15.pdf)
