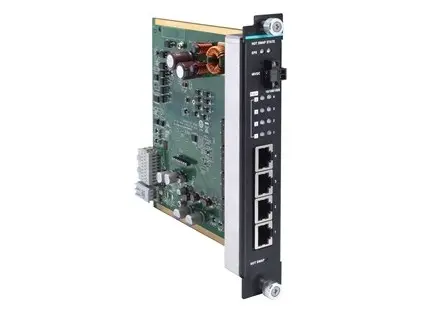

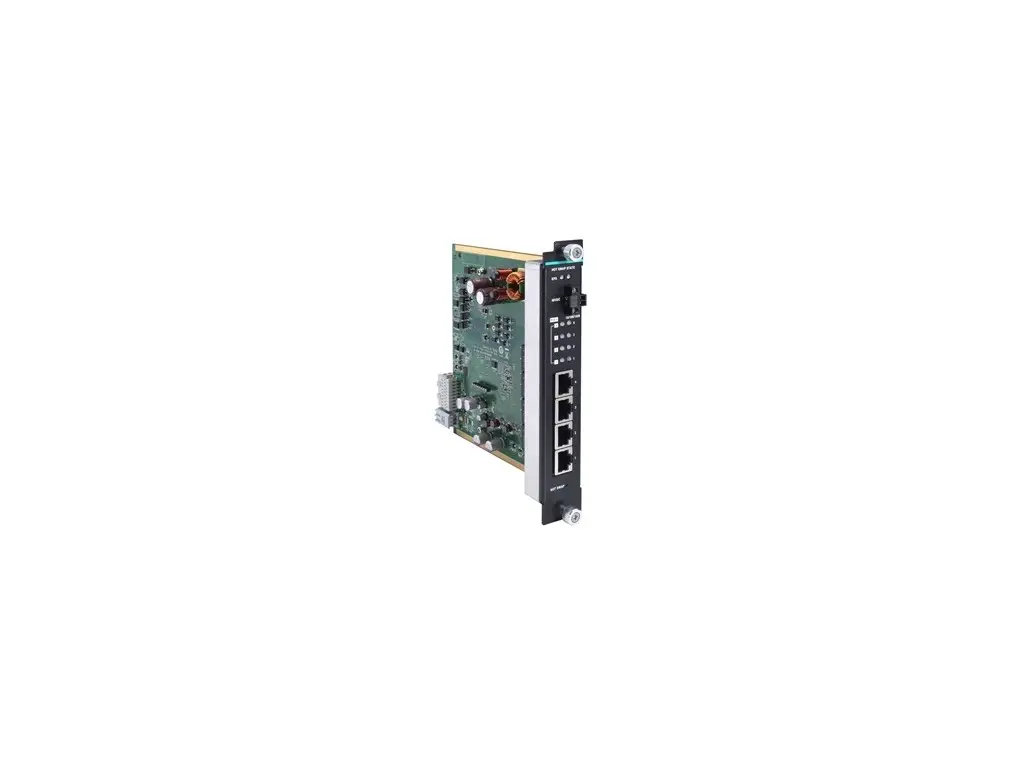

IM-G7000A-4PoE

Industrial networking device – Gigabit Ethernet PoE+ interface module with 4 10/100/1000BaseT(X) ports, -10 to 60°C operating temperature

Ethernet Interface

• PoE Ports (10/100/1000BaseT(X), RJ45 connector): 4, Compliant with IEEE 802.3af/at high power mode up to 36 W Auto negotiation speed

LED Interface

• LED Indicators: State, Hot-swap, 10/100/1000 for TP port, 100/1000 for fiber port, PoE and EPS for PoE module

Power Parameters

• Power Consumption: 5.14 W (max.)

Physical Characteristics

• Dimensions: 28.8 x 174.7 x 166.8 mm (1.13 x 6.88 x 6.57 in)
• Weight: 220 g (0.49 lb)

MTBF

• Time: 394,348 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
