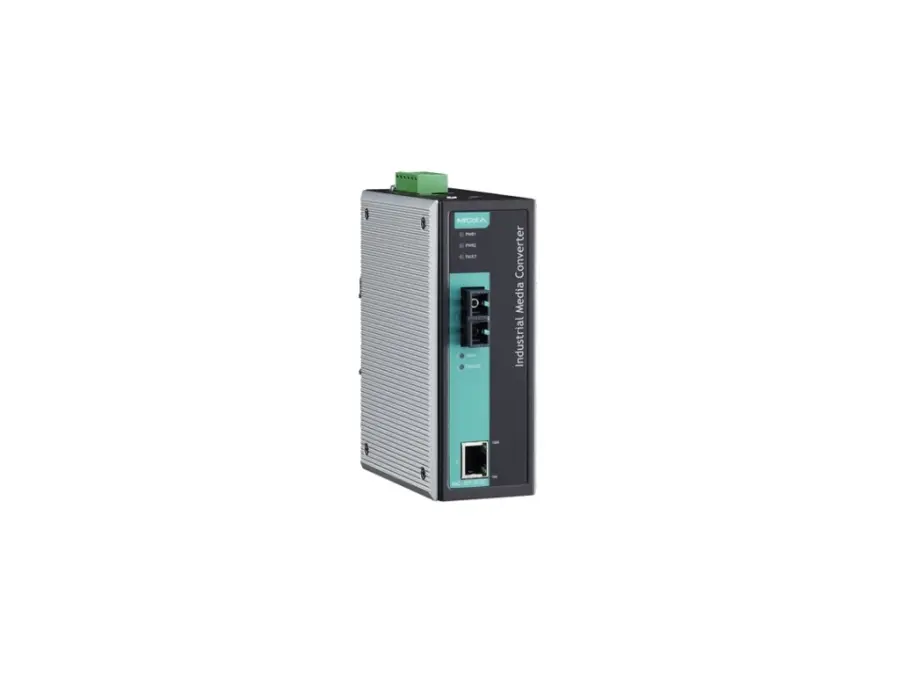

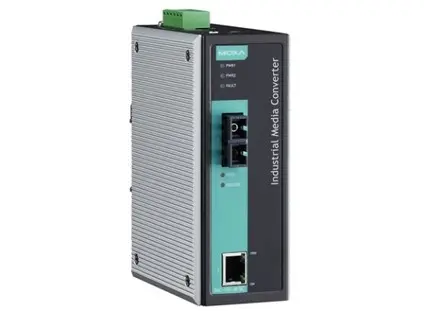

IMC-101-S-SC-T

Industrial media converter – Industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode, SC fiber connector, -40 to 75°C operating temperature

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): 1
• 100BaseFX Ports (single-mode SC connector): 1
• Magnetic Isolation Protection: 1.5 kV (built-in)
• Optical Fiber: Read more 100BaseFX Multi-Mode Single-Mode (40 km) Single-Mode (80 km) Fiber Cable Type OM1 50/125 µm G.652 G.652 800 MHz x km Typical Distance 4 km 5 km 40 km 80 km Wavelength Typical (nm) 1300 1310 1550 TX Range (nm) 1260 to 1360 1280 to 1340 1530 to 1570 RX Range (nm) 1100 to 1600 1100 to 1600 1100 to 1600 Optical Power TX Range (dBm) -10 to -20 0 to -5 0 to -5 RX Range (dBm) -3 to -32 -3 to -34 -3 to -34 Link Budget (dB) 12 29 29 Dispersion Penalty (dB) 3 1 1 Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Power Parameters

• Input Current: 200 mA @ 12 to 45 VDC
• Input Voltage: 12 to 45 VDC
• Overload Current Protection: Supported
• Power Connector: Terminal block
• Power Consumption: 200 mA @ 12 to 45 VDC

Physical Characteristics

• IP Rating: IP30
• Housing: Metal
• Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
• Weight: 630 g (1.39 lb)
• Installation: DIN-rail mounting

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/24
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
• Environmental Testing: IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3
• Safety: EN 60950-1, UL 60950-1
• Vibration: IEC 60068-2-6
• Hazardous Locations: ATEX Zone 2, UL/cUL Class I Division 2 Groups A/B/C/D
• Maritime: DNV

MTBF

• Time: 401,000 hrs
• Standards: MIL-HDBK-217F

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
