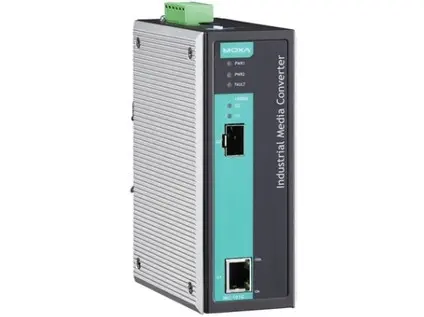

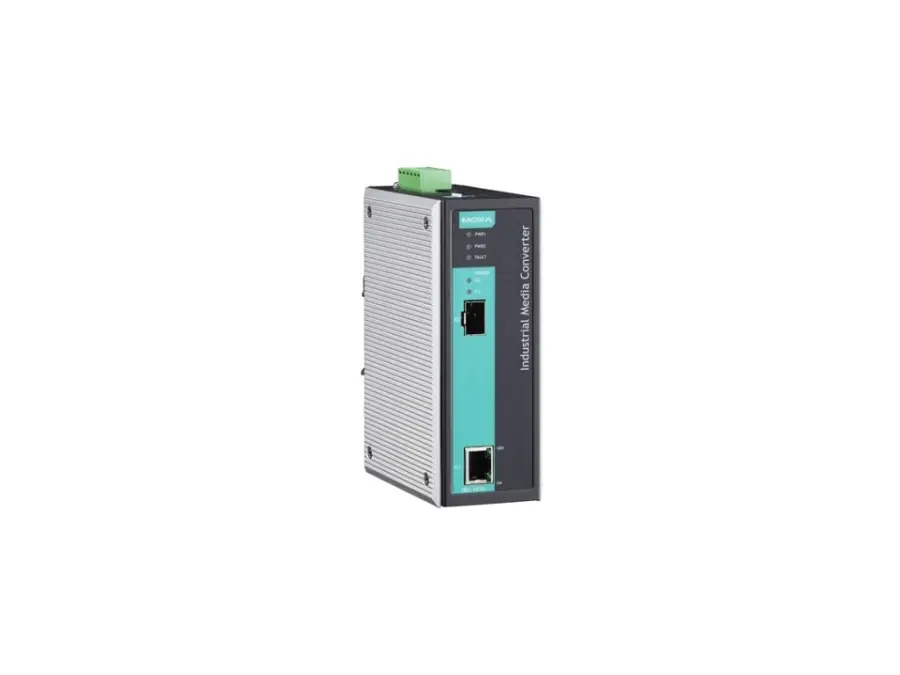

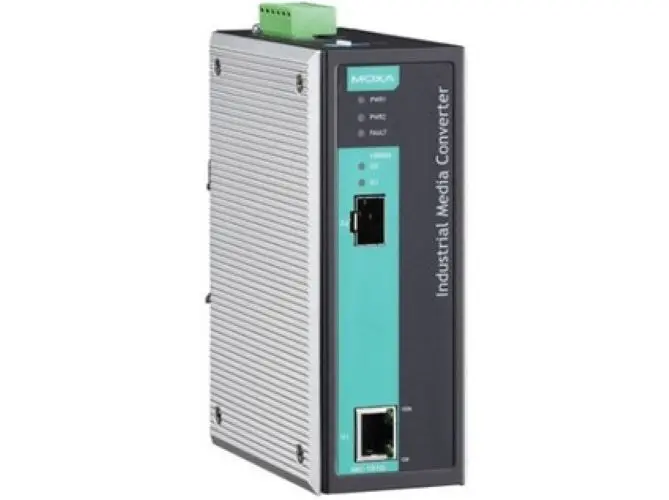

# IMC-101G

Industrial media converter, Ports: 1, SFP: 1, Temp: 0 to 60°C (32 to 140°F), Power: 12 to 48 VDC

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180420111603 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial media converter – Industrial 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX media converter, 0 to 60°C operating temperatureEthernet Interface10/100/1000BaseT(X) Ports (RJ45 connector): 11000 Mbps fiber (SFP connector): 1Magnetic Isolation Protection: 1.5 kV (built-in)Power ParametersInput Current: 200 mA (max)Input Voltage: 12 to 48 VDCOverload Current Protection: SupportedPower Connector: Terminal blockPhysical CharacteristicsHousing: MetalDimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)Weight: 630 g (1.39 lb)Installation: DIN-rail mountingEnvironmental LimitsOperating Temperature: 0 to 60°C (32 to 140°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and CertificationsEMC: EN 55032/35EMI: CISPR 32, FCC Part 15B Class AEMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF IEC 61000-4-11Environmental Testing: IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3Safety: EN 60950-1 UL 60950-1Vibration: IEC 60068-2-6Hazardous Locations: UL/cUL Class I Division 2 Groups A/B/C/DMTBFTime: 500,540 hrsStandards: Telcordia (Bellcore), GBWarrantyWarranty Period: 5 yearsDetails: See www.moxa.com/warranty

## Soubory ke stažení

* [Katalog IMC-101G_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/IMC-101G_ELVAC15.pdf)
* [Manual IMC-101G_HIG_4e_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/IMC-101G_HIG_4e_ELVAC15.pdf)
