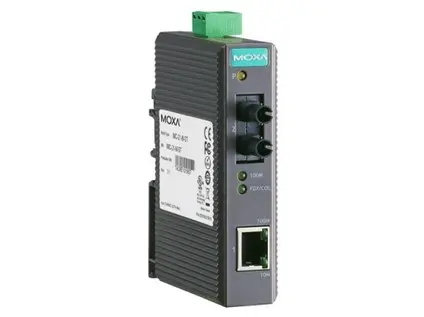

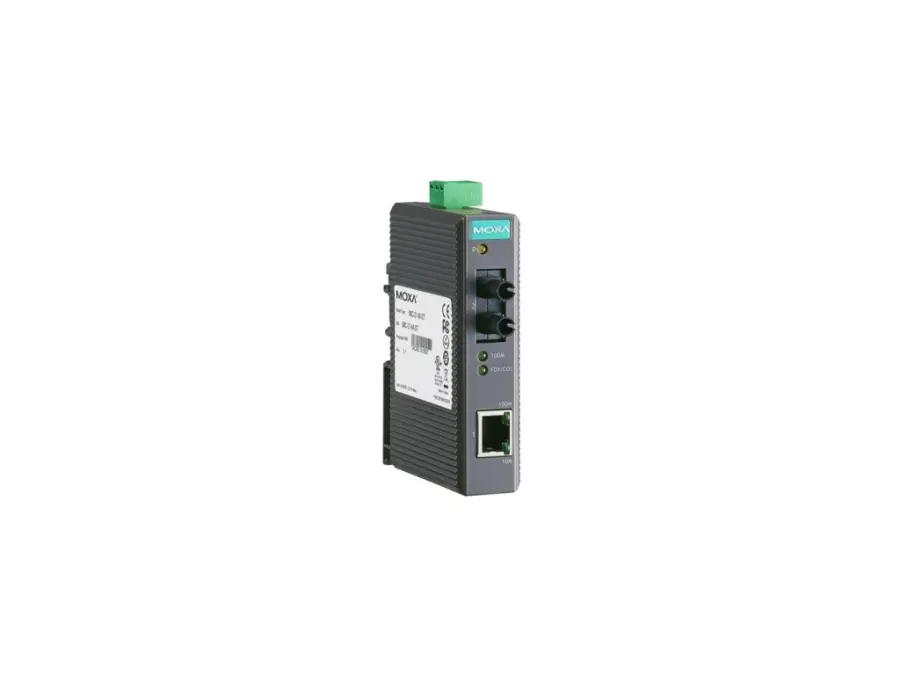

# IMC-21-M-ST

Industrial device, Ports: 1, Temp: -10 to 60°C (14 to 140°F)

**Dostupnost:** In stock (7 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180420111020 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial media converter – Industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode, ST connectorEthernet Interface10/100BaseT(X) Ports (RJ45 connector): 1100BaseFX Ports (multi-mode ST connector): 1Magnetic Isolation Protection: 1.5 kV (built-in)Optical Fiber: Read more 100BaseFX Multi-Mode Single-Mode Fiber Cable Type OM1 50/125 µm G.652 800 MHz x km Typical Distance 4 km 5 km 40 km Wavelength Typical (nm) 1300 1310 TX Range (nm) 1260 to 1360 1280 to 1340 RX Range (nm) 1100 to 1600 1100 to 1600 Optical Power TX Range (dBm) -10 to -20 0 to -5 RX Range (dBm) -3 to -32 -3 to -34 Link Budget (dB) 12 29 Dispersion Penalty (dB) 3 1 Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).Power ParametersInput Current: 12 to 48 VDC, 0.271A (Max.)Input Voltage: 12 to 48 VDCOverload Current Protection: SupportedPhysical CharacteristicsHousing: PlasticIP Rating: IP30Dimensions: 25 x 109 x 97 mm (0.98 x 4.29 x 3.82 in)Weight: 125 g (0.27 lb)Installation: DIN-rail mountingEnvironmental LimitsOperating Temperature: -10 to 60°C (14 to 140°F)Storage Temperature (package included): -40 to 70°C (-40 to 158°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and CertificationsEMC: EN 55032/24EMI: CISPR 32, FCC Part 15B Class AEMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11Environmental Testing: IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3Safety: EN 60950-1, UL 60950-1Vibration: IEC 60068-2-6MTBFTime: 353,000 hrsStandards: MIL-HDBK-217FWarrantyWarranty Period: 5 yearsDetails: See www.moxa.com/warranty

## Soubory ke stažení

* [Manual IMC-21_HIG_3e_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/IMC-21_HIG_3e_ELVAC15.pdf)
* [Katalog IMC-21_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/IMC-21_Series_ELVAC15.pdf)
