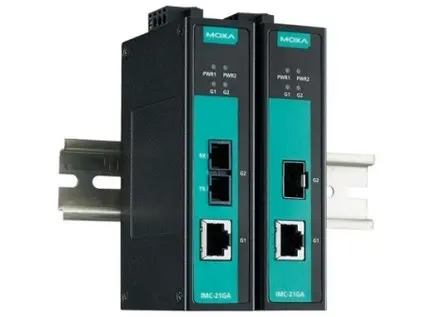

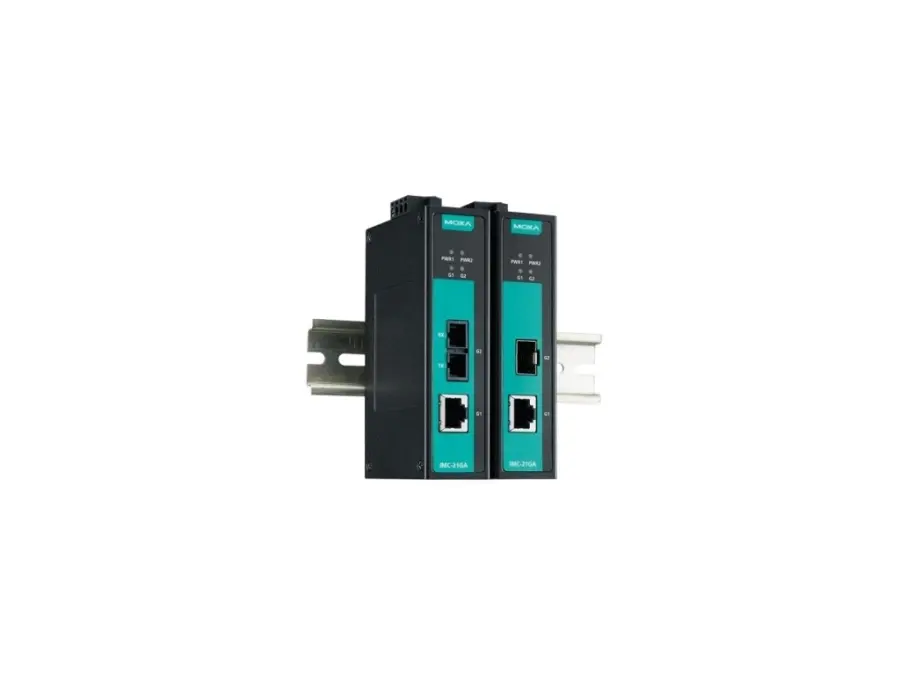

IMC-21GA-T

Industrial media converter – Industrial 10/100/1000BaseT(X) to 100/1000BaseSFP media converter, -40 to 75°C operating temperature

Ethernet Interface

• 10/100/1000BaseT(X) Ports (RJ45 connector): 1
• 100/1000BaseSFP Ports: 1
• Magnetic Isolation Protection: 1.5 kV (built-in)
• Optical Fiber: Read more 1000BaseSX 1000BaseLX Wavelength 850 nm 1310 nm Tx Output (dBm) -3 to -10 -3 to -9 Rx Sensitivity (dBm) -3 to -20 -3 to -21 Link Budget (dBm) 10 12 Typical Distance 500 m 10 km

Power Parameters

• Input Current: 284.7 mA @ 12 to 48 VDC
• Input Voltage: 12 to 48 VDC
• Overload Current Protection: Supported
• Power Connector: Terminal block
• Power Consumption: 284.7 mA @ 12 to 48 VDC

Physical Characteristics

• Housing: Metal
• Dimensions: 30 x 125 x 79 mm (1.19 x 4.92 x 3.11 in)
• Weight: 170 g (0.37 lb)
• Installation: DIN-rail mounting

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/24
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
• Environmental Testing: IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3
• Safety: EN 60950-1, UL 60950-1
• Vibration: IEC 60068-2-6

MTBF

• Time: 2,762,058 hrs
• Standards: MIL-HDBK-217F

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
