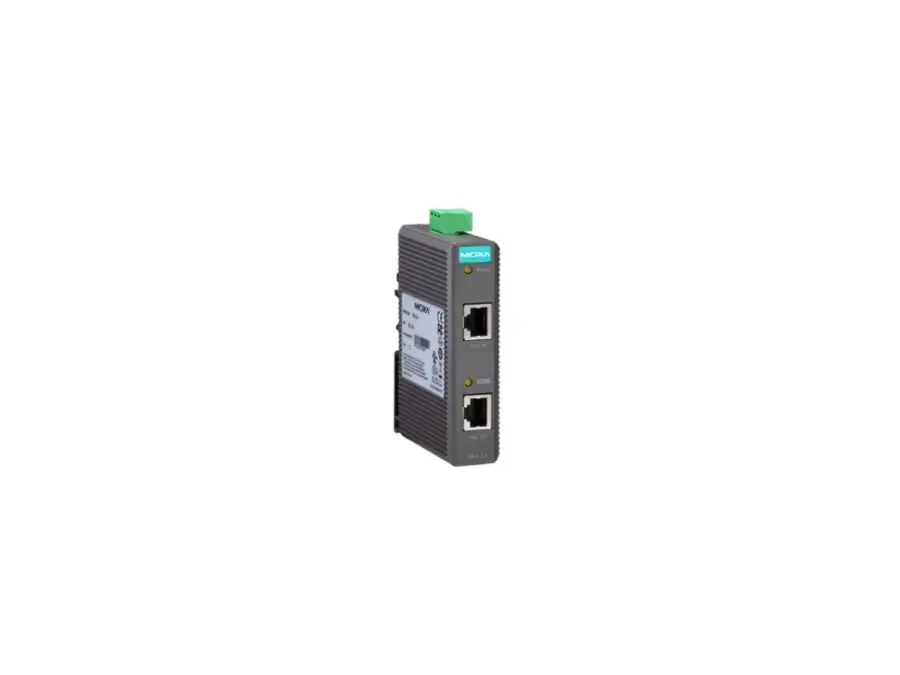

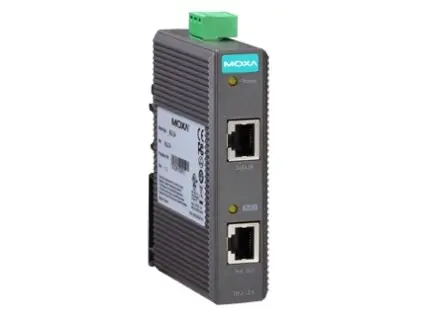

# INJ-24-T

Power supply, Material: Plastic, Dimensions: 24.9 x 100 x 86.2 mm (0.98 x 3.93 x 3.39 in)

**Dostupnost:** In stock (3 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180424113570 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Power supply – PoE+ Injector, maximum output of 30 W at 24/48 VDC, -40 to 75°C operating temperatureEthernet Interface10/100/1000BaseT(X) Ports (RJ45 connector): 1 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speedPoE Ports (10/100/1000BaseT(X), RJ45 connector): 1 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speedPoE Pinout: V+, V+, V-, V-, for pins 4, 5, 7, 8 (Midspan, MDI, Mode B)Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3af/at for PoE/PoE+ outputPower ParametersInput Voltage: 24/48 VDCOperating Voltage: 22 to 57 VDCInput Current: 1.42 A @ 24 VDCPower Consumption (Max.): Max. 4.08 W full loading without PDs’ consumptionPower Budget: Max. 30 W for total PD consumption Max. 30 W for each PoE portConnection: 1 removable 3-contact terminal block(s)Overload Current Protection: SupportedReverse Polarity Protection: SupportedPhysical CharacteristicsHousing: PlasticIP Rating: IP30Dimensions: 24.9 x 100 x 86.2 mm (0.98 x 3.93 x 3.39 in)Weight: 115 g (0.26 lb)Installation: DIN-rail mountingEnvironmental LimitsOperating Temperature: -40 to 75°C (-40 to 167°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and CertificationsSafety: UL 508 EN 62368-1EMC: EN 55032/24EMI: CISPR 32, FCC Part 15B Class AEMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMFFreefall: IEC 60068-2-31Shock: IEC 60068-2-27Vibration: IEC 60068-2-6MTBFTime: 2,525,278 hrsStandards: Telcordia (Bellcore), GBWarrantyWarranty Period: 5 yearsDetails: See www.moxa.com/warranty

## Soubory ke stažení

* [Katalog INJ-24_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/INJ-24_Series_ELVAC15.pdf)
* [Manual INJ-24_HIG_2e_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/INJ-24_HIG_2e_ELVAC15.pdf)
