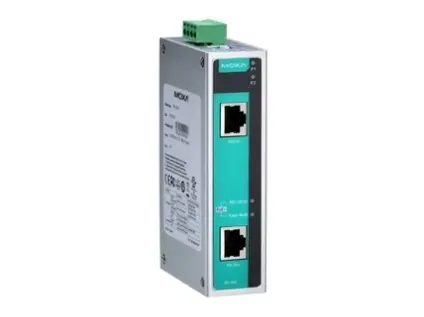

INJ-24A-T

Power supply – Gigabit high-power PoE+ injector, max. output of 36W/60W at 24 or 48 VDC by 2-pair/4-pair mode, -40 to 75°C operating temperature

Ethernet Interface

• 10/100/1000BaseT(X) Ports (RJ45 connector): 1 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed
• PoE Ports (10/100/1000BaseT(X), RJ45 connector): 1 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed
• PoE Pinout: Default: V+, V+, V-, V- for pins 4, 5, 7, 8 (Midspan, MDI, Mode B) Custom DIP switch setting: V+, V+, V-, V- for pins 1, 2, 3, 6 (Endspan, MDI, Mode A)
• Standards: IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3af/at for PoE/PoE+ output IEEE 802.3u for 100BaseT(X)

Power Parameters

• Input Voltage: 24/48 VDC
• Operating Voltage: 22 to 57 VDC
• Input Current: 2.71 A @ 24 VDC
• Power Consumption (Max.): Max. 5.29 W full loading without PDs’ consumption
• Power Budget: Max. 60 W for total PD consumption Max. 60 W for each PoE port
• Connection: 1 removable 4-contact terminal block(s)
• Overload Current Protection: Supported
• Reverse Polarity Protection: Supported

Physical Characteristics

• Housing: Metal
• IP Rating: IP30
• Dimensions: 30 x 115 x 78.8 mm (1.19 x 4.53 x 3.10 in)
• Weight: 245 g (0.54 lb)
• Installation: DIN-rail mounting Wall mounting (with optional kit)

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• Safety: UL 508 EN 62368-1
• EMC: EN 55032/24
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 3 kV; Signal: 3 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
• Freefall: IEC 60068-2-31
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6

MTBF

• Time: 2,407,739 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
