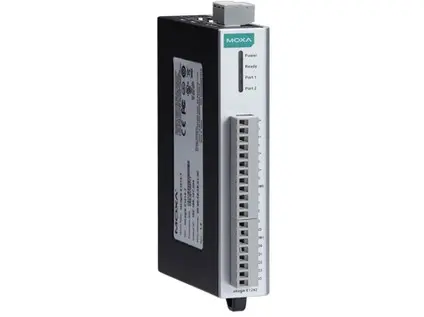

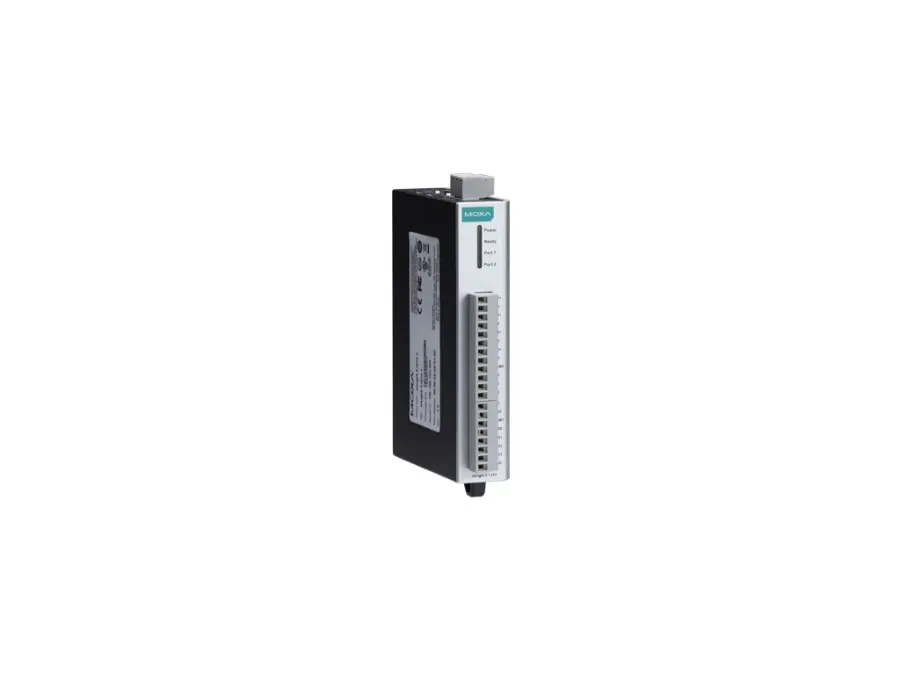

ioLogik E1240

I/O module – Universal I/O, 8 AIs, -10 to 60°C operating temperature

Input/Output Interface

• Analog Input Channels: 8
• Isolation: 3k VDC or 2k Vrms
• Buttons: Reset button

Analog Inputs

• Connector: Screw-fastened Euroblock terminal
• I/O Mode: Voltage/Current
• I/O Type: Differential
• Resolution: 16 bits
• Input Range: 0 to 10 VDC 0 to 20 mA 4 to 20 mA 4 to 20 mA (with burn-out detection)
• Accuracy: ±0.1% FSR @ 25°C ±0.3% FSR @ -10 to 60°C
• Sampling Rate: 12 samples/sec per module (shared between up to 8 channels) If N channels are enabled, the sampling rate for each enabled channel = 12/N samples/sec.
• Built-in Resistor for Current Input: 120 ohms
• Input Impedance: 10 mega-ohms (min.)

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): 2, 1 MAC address (Ethernet bypass)
• Magnetic Isolation Protection: 1.5 kV (built-in)

Ethernet Software Features

• Configuration Options: Web Console (HTTP) Windows Utility (ioSearch) MCC Tool
• Industrial Protocols: Modbus TCP Server (Slave) Moxa AOPC (Active Tag) MXIO Library EtherNet/IP Adapter
• Management: RESTful API SNMPv1/v2c SNMPv1 Trap HTTP DHCP Client BOOTP IPv4 TCP/IP UDP
• MIB: Device Settings MIB
• Security: Access control list

Security Functions

• Authentication: Local database

LED Interface

• LED Indicators: Power, Ready, Port 1, Port 2

Modbus TCP

• Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
• Mode: Server (Slave)
• Max. No. of Client Connections: 10

EtherNet/IP

• Mode: Adapter
• Max. No. of Scanner Connections: 9 (for read-only), 1 (for read/write)

Power Parameters

• Power Connector: Screw-fastened Euroblock terminal
• No. of Power Inputs: 1
• Input Voltage: 12 to 36 VDC
• Power Consumption: 121 mA @ 24 VDC

Physical Characteristics

• Housing: Plastic
• Dimensions: 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)
• Weight: 200 g (0.44 lb)
• Installation: DIN-rail mounting Wall mounting
• Wiring: I/O cable, 16 to 26 AWG Power cable, 12 to 24 AWG

Environmental Limits

• Operating Temperature: -10 to 60°C (14 to 140°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Altitude: 4000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

Standards and Certifications

• EMC: EN 55032/24 EN 61000-6-2/-6-4
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
• Hazardous Locations: ATEX Class I Division 2
• Safety: UL 508
• Shock: IEC 60068-2-27
• Freefall: IEC 60068-2-32
• Vibration: IEC 60068-2-6

Declaration

• Green Product: RoHS, CRoHS, WEEE

MTBF

• Time: 474,053 hrs
• Standards: Telcordia Standard SR-332

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
