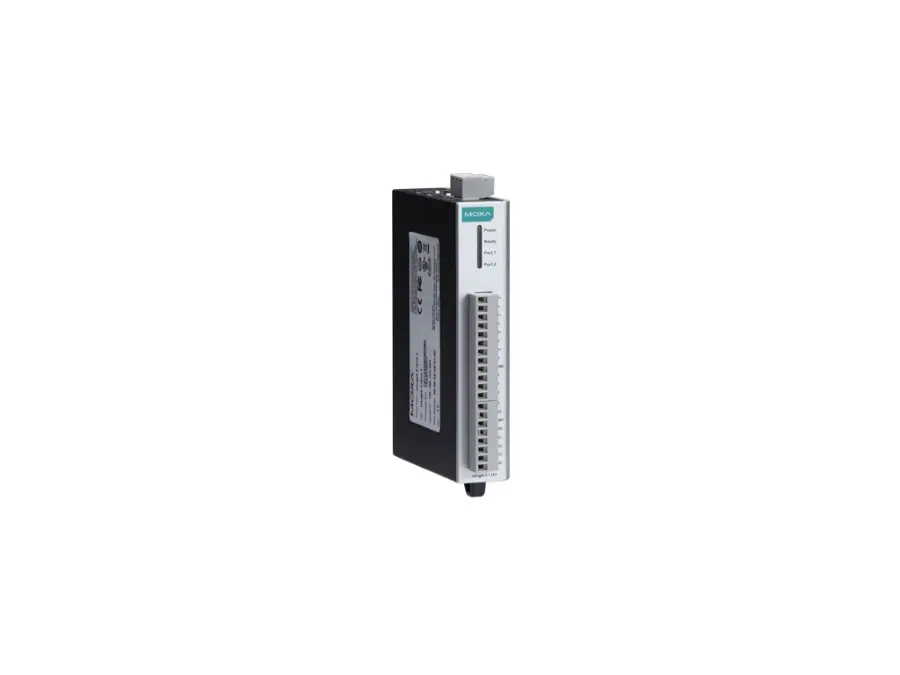

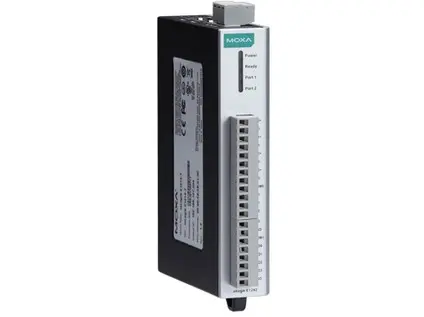

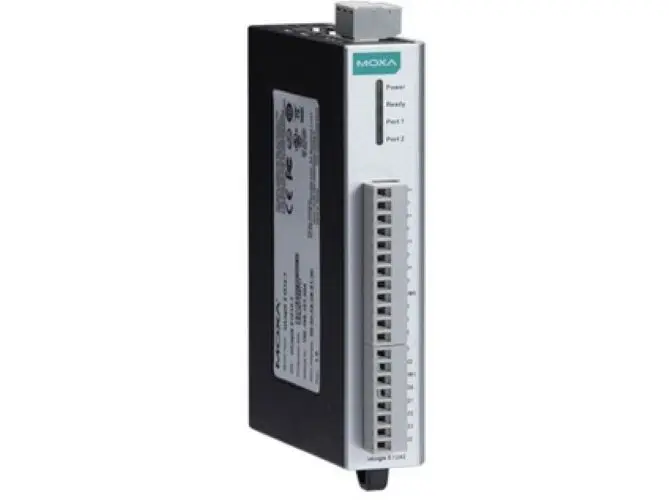

# ioLogik E1242

I/O module, LAN: 2, 1 MAC address (Ethernet bypass), Protocols: Modbus TCP Server (Slave) Moxa AOPC (Active Tag) MXIO Lib, Temp: -10 to 60°C (14 to 140°F), Power: 1

**Dostupnost:** In stock (11 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 200412025530 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

I/O module – Universal I/O, 4 AIs, 4 DIs, 4 DIOs, -10 to 60°C operating temperatureInput/Output InterfaceDigital Input Channels: 4Configurable DIO Channels (by jumper): 4Analog Input Channels: 4Isolation: 3k VDC or 2k VrmsButtons: Reset buttonDigital InputsConnector: Screw-fastened Euroblock terminalSensor Type: Dry contact Wet contact (NPN or PNP)I/O Mode: DI or event counterDry Contact: On: short to GND Off: openWet Contact (DI to COM): On: 10 to 30 VDC Off: 0 to 3 VDCCounter Frequency: 250 HzDigital Filtering Time Interval: Software configurablePoints per COM: 4 channelsDigital OutputsConnector: Screw-fastened Euroblock terminalI/O Type: SinkI/O Mode: DO or pulse outputCurrent Rating: 200 mA per channelPulse Output Frequency: 500 Hz (max.)Over-Current Protection: 2.6 A per channel @ 25°COver-Temperature Shutdown: 175°C (typical), 150°C (min.)Over-Voltage Protection: 35 VDCAnalog InputsConnector: Screw-fastened Euroblock terminalI/O Mode: Voltage/CurrentI/O Type: DifferentialResolution: 16 bitsInput Range: 0 to 10 VDC 0 to 20 mA 4 to 20 mA 4 to 20 mA (with burn-out detection)Accuracy: ±0.1% FSR @ 25°C ±0.3% FSR @ -10 to 60°CSampling Rate: 12 samples/sec per module (shared between up to 4 channels) If N channels are enabled, the sampling rate for each enabled channel = 12/N samples/sec.Built-in Resistor for Current Input: 120 ohmsInput Impedance: 10 mega-ohms (min.)Ethernet Interface10/100BaseT(X) Ports (RJ45 connector): 2, 1 MAC address (Ethernet bypass)Magnetic Isolation Protection: 1.5 kV (built-in)Ethernet Software FeaturesConfiguration Options: Web Console (HTTP) Windows Utility (ioSearch) MCC ToolIndustrial Protocols: Modbus TCP Server (Slave) Moxa AOPC (Active Tag) MXIO Library EtherNet/IP AdapterManagement: RESTful API SNMPv1/v2c SNMPv1 Trap HTTP DHCP Client BOOTP IPv4 TCP/IP UDPMIB: Device Settings MIBSecurity: Access control listSecurity FunctionsAuthentication: Local databaseLED InterfaceLED Indicators: Power, Ready, Port 1, Port 2Modbus TCPFunctions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23Mode: Server (Slave)Max. No. of Client Connections: 10EtherNet/IPMode: AdapterMax. No. of Scanner Connections: 9 (for read-only), 1 (for read/write)Power ParametersPower Connector: Screw-fastened Euroblock terminalNo. of Power Inputs: 1Input Voltage: 12 to 36 VDCPower Consumption: 139 mA @ 24 VDCPhysical CharacteristicsHousing: PlasticDimensions: 27.8 x 124 x 84 m

## Technická specifikace

| Vlastnost | Hodnota |
| --- | --- |
| Min. provozní teplota | Min. provozní teplota
-10 °C |
| Max. provozní teplota | Max. provozní teplota
60 °C |
| Počet analogových vstupů | Počet analogových vstupů
4 |
| Počet digitálních vstupů | Počet digitálních vstupů
4 |
| Počet digitálních vstupů/výstupů | Počet digitálních vstupů/výstupů
4 |
| Počet portů LAN | Počet portů LAN
2 |

## Soubory ke stažení

* [Katalog ioLogik_E1200_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/ioLogik_E1200_Series_ELVAC15.pdf)
* [Manual ioLogik_E1200_Series_Users_Manual_v11_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/ioLogik_E1200_Series_Users_Manual_v11_ELVAC15.pdf)
