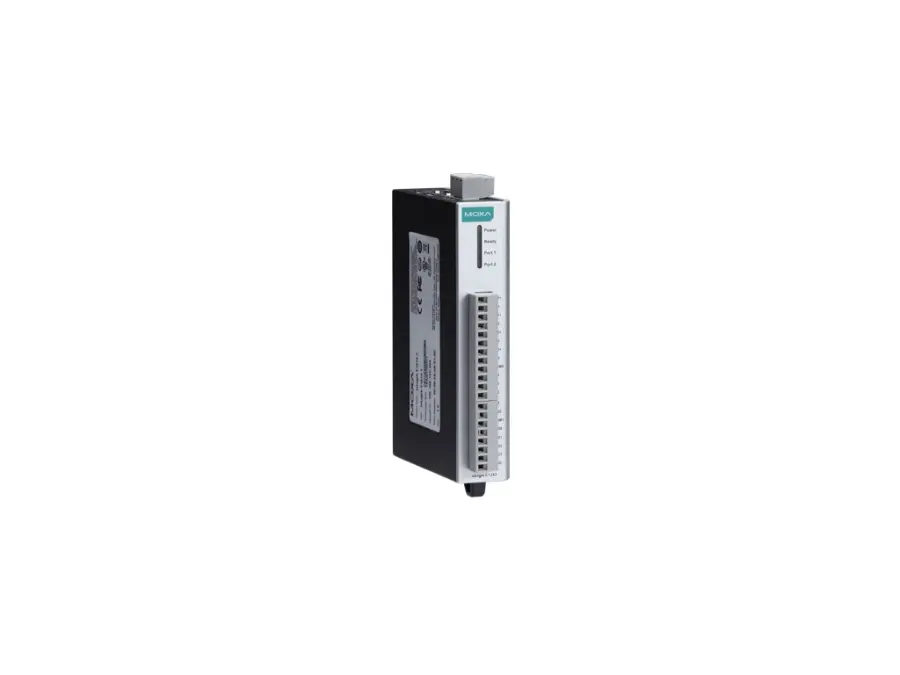

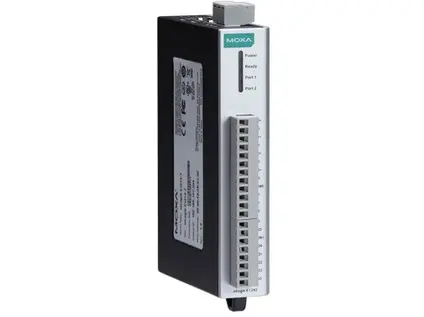

# ioLogik E1260

I/O module, LAN: 2, 1 MAC address (Ethernet bypass), Protocols: Modbus TCP Server (Slave) Moxa AOPC (Active Tag) MXIO Lib, Temp: -10 to 60°C (14 to 140°F), Power: 1

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 200412025910 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

I/O module – Universal I/O, 6 RTDs, -10 to 60°C operating temperatureInput/Output InterfaceRTD Channels: 6Isolation: 3k VDC or 2k VrmsButtons: Reset buttonRTDsConnector: Screw-fastened Euroblock terminalSensor Type: PT1000 (-200 to 350°C) PT50, PT100, PT200, PT500 (-200 to 850°C)Resistance Type: 310, 620, 1250, and 2200 ohmsInput Connection: 2- or 3-wireSampling Rate: 12 samples/sec per module (shared between up to 6 channels) If N channels are enabled, the sampling rate for each enabled channel = 12/N samples/sec.Resolution: 0.1°C or 0.1 ohmsAccuracy: ±0.1% FSR @ 25°C ±0.3% FSR @ -10 to 60°CInput Impedance: 625 kilo-ohms (min.)Ethernet Interface10/100BaseT(X) Ports (RJ45 connector): 2, 1 MAC address (Ethernet bypass)Magnetic Isolation Protection: 1.5 kV (built-in)Ethernet Software FeaturesConfiguration Options: Web Console (HTTP) Windows Utility (ioSearch) MCC ToolIndustrial Protocols: Modbus TCP Server (Slave) Moxa AOPC (Active Tag) MXIO Library EtherNet/IP AdapterManagement: RESTful API SNMPv1/v2c SNMPv1 Trap HTTP DHCP Client BOOTP IPv4 TCP/IP UDPMIB: Device Settings MIBSecurity: Access control listSecurity FunctionsAuthentication: Local databaseLED InterfaceLED Indicators: Power, Ready, Port 1, Port 2Modbus TCPFunctions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23Mode: Server (Slave)Max. No. of Client Connections: 10EtherNet/IPMode: AdapterMax. No. of Scanner Connections: 9 (for read-only), 1 (for read/write)Power ParametersPower Connector: Screw-fastened Euroblock terminalNo. of Power Inputs: 1Input Voltage: 12 to 36 VDCPower Consumption: 110 mA @ 24 VDCPhysical CharacteristicsHousing: PlasticDimensions: 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)Weight: 200 g (0.44 lb)Installation: DIN-rail mounting Wall mountingWiring: I/O cable, 16 to 26 AWG Power cable, 12 to 24 AWGEnvironmental LimitsOperating Temperature: -10 to 60°C (14 to 140°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Altitude: 4000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.Standards and CertificationsEMC: EN 55032/24 EN 61000-6-2/-6-4EMI: CISPR 32, FCC Part 15B Class AEMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMFHazardous Locations: ATEX Class I Division 2Safety: UL 508Shock: IEC 60068-2-27Freefall: IEC 60068-2-32

## Technická specifikace

| Vlastnost | Hodnota |
| --- | --- |
| Min. provozní teplota | Min. provozní teplota
-10 °C |
| Max. provozní teplota | Max. provozní teplota
60 °C |
| Počet portů LAN | Počet portů LAN
2 |

## Soubory ke stažení

* [Katalog ioLogik_E1200_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/ioLogik_E1200_Series_ELVAC15.pdf)
* [Manual ioLogik_E1200_Series_Users_Manual_v11_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/ioLogik_E1200_Series_Users_Manual_v11_ELVAC15.pdf)
