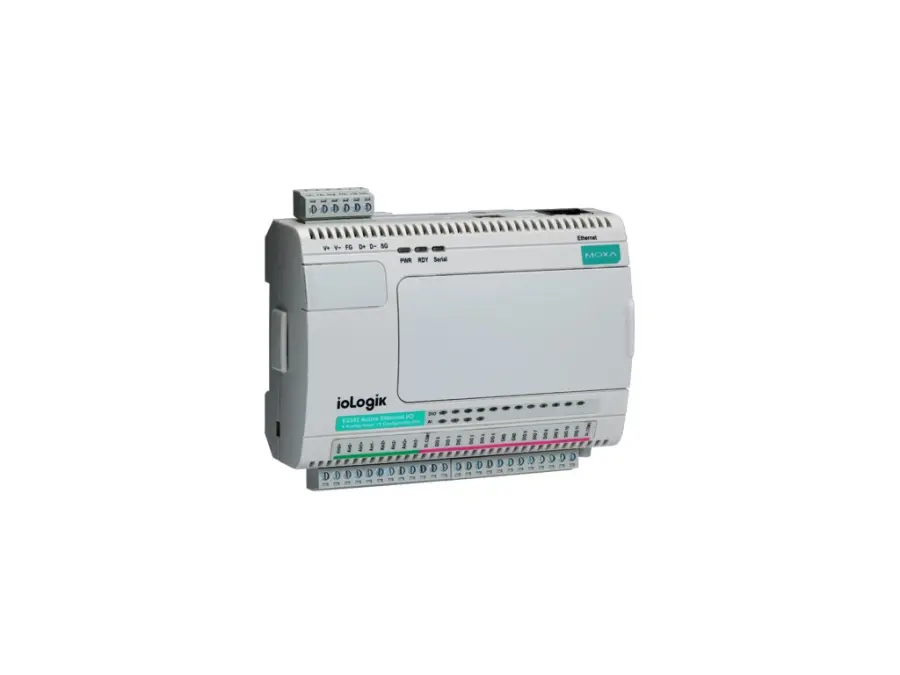

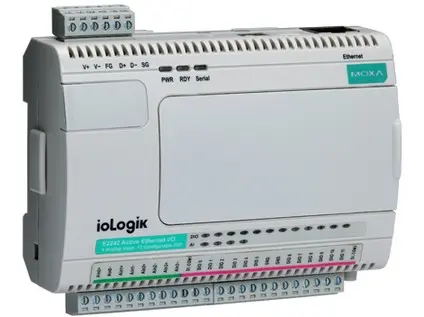

# ioLogik E2242-T

Serial communication device, Serial: RS-485, LAN: Click&Go, Protocols: Modbus TCP Server (Slave), SNMPv1/v2c/v3, SNMPv1 Trap, Mo, Temp: -40 to 75°C (-40 to 167°F), Power: 1

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 200412022017 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Serial communication device – Universal controller, 4 AIs, 12 DIOs, Click&Go, -40 to 75°C operating temperatureControl LogicLanguage: Click&GoInput/Output InterfaceConfigurable DIO Channels (by software): 12Analog Input Channels: 4Buttons: Reset buttonRotary Switch: 0 to 9Isolation: 3k VDC or 2k VrmsDigital OutputsConnector: Screw-fastened Euroblock terminalI/O Type: SinkI/O Mode: DO or pulse outputCurrent Rating: 200 mA per channelPulse Output Frequency: 1 kHzDIO Output Leakage Current: 4.0 mA @ 24 VDCOver-Current Protection: 0.65 A per channel @ 25°COver-Temperature Shutdown: 175°C (min.)Over-Voltage Protection: 45 VDC (typical)Analog InputsConnector: Screw-fastened Euroblock terminalI/O Mode: Voltage/CurrentI/O Type: DifferentialResolution: 16 bitsInput Range: 0 to 150 mV ±500 mV 0 to 500 mV ±5 V ±10 V 0 to 20 mA 4 to 20 mAAccuracy: ±0.1% FSR @ 25°C ±0.3% FSR @ -10 to 60°C ±0.5% FSR @ -40 to 75°CSampling Rate: All channels: 32 samples/sec Per channel: 8 samples/sec Single channel: 100 samples/secBuilt-in Resistor for Current Input: 120 ohmsInput Impedance: 200 kilo-ohms (min.)Over-Voltage Protection: -25 to +30 VDC (power on) -35 to +35 VDC (power off)LED InterfaceLED Indicators: PWR, RDY, Serial, I/O StatusEthernet Interface10/100BaseT(X) Ports (RJ45 connector): 1Magnetic Isolation Protection: 1.5 kV (built-in)Ethernet Software FeaturesConfiguration Options: Windows Utility (ioAdmin), Web Console (HTTP)Industrial Protocols: Modbus TCP Server (Slave), SNMPv1/v2c/v3, SNMPv1 Trap, Moxa AOPC (Active Tag), MXIO Library, CGI commandsManagement: BOOTP, IPv4, SMTP, DHCP Client, HTTP, TCP/IPMIB: Device Settings MIBTime Management: SNTPSecurity FunctionsAuthentication: Local databaseEncryption: HMACSecurity Protocols: SNMPv3Modbus TCPFunctions Supported: 1, 2, 3, 4, 5, 6, 15, 16Mode: Server (Slave)Serial InterfaceConnector: Terminal blockSerial Standards: RS-485No. of Ports: 1Baudrate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bpsParity: NoneData Bits: 8Stop Bits: 1Flow Control: NoneSerial SignalsRS-485-2w: Data+, Data-, GNDSerial Software FeaturesIndustrial Protocols: Modbus RTU MasterPlatformReal-time Clock (RTC): Real-time clock with battery backupPower ParametersPower Connector: Screw-fastened Euroblock terminalNo. of Power Inputs: 1Input Voltage: 12

## Technická specifikace

| Vlastnost | Hodnota |
| --- | --- |
| Min. provozní teplota | Min. provozní teplota
-40 °C |
| Max. provozní teplota | Max. provozní teplota
75 °C |
| Počet analogových vstupů | Počet analogových vstupů
4 |
| Počet digitálních vstupů/výstupů | Počet digitálních vstupů/výstupů
12 |
| Počet portů LAN | Počet portů LAN
1 |
| Interní logika | Interní logika
Ano |

## Soubory ke stažení

* [Katalog ioLogik_E2200_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/ioLogik_E2200_Series_ELVAC15.pdf)
* [Manual ioLogik_E2200_Users_Manual_v6_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/ioLogik_E2200_Users_Manual_v6_ELVAC15.pdf)
