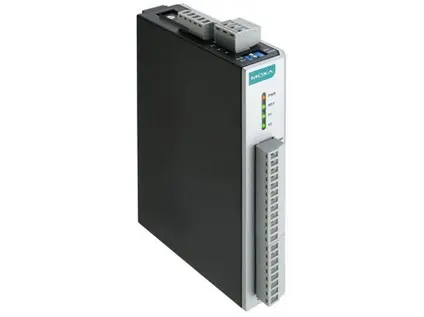

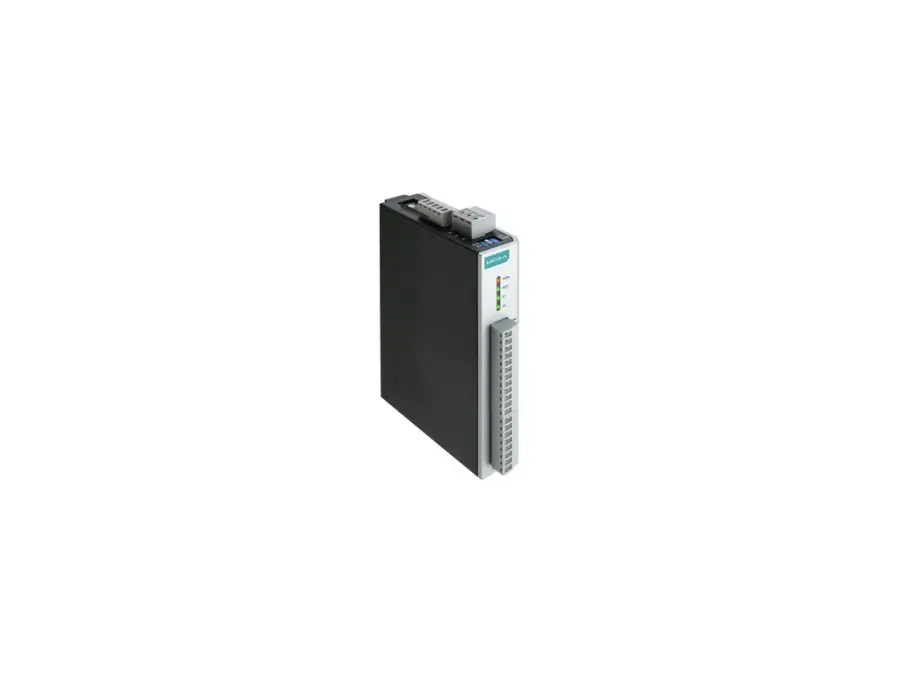

ioLogik R1214-T

Serial communication device – Universal I/O, 6 DIs, 6 relays, -40 to 85°C operating temperature

Input/Output Interface

• Buttons: Reset button
• Digital Input Channels: 6
• Isolation: 3k VDC or 2k Vrms
• Relay Channels: 6

Digital Inputs

• Connector: Screw-fastened Euroblock terminal
• Counter Frequency: 2.5 kHz
• Digital Filtering Time Interval: Software configurable
• Dry Contact: On: short to GND Off: open
• I/O Mode: DI or event counter
• Points per COM: 6 channels
• Sensor Type: Dry contact Wet contact (NPN or PNP)
• Wet Contact (DI to COM): On: 10 to 30 VDC Off: 0 to 3 VDC

Relays

• Breakdown Voltage: 500 VAC
• Connector: Screw-fastened Euroblock terminal
• Contact Current Rating: Resistive load: 5 A @ 30 VDC, 250 VAC, 110 VAC
• Contact Resistance: 100 milli-ohms (max.)
• Electrical Endurance: 100,000 operations @ 5 A resistive load
• Initial Insulation Resistance: 1,000 mega-ohms (min.) @ 500 VDC
• Mechanical Endurance: 5,000,000 operations
• Pulse Output Frequency: 0.3 Hz at rated load
• Type: Form A (N.O.) power relay
• Note: Ambient humidity must be non-condensing and remain between 5 and 95%. The relays may malfunction when operating in high condensation environments below 0°C.

LED Interface

• LED Indicators: PWR, RDY, P1, P2

Serial Interface

• Baudrate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 112800, 921600 bps
• Connector: Terminal block
• No. of Ports: 2
• Parity: None Even Odd
• Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
• Serial Standards: RS-485
• Stop Bits: 1, 2
• Surge: 1 kV
• ESD: 15 kV
• Data Bits: 8

Serial Signals

• RS-485-2w: Data+, Data-, GND

Serial Software Features

• Industrial Protocols: Modbus RTU Slave

Power Parameters

• Power Connector: Screw-fastened Euroblock terminal
• No. of Power Inputs: 1
• Input Voltage: 12 to 48 VDC
• Power Consumption: 207 mA @ 24 VDC

Physical Characteristics

• Housing: Plastic
• Dimensions: 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)
• Weight: 200 g (0.44 lb)
• Installation: DIN-rail mounting Wall mounting
• Wiring: I/O cable, 16 to 26 AWG Power cable, 12 to 24 AWG

Environmental Limits

• Operating Temperature: -40 to 85°C (-40 to 185°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Altitude: 2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

Standards and Certifications

• EMC: EN 55032/24
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz
