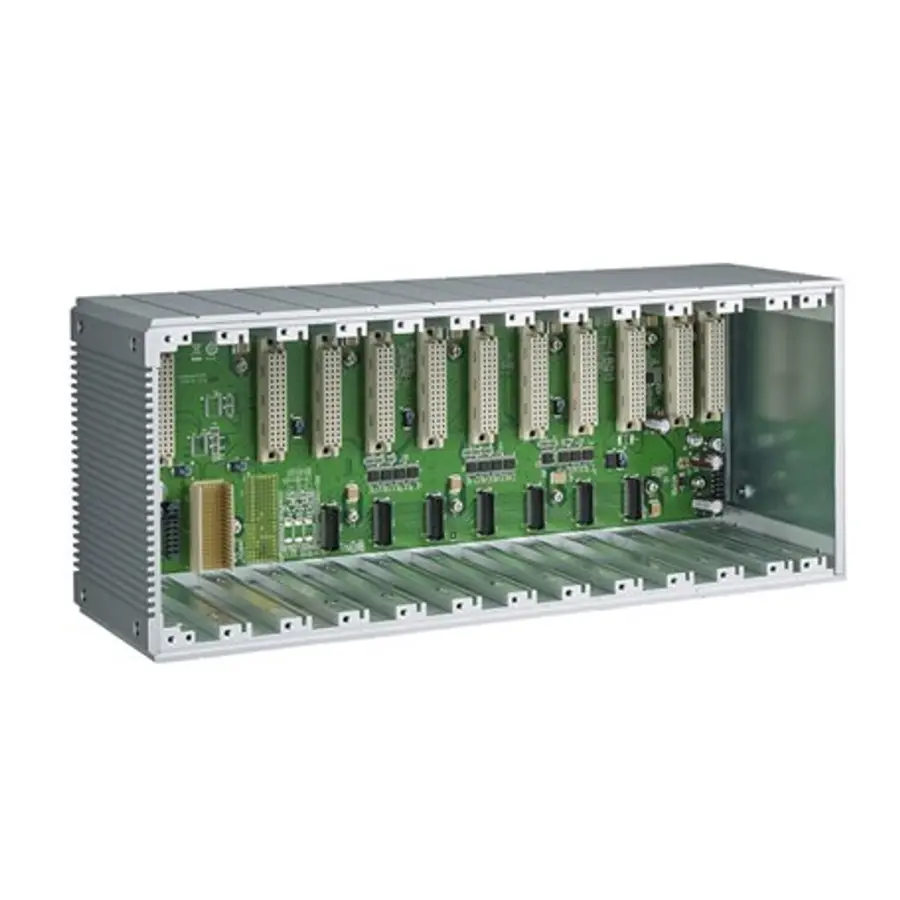

ioPAC 8600-BM009-T

Industrial edge connectivity device – Module for the ioPAC 8600 Series, 9 slots, -40 to 75°C operating temperature

Security Functions

• Authentication: Local database
• Encryption: AES-256 HMAC RSA-1024 SHA-1 SHA-256
• Security Protocols: SNMPv3 SSHv2

Physical Characteristics

• Slots: 9
• Housing: Metal
• Dimensions: 324.8 x 133.35 x 100 mm (12.79 x 5.25 x 3.94 in)
• Weight: 3,690 g (8.14 lb)
• Installation: Wall mounting (with optional kit)

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Altitude: 2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

Standards and Certifications

• EMC: EN 55032/35 EN 61000-6-2/-6-4
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
• Railway: EN 50121-4 EN 50155
• Safety: UL 508
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6

MTBF

• Time: ioPAC 8600-CPU30 models (HW Rev 1.0.1): 1,358,656 hrsioPAC 8600-CPU30 models (HW Rev 1.1.0): 1,273,872 hrsioPAC 8600-PW10-30W-T: 1,341,777 hrsioPAC 8600-BM005-T: 2,678,587 hrsioPAC 8600-BM009-T: 1,350,621 hrsioPAC 8600-BM012-T: 1,238,479 hrs
• Standards: Telcordia Standard SR-332

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
