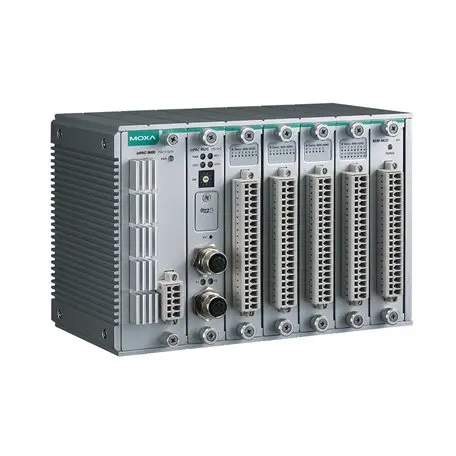

# ioPAC 8600-CPU30-RJ45-IEC-T

Serial communication device, Serial: RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1), LAN: RJ45 version: 2, 1 MAC address (Ethernet bypass) or 2 MAC, Protocols: Modbus TCP Client (Master) Modbus T

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 200822023600 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Serial communication device – Rugged controller, 1 GHz CPU, 2-port RJ45 Ethernet, IEC 61131-3, -40 to 75°C operating temperatureComputerCPU: 32-bit Cortex-A8 1 GHz CPUOS: Real-time Linux (PREEMPT_RT)Clock: Real-time clock with capacitor backupMemoryeMMC: 4 GB (1.7 GB reserved for user) for HW Rev. 1.0.18 GB (5.2 GB reserved for user) for HW Rev. 1.1.0SDRAM: 512 MBSPI-NVRAM: 128 KBmicroSD Slot: Up to 32 GB (SD 2.0 compatible) For units operating in extreme temperatures, industrial-grade, wide-temperature microSD cards are required.Control LogicLanguage: IEC 61131-3Ethernet Interface10/100BaseT(X) Ports (RJ45 connector): RJ45 version: 2, 1 MAC address (Ethernet bypass) or 2 MAC addresses, jumper selectableMagnetic Isolation Protection: 1.5 kV (built-in)Ethernet Software FeaturesConfiguration Options: vIndustrial Protocols: Modbus TCP Client (Master) Modbus TCP Server (Slave) Moxa AOPC (Active Tag) SNMPv1/v2c Trap SNMPv1/v2c/v3Management: BOOTP IPv4 SMTP UDPSecurity: SSHTime Management: SNTPSecurity FunctionsAuthentication: Local databaseEncryption: AES-256 HMAC RSA-1024 SHA-1 SHA-256Security Protocols: SNMPv3 SSHv2Serial InterfaceConsole Port: RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)Modbus RTU/ASCIIFunctions Supported: 1, 2, 3, 4, 5, 6, 15, 16Mode: Master, SlaveModbus TCPFunctions Supported: 1, 2, 3, 4, 5, 6, 15, 16Mode: Master, SlavePower ParametersPower Consumption: 223 mA @ 24 VDCPhysical CharacteristicsHousing: MetalWeight: 148 g (0.33 lb)Environmental LimitsOperating Temperature: -40 to 75°C (-40 to 167°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Altitude: 2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.Standards and CertificationsEMC: EN 55032/35 EN 61000-6-2/-6-4EMI: CISPR 32, FCC Part 15B Class AEMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMFRailway: EN 50121-4 EN 50155Safety: UL 508Shock: IEC 60068-2-27Vibration: IEC 60068-2-6MTBFTime: ioPAC 8600-CPU30 models (HW Rev 1.0.1): 1,358,656 hrsioPAC 8600-CPU30 models (HW Rev 1.1.0): 1,273,872 hrsioPAC 8600-PW10-30W-T: 1,341,777 hrsioPAC 8600-BM005-T: 2,678,587 hrsioPAC 8600-BM009-T: 1,350,621 hrsioPAC 8600-BM012-T: 1,238,479 hrsStandards: Telcordia Standard SR-332WarrantyWarranty Period: 5 yearsDetails: See
