Description

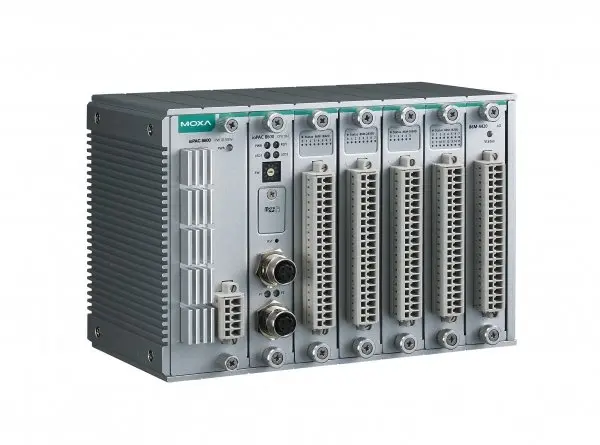

Industrial edge connectivity device – Module for the ioPAC 8600 Series, 24-110 VDC, 30 W, dual-power inputs, -40 to 75°C operating temperature
Security Functions
- Authentication: Local database
- Encryption: AES-256 HMAC RSA-1024 SHA-1 SHA-256
- Security Protocols: SNMPv3 SSHv2
Power Parameters
- Power Connector: Spring-type Euroblock terminal
- No. of Power Inputs: 2
- Input Voltage: 24 to 110 VDC
- Galvanic Isolation: 3k VDC
Physical Characteristics
- Housing: Metal
- Weight: 370 g (0.82 lb)
- Wiring: Power cable, 14 to 28 AWG
Environmental Limits
- Operating Temperature: -40 to 75°C (-40 to 167°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Altitude: 2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
- EMC: EN 55032/35 EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Railway: EN 50121-4 EN 50155
- Safety: UL 508
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
MTBF
- Time: ioPAC 8600-CPU30 models (HW Rev 1.0.1): 1,358,656 hrsioPAC 8600-CPU30 models (HW Rev 1.1.0): 1,273,872 hrsioPAC 8600-PW10-30W-T: 1,341,777 hrsioPAC 8600-BM005-T: 2,678,587 hrsioPAC 8600-BM009-T: 1,350,621 hrsioPAC 8600-BM012-T: 1,238,479 hrs
- Standards: Telcordia Standard SR-332
