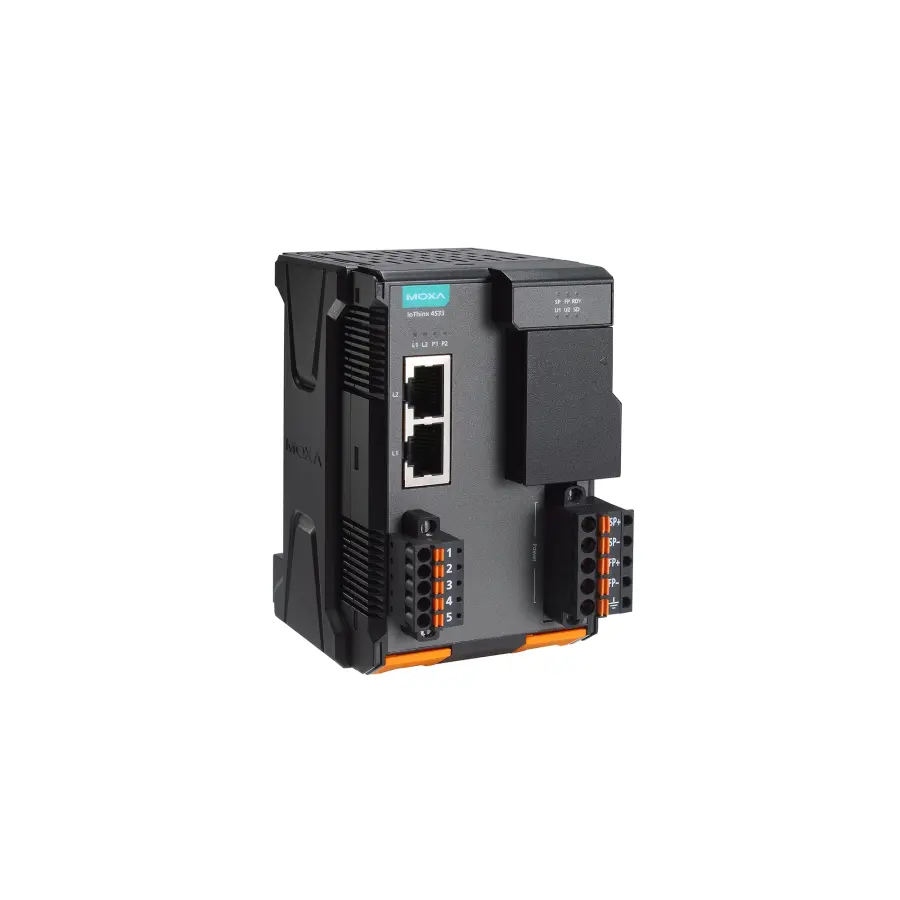

ioThinx 4533-LX-T

Serial communication device – Advanced modular controller with built-in serial port, dual-core 1 GHz CPU, Linux, -40 to 75°C operating temperature

Computer

• CPU: Armv7 Cortex-A7 dual-core 1 GHz
• OS: Moxa Industrial Linux 3 (Debian 11, kernel 5.10)See www.moxa.com/MIL
• Clock: Real-time clock with capacitor backup
• DRAM: 2 GB DDR3L
• MRAM: 128 kB
• Storage Pre-installed: 8 GB eMMC (6 GB reserved for the user)
• Storage Slot: microSD Slots x 1 (up to 32 GB)
• Expansion Slots: Up to 64 (with 45MR I/O modules)Up to 5 (with 45ML communication modules)

Control Logic

• Language: C/C++ Python

Computer Interface

• Buttons: Reset button

Input/Output Interface

• Rotary Switch: 0 to 9

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): Auto negotiation speed
• Magnetic Isolation Protection: 1.5 kV (built-in)

Security Functions

• Authentication: Local database
• Encryption: AES-256 SHA-256
• Security Protocols: SSHv2
• Hardware-based Security: TPM 2.0

Serial Interface

• Console Port: RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
• No. of Ports: 1 x RS-232/422 or 2 x RS-485-2w
• Connector: Spring-type Euroblock terminal
• Serial Standards: RS-232/422/485 (software-selectable)
• Baudrate: 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
• Flow Control: RTS/CTS
• Parity: None, Even, Odd
• Stop Bits: 1, 2
• Data Bits: 7, 8

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-2w: Data+, Data-, GND

System Power Parameters

• Power Connector: Spring-type Euroblock terminal
• No. of Power Inputs: 1
• Input Voltage: 12 to 48 VDC
• Power Consumption: 1940 mA @ 12 VDC
• Over-Current Protection: 3 A @ 25°C
• Over-Voltage Protection: 55 VDC
• Output Current: 1 A (max.)

Field Power Parameters

• Power Connector: Spring-type Euroblock terminal
• No. of Power Inputs: 1
• Input Voltage: 12/24 VDC
• Over-current Protection: 5 A @ 25°C
• Over-voltage Protection: 33 VDC
• Output Current: 2 A (max.)

Physical Characteristics

• Wiring: Serial cable, 16 to 28 AWG Power cable, 12 to 26 AWG
• Strip Length: Serial cable, 9 to 10 mm Power cable, 12 to 13 mm
• Housing: Plastic
• Dimensions: 60.3 x 99 x 75 mm (2.37 x 3.9 x 2.96 in)
• Weight: 207.7 g (0.457 lb)
• Installation: DIN-rail mounting

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
• Safety: UL 61010-2-201
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6
• Hazardous Locations: Class I Division 2 ATEX

MTBF

• Time: 954,606 hrs
• Standards: Telcordia Standard SR-332

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Altitude: Up to 4000 m

Declaration

• Green Product: RoHS, CRoHS, WEEE

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
