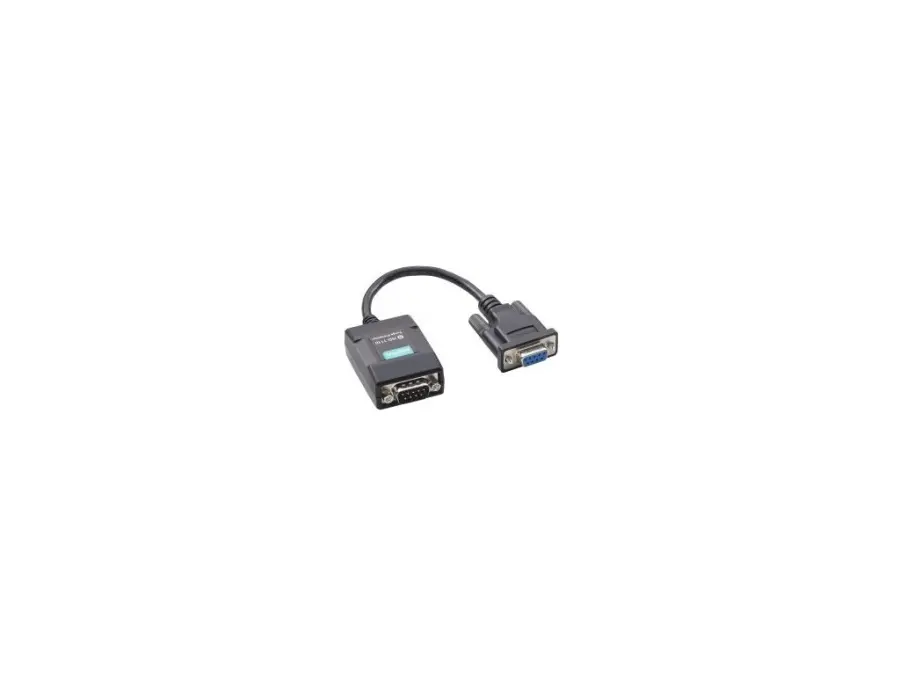

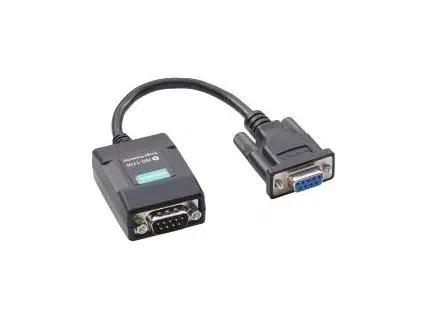

ISD-1110-T

Accessory – 7 data line entry surge protector, RS-232, 4 kV surge protection, -40 to 85°C operating temperature

Serial Interface

• Connector: DB9 male
• Serial Standards: RS-232
• Baudrate: 50 bps to 921.6 kbps

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Physical Characteristics

• Housing: Plastic
• IP Rating: IP30
• Dimensions: 53 x 37 x 20.6 mm (2.01 x 1.46 x 0.81 in)
• Weight: Packaged: 119 g (0.26 lb) Product only: 58 g (0.13 lb)
• Installation: Desktop

Environmental Limits

• Operating Temperature: -40 to 85°C (-40 to 185°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMS: IEC 61000-4-5 Surge: Signal: 4 kV
• Environmental Testing: IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3
• Safety: EN 60950-1, IEC 60950-1
• Vibration: IEC 60068-2-6

MTBF

• Time: 62,642,538 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
