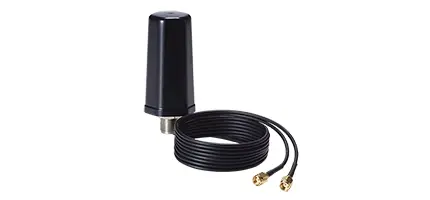

MAT-WDB-DA-RM-2-0203-1m

Antenna – 2.4/5 GHz, desktop antenna, 2/3 dBi, MIMO 2x2, RP-SMA-type (male), 1 m cable

Antenna Characteristics

• Frequency: 2.4 to 2.5, 4.9 to 5.85 GHz
• Antenna Type: MIMO 2x2 Omni-directional
• Typical Antenna Gain: 2/3 dBi
• Connector: RP-SMA (male)
• Impedance: 50 ohms
• Polarization: Linear Vertical
• HPBW/Horizontal: 360/114°
• HPBW/Vertical: 75/54°
• V.S.W.R.: 2:1 max.
• Power Handling: 2 W (max.)

Physical Characteristics

• Weight: 156 g (0.34 lb)
• Length (including RF cable): 1094.3 mm (43.08 in)
• IP Rating: IP55
• Radome Color: Black
• Radome Material: PC-1250G
• Installation: Desktop Mount
• Cable: RG-174
• Cable Length: 1 m

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
• Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)

Warranty

• Warranty Period: 1 year
• Details: See www.moxa.com/warranty
