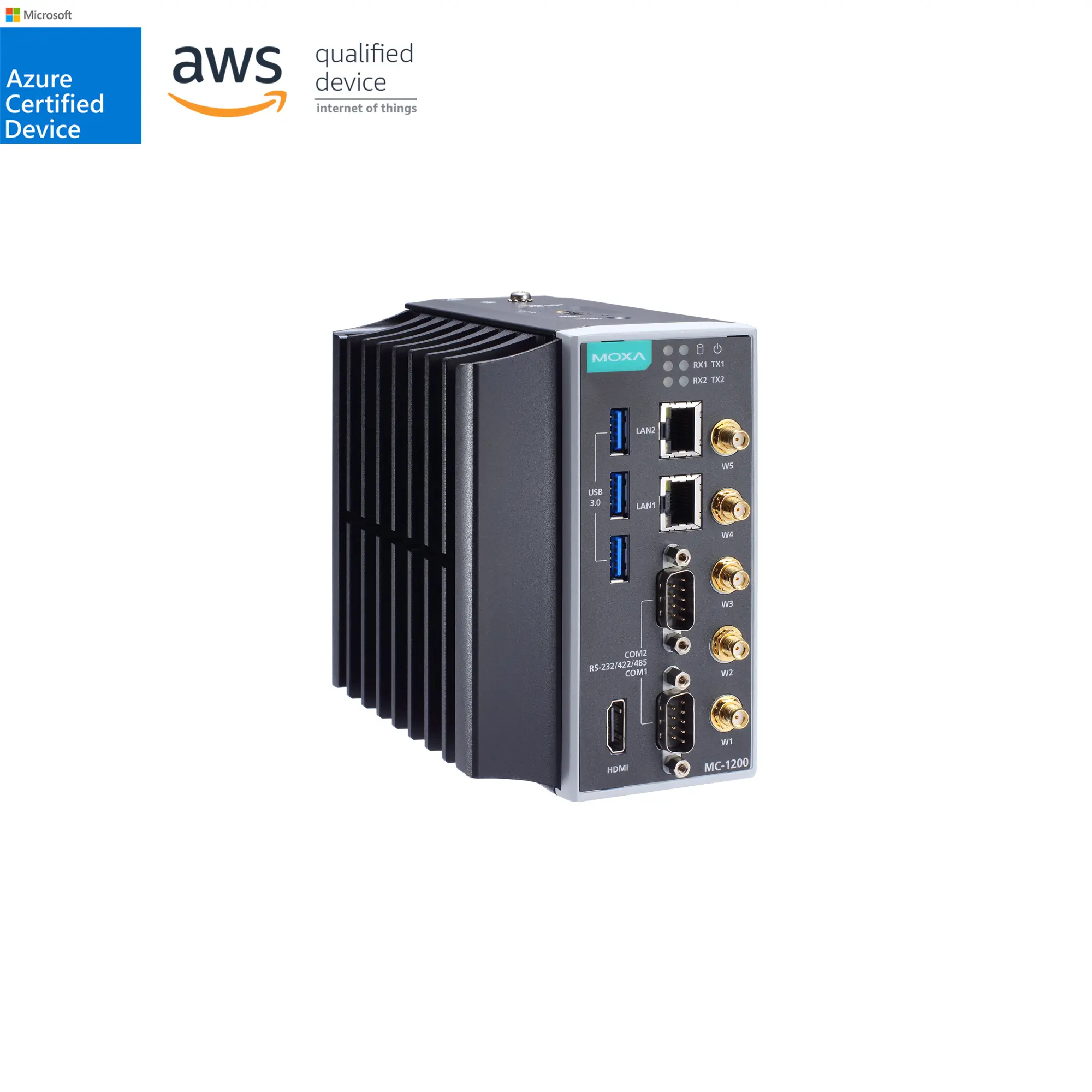

# MC-1220-KL5-T-S

Industrial computer, CPU: Intel® Core™ i5-7300U Processor (3M Cache, up to 3.50 GHz), RAM: SODIMM DDR4 slot x 2, up to 32 GB max., Storage: mSATA slots x 1, SATA 3.0, internal mini-PCIe socket, OS:

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 101550122530 |
| Warranty | 36 |
| Warranty for companies | 36 |
| Brand | MOXA |

## Podrobný popis

Industrial computer – Intel® Core™ i5-7300U 2C/4T 2.6 GHz computer with 8 GB RAM, 2 Gigabit Ethernet ports, 2 RS/232/422/485 3-in-1 serial ports, 3 USB 3.0 ports, 3 Mini PCIe expansion slots, 1 HDMI port, TPM 2.0, 9 to 36 VDC power, -40 to 70°C operating temperatureComputerCPU: Intel® Core™ i5-7300U Processor (3M Cache, up to 3.50 GHz)Storage Slot: mSATA slots x 1, SATA 3.0, internal mini-PCIe socketSystem Memory Slot: SODIMM DDR4 slot x 2, up to 32 GB max.Supported OS: Linux Debian 9, 64-bit, kernel 4.9 (optional via CTOS) Windows 10 Enterprise LTSC 1809 64-bit (optional via CTOS)Graphics Controller: Intel® HD Graphics 620Computer InterfaceVideo Input: HDMI x 1, up to 3840 x 2160 resolution at 30 HzUSB 3.0: USB 3.0 hosts x 3, type-A connectorsButtons: Reset buttonSerial InterfaceConnector: DB9 maleSerial Standards: RS-232/422/485 (software selectable)Serial Ports: 2 x RS-232/422/485Flow Control: RTS/CTS, XON/XOFFBaudrate: 50 bps to 115.2 kbpsESD Protection: 4 kV contact, 8 kV airEthernet InterfaceMagnetic Isolation Protection: 1.5 kV (built-in)10/100/1000BaseT(X) Ports (RJ45 connector): 2LED IndicatorsSystem: Power x 1Serial: 2 per port (Tx, Rx)Serial SignalsRS-232: TxD, RxD, RTS, CTS, GNDRS-485-4w: Tx+, Tx-, Rx+, Rx-, GNDRS-422: Tx+, Tx-, Rx+, Rx-, GNDRS-485-2w: Data+, Data-, GNDPhysical CharacteristicsInstallation: Wall mounting (with optional kit), DIN-rail mountingHousing: MetalDimensions: 134 x 60.4 x 120 mm (5.28 x 2.38 x 4.72 in)Weight: Product only: 1.40 kg (0.63 lb)DeclarationGreen Product: RoHS, CRoHS, WEEEPower ParametersPower Button: ON/OFF (rear panel) Reset buttonInput Voltage: 9 to 36 VDCInput Current: 8 A @ 9 VDC, 2 A @ 36 VDCPower Consumption: 72 WEnvironmental LimitsOperating Temperature: -40 to 70°C (-40 to 158°F)Storage Temperature: -40 to 75°C (-40 to 167°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Shock: IEC 60068-2-27Standards and CertificationsSafety: UL 60950-1, UL 62368-1, EN 60950-1, EN 62368-1EMC: EN 55032/35, CISPR 32, FCC Part 15B Class AHazardous Locations: ATEX Zone 2, IECEx Zone 2, Class I Division 2ReliabilityAlert Tools: Built-in RTC (real-time clock) with lithium battery backupMTBFTime: 510,913 hrsStandards: Telcordia (Bellcore), GBWarrantyWarranty Period: 3 yearsDetails: See www.moxa.com/warranty

## Soubory ke stažení

* [Katalog V2422_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/V2422_Series_ELVAC15.pdf)
* [Manual V2406_2422_2426_HW_Manual_v3_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/V2406_2422_2426_HW_Manual_v3_ELVAC15.pdf)
