MC-1220-WLAN11-AC

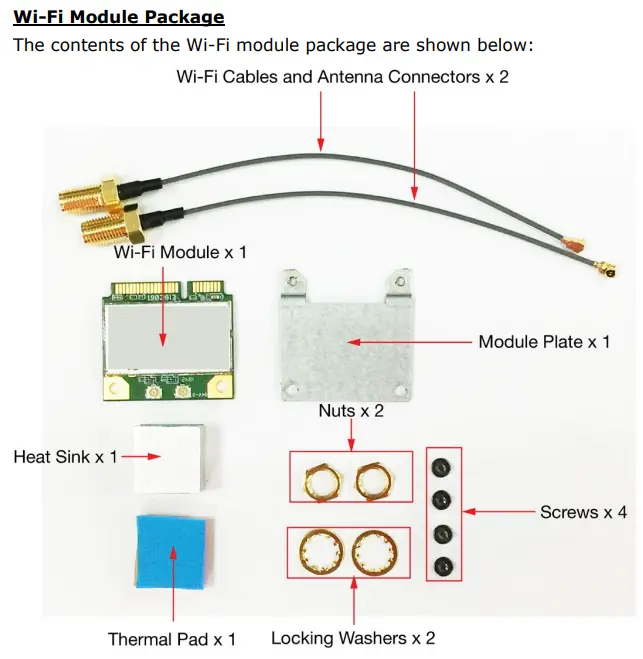

Industrial computer – Wireless package for the MC-1200 Series with WPEQ-261ACNI(BT) 802.11ac/a/b/g/n Wi-Fi module and mPCIe module

Computer

• Storage Slot: mSATA slots x 1, SATA 3.0, internal mini-PCIe socket
• System Memory Slot: SODIMM DDR4 slot x 2, up to 32 GB max.
• Supported OS: Linux Debian 9, 64-bit, kernel 4.9 (optional via CTOS) Windows 10 Enterprise LTSC 1809 64-bit (optional via CTOS)

Computer Interface

• Video Input: HDMI x 1, up to 3840 x 2160 resolution at 30 Hz
• USB 3.0: USB 3.0 hosts x 3, type-A connectors
• Buttons: Reset button

Serial Interface

• Connector: DB9 male
• Serial Standards: RS-232/422/485 (software selectable)
• Serial Ports: 2 x RS-232/422/485
• Flow Control: RTS/CTS, XON/XOFF
• Baudrate: 50 bps to 115.2 kbps
• ESD Protection: 4 kV contact, 8 kV air

Ethernet Interface

• Magnetic Isolation Protection: 1.5 kV (built-in)
• 10/100/1000BaseT(X) Ports (RJ45 connector): 2

LED Indicators

• System: Power x 1
• Serial: 2 per port (Tx, Rx)

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, GND
• RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-2w: Data+, Data-, GND

Physical Characteristics

• Installation: Wall mounting (with optional kit), DIN-rail mounting
• Housing: Metal
• Dimensions: 134 x 60.4 x 120 mm (5.28 x 2.38 x 4.72 in)
• Weight: Product only: 1.40 kg (0.63 lb)

Declaration

• Green Product: RoHS, CRoHS, WEEE

Power Parameters

• Power Button: ON/OFF (rear panel) Reset button
• Input Voltage: 9 to 36 VDC
• Input Current: 8 A @ 9 VDC, 2 A @ 36 VDC
• Power Consumption: 72 W

Environmental Limits

• Operating Temperature: -40 to 70°C (-40 to 158°F)
• Storage Temperature: -40 to 75°C (-40 to 167°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Shock: IEC 60068-2-27

Standards and Certifications

• Safety: UL 60950-1, UL 62368-1, EN 60950-1, EN 62368-1
• EMC: EN 55032/35, CISPR 32, FCC Part 15B Class A
• Hazardous Locations: ATEX Zone 2, IECEx Zone 2, Class I Division 2

Reliability

• Alert Tools: Built-in RTC (real-time clock) with lithium battery backup

MTBF

• Time: 510,913 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 3 years
• Details: See www.moxa.com/warranty
