Description

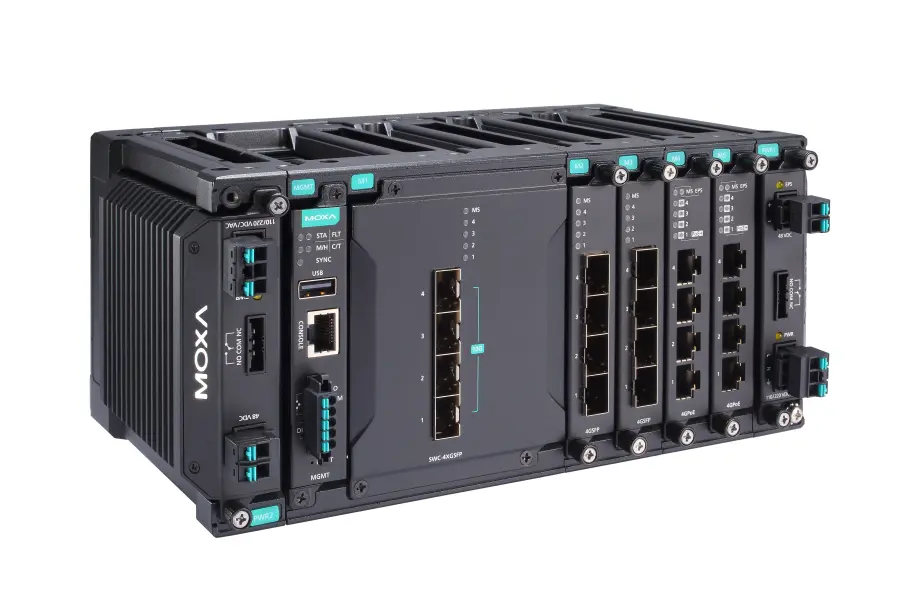

Industrial Layer 3 Managed PoE Ethernet switch – Layer 3 full Gigabit modular managed Ethernet switch with 4 fixed 10GbE SFP+ slots, 4 slots for optional 4-port GE/FE modules, 2 slots for isolated power modules, up to 16 Gigabit Ethernet ports, -40 to 75°C operating temperature
Ethernet Interface
- Pre-installed Modules: 4 embedded 10Gigabit ports
- Module: 4 slots for optional FE/GE modules
- Slot Combination: See the LM-7000H module series datasheet for more information.Note: The required power module depends on the choice of LM-7000H module. Refer to the following power/module combination requirements.LM-7000H non-PoE modules:Any power moduleLM-7000H PoE modules:PWR-HV-P48-A, PWR-LV-P48-A only
- Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for flow control IEEE 802.3ad for Port Trunk with LACP IEEE 802.1Q for VLAN Tagging IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1X for authentication
Ethernet Software Features
- Management: IPv4 ARP Back Pressure Flow Control DHCP Relay Agent (Option 82) Fiber check Flow control RARP LLDP Linkup Delay Port Mirroring (SPAN, RSPAN) SMTP SNMP Trap SNMP Inform SNMPv1/v2c/v3 RMON, TFTP, SFTP, HTTP, HTTPS Telnet Syslog Private MIB
- Filter: GMRP, GVRP, GARP 802.1Q VLAN IGMP Snooping v1/v2/v3 IGMP Querier
- Redundancy Protocols: STP RSTP Turbo Ring v2 Turbo Chain Ring Coupling Link Aggregation MRP MSTP Network Loop Protection MRP Interconnection Multiple Dual Homing Multiple Network Coupling Tracking
- Routing Redundancy: VRRP
- Security: Broadcast storm protection DHCP Snooping Dynamic ARP Inspection IP Source Guard MAC Authentication Bypass MAC Sticky HTTPS/SSL, SSH, RADIUS Rate Limit Trust access control Static Port Lock TACACS+ Login and Password Policy Secure Boot Access control list IEEE 802.1AE MAC security
- Time Management: SNTP IEEE 1588v2 PTP (hardware-based) Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017 NTP Server/Client NTP Authentication
- Protocols: IPv4 TCP/IP, UDP, ICMP, ARP RARP, TFTP, DNS, NTP Client 802.1X QoS HTTPS HTTP Telnet SMTP SNMPv1/v2c/v3 RMON Syslog VLAN Assignment
- Industrial Protocols: EtherNet/IP Modbus TCP PROFINET
- Unicast Routing: OSPF Static Route
- Multicast Routing: Multicast Local Route PIM-DM PIM-SM
- MIB: P-BRIDGE MIB Q-BRIDGE MIB IEEE8021-SPANNING-TREE-MIB IEEE8021-PAE-MIB IEEE8023-LAG-MIB LLDP-EXT-DOT1-MIB LLDP-EXT-DOT3-MIB SNMPv2-MIB, RMON, MIB Groups 1, 2, 3, 9
- Power Substation: GOOSE Check MMS 1588 PTP Power Profile IEC 61850-9-3 1588 PTP Power Profile C37.238-2017
Switch Properties
- MAC Table Size: 16 K
- Max. No. of VLANs: 256
- VLAN ID Range: VID 1 to 4094
- IGMP Groups: 1024
- Jumbo Frame Size: 9.216 KB
- Priority Queues: 8
- Packet Buffer Size: 12 Mbits
LED Interface
- LED Indicators: PWR, EPS, STATE, SYNC, FAULT, MSTR/HEAD, CPLR/TAIL
Serial Interface
- Console Port: RS-232 (RJ45)
USB Interface
- USB Connector: USB Type A
Input/Output Interface
- Digital Input Channels: 1 (On MGMT Module)
- Digital Inputs: +13 to +30 V for
