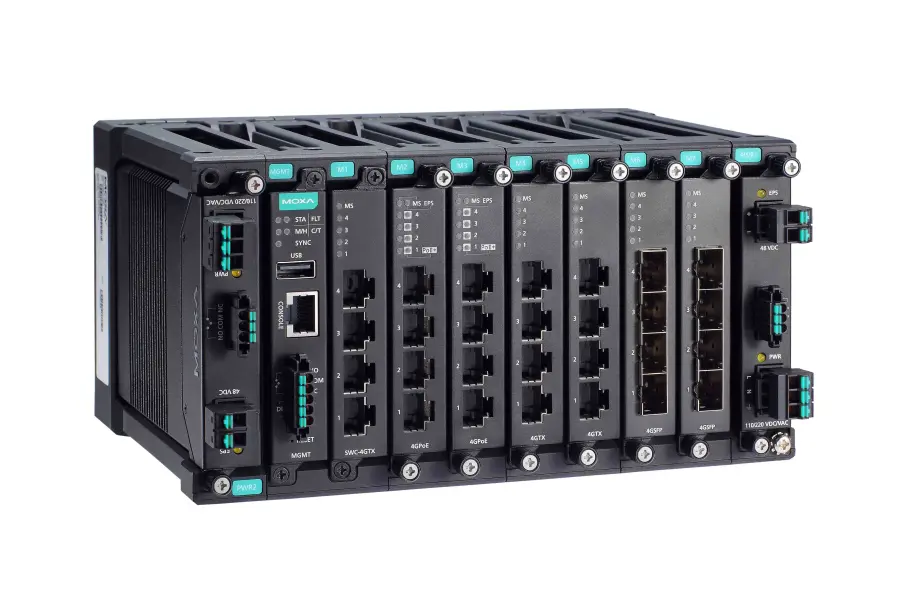

# MDS-G4028-L3

Industrial Layer 3 Managed PoE Ethernet switch, Ports: 4 embedded Gigabit ports, SFP: IPv4 Flow control Back Pressure Flow Control ARP DHCP Rel, PoE: See the LM-7000H module series datasheet for m

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180404114074 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial Layer 3 Managed PoE Ethernet switch – Layer 3 full Gigabit modular managed Ethernet switch with 4 fixed Gigabit Ethernet ports, 6 slots for optional 4-port GE/FE modules, 2 slots for isolated power modules, up to 28 Gigabit Ethernet ports, -10 to 60°C operating temperatureEthernet InterfacePre-installed Modules: 4 embedded Gigabit portsModule: 6 slots for optional FE/GE modulesSlot Combination: See the LM-7000H module series datasheet for more information.Note: The required power module depends on the choice of LM-7000H module. Refer to the following power/module combination requirements.LM-7000H non-PoE modules:Any power moduleLM-7000H PoE modules:PWR-HV-P48, PWR-LV-P48 onlyStandards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for flow control IEEE 802.3ad for Port Trunk with LACP IEEE 802.1Q for VLAN Tagging IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1X for authenticationEthernet Software FeaturesManagement: IPv4 Flow control Back Pressure Flow Control ARP DHCP Relay Agent (Option 82) Fiber check Port Mirroring (SPAN, RSPAN) RARP LLDP Linkup Delay SMTP SNMP Trap SNMP Inform SNMPv1/v2c/v3 RMON, TFTP, SFTP, HTTP, HTTPS Telnet Syslog Private MIB Loopback interfaceFilter: GMRP, GVRP, GARP 802.1Q VLAN IGMP Snooping v1/v2/v3 IGMP QuerierRedundancy Protocols: Link Aggregation MRP MRP Interconnection MSTP Multiple Dual Homing Multiple Network Coupling Network Loop Protection Ring Coupling RSTP STP Tracking Turbo Chain Turbo Ring v2Routing Redundancy: VRRPSecurity: Access control list Broadcast storm protection DHCP Snooping Dynamic ARP Inspection HTTPS/SSL IEEE 802.1AE MAC security IP Source Guard Login and Password Policy MAC authentication bypass MAC Sticky RADIUS Rate Limit SSH Static Port Lock TACACS+ Trust access controlTime Management: SNTP IEEE 1588v2 PTP (hardware-based) Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017 NTP Authentication NTP Server/ClientProtocols: 802.1X ARP, DNS, HTTP, HTTPS ICMP IPv4 NTP Client QoS RARP, RMON, SMTP SNMPv1/v2c/v3 Syslog TCP/IP Telnet TFTP, UDP, VLAN AssignmentIndustrial Protocols: EtherNet/IP Modbus TCP PROFINETUnicast Routing: OSPF Static RouteMulticast Routing: Multicast Local Route PIM-DM PIM-SMMIB: P-BRIDGE MIB Q-BRIDGE MIB IEEE8021-SPANNING-TREE-MIB IEEE8021-PAE-MIB IEEE8023-LAG-MIB LLDP-EXT-DOT1-MIB LLDP-EXT-DOT3-MIB SNMPv2-MIB, RMON, MIB Groups 1, 2, 3, 9Power Substation: 1588 PTP Power Profile C37.238-2017 1588 PTP Power Profile IEC 61850-9-3 GOOSE Check MMSSwitch PropertiesJumbo Frame Size: 9.216 KBMAC Table Size: 16 KMax. No. of VLANs: 256VLAN ID Range: VID 1 to 4094IGMP Groups: 1024Priority Queues: 8Packet Buffer Size: 12 MbitsLED InterfaceLED Indicators: PWR, EPS, STATE, SYNC, FAULT, MSTR/HEAD, CPLR/TAILSerial InterfaceConsole Port: RS-232 (RJ45)USB InterfaceUSB Connector: USB Type AInput/Output InterfaceDigital Input Channels: 1 (On MGMT Module)Digital Inputs: +13 to +30

## Soubory ke stažení

* [Katalog](https://www.elvac.eu/ipc/download/moxa/datasheet/mds-g4028-l3-series-datasheet-v1.4_2024.pdf)
