title: "MDS-G4028-L3-4XGS-T"
category: "Industrial Communication > Industrial Ethernet > Modular Ethernet Switches"
---

**Kategorie:** Industrial Communication > Industrial Ethernet > Modular Ethernet Switches

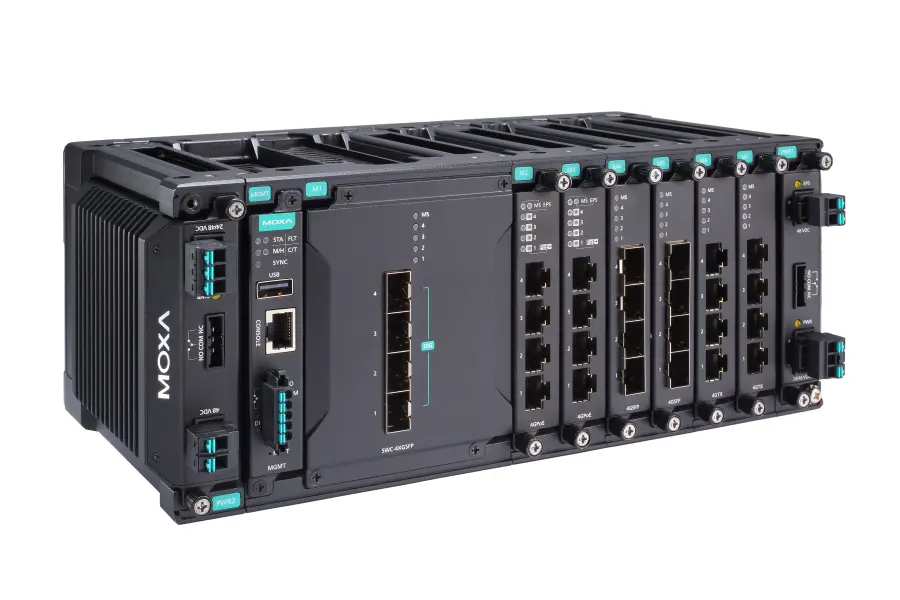

# MDS-G4028-L3-4XGS-T

Industrial Layer 3 Managed PoE Ethernet switch, Ports: 4 embedded 10Gigabit ports, SFP: IPv4 ARP Back Pressure Flow Control DHCP Relay Agent (Opt, PoE: See the LM-7000H module series datasheet for

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180404114076 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial Layer 3 Managed PoE Ethernet switch – Layer 3 full Gigabit modular managed Ethernet switch with 4 fixed 10GbE SFP+ slots, 6 slots for optional 4-port GE/FE modules, 2 slots for isolated power modules, up to 24 Gigabit Ethernet ports, -40 to 75°C operating temperatureEthernet InterfacePre-installed Modules: 4 embedded 10Gigabit portsModule: 6 slots for optional FE/GE modulesSlot Combination: See the LM-7000H module series datasheet for more information.Note: The required power module depends on the choice of LM-7000H module. Refer to the following power/module combination requirements.LM-7000H non-PoE modules:Any power moduleLM-7000H PoE modules:PWR-HV-P48-A, PWR-LV-P48-A onlyStandards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for flow control IEEE 802.3ad for Port Trunk with LACP IEEE 802.1Q for VLAN Tagging IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1X for authenticationEthernet Software FeaturesManagement: IPv4 ARP Back Pressure Flow Control DHCP Relay Agent (Option 82) Fiber check Flow control RARP LLDP Linkup Delay Port Mirroring (SPAN, RSPAN) SMTP SNMP Trap SNMP Inform SNMPv1/v2c/v3 RMON, TFTP, SFTP, HTTP, HTTPS Telnet Syslog Private MIBFilter: GMRP, GVRP, GARP 802.1Q VLAN IGMP Snooping v1/v2/v3 IGMP QuerierRedundancy Protocols: STP RSTP Turbo Ring v2 Turbo Chain Ring Coupling Link Aggregation MRP MSTP Network Loop Protection MRP Interconnection Multiple Dual Homing Multiple Network Coupling TrackingRouting Redundancy: VRRPSecurity: Access control list Broadcast storm protection DHCP Snooping Dynamic ARP Inspection IP Source Guard Rate Limit Trust access control Static Port Lock MAC Authentication Bypass MAC Sticky HTTPS/SSL, SSH, RADIUS, TACACS+ Login and Password Policy Secure Boot IEEE 802.1AE MAC securityTime Management: SNTP IEEE 1588v2 PTP (hardware-based) Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017 NTP Server/Client NTP AuthenticationProtocols: IPv4 TCP/IP, UDP, ICMP, ARP RARP, TFTP, DNS, NTP Client 802.1X QoS HTTPS HTTP Telnet SMTP SNMPv1/v2c/v3 RMON Syslog VLAN AssignmentIndustrial Protocols: EtherNet/IP Modbus TCP PROFINETMulticast Routing: Multicast Local Route PIM-DM PIM-SMUnicast Routing: OSPF Static RouteMIB: P-BRIDGE MIB Q-BRIDGE MIB IEEE8021-SPANNING-TREE-MIB IEEE8021-PAE-MIB IEEE8023-LAG-MIB LLDP-EXT-DOT1-MIB LLDP-EXT-DOT3-MIB SNMPv2-MIB, RMON, MIB Groups 1, 2, 3, 9Power Substation: GOOSE Check MMS 1588 PTP Power Profile C37.238-2017 1588 PTP Power Profile IEC 61850-9-3Switch PropertiesMAC Table Size: 16 KMax. No. of VLANs: 256VLAN ID Range: VID 1 to 4094IGMP Groups: 1024Jumbo Frame Size: 9.216 KBPriority Queues: 8Packet Buffer Size: 12 MbitsLED InterfaceLED Indicators: PWR, EPS, STATE, SYNC, FAULT, MSTR/HEAD, CPLR/TAILSerial InterfaceConsole Port: RS-232 (RJ45)USB InterfaceUSB Connector: USB Type AInput/Output InterfaceDigital Input Channels: 1 (On MGMT Module)Digital Inputs: +13 to +30 V for

## Soubory ke stažení

* [Katalog](https://www.elvac.eu/ipc/download/moxa/datasheet/mds-g4028-l3-4xgs-series-datasheet-v1.2_2024.pdf)
