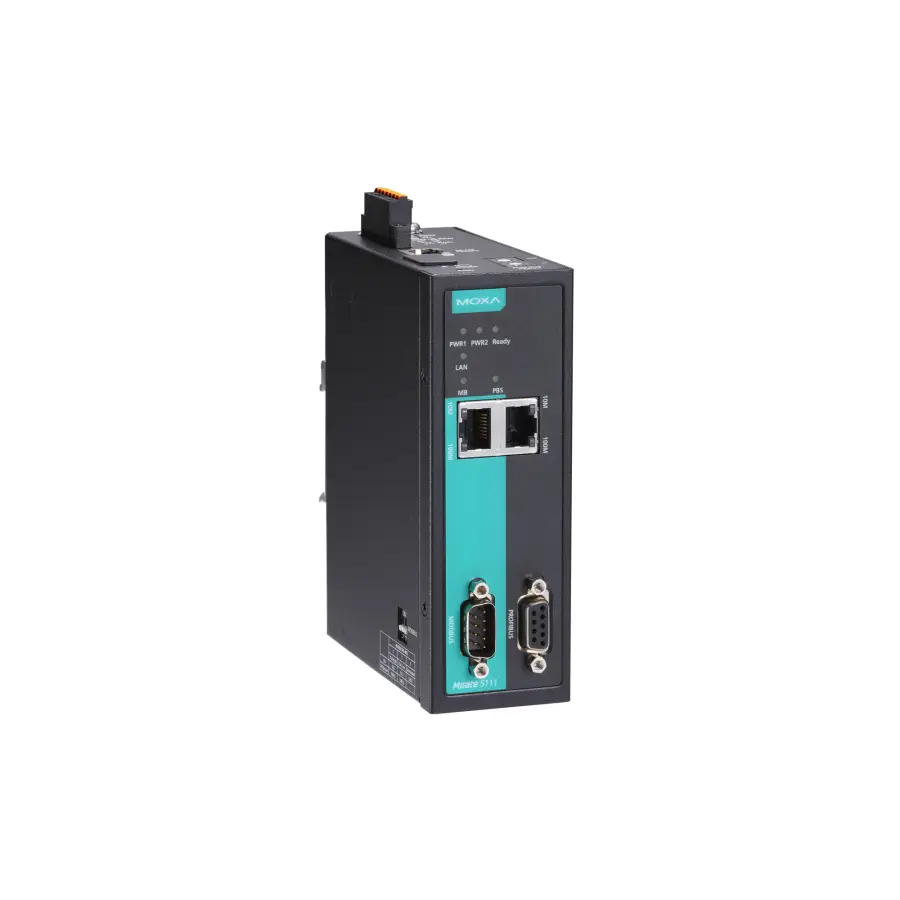

MGate 5111-T

Serial communication device – 1-port Modbus/PROFINET/EtherNet/IP-to-PROFIBUS Slave gateway, -40 to 75°C operating temperature

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): 2 Auto MDI/MDI-X connection
• Magnetic Isolation Protection: 1.5 kV (built-in)

Ethernet Software Features

• Industrial Protocols: Modbus TCP Client (Master) Modbus TCP Server (Slave) PROFINET IO Device EtherNet/IP Adapter
• Configuration Options: Web Console (HTTP/HTTPS) Device Search Utility (DSU) Telnet Console
• Management: ARP DHCP Client DNS HTTP HTTPS SMTP SNMP Trap SNMPv1/v2c/v3 TCP/IP Telnet SSH UDP NTP Client
• MIB: RFC1213, RFC1317
• Time Management: NTP Client

Serial Interface

• Console Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
• No. of Ports: 1
• Connector: DB9 male
• Serial Standards: RS-232/422/485
• Baudrate: 50 bps to 921.6 kbps
• Data Bits: 7, 8
• Parity: None Even Odd Space Mark
• Stop Bits: 1, 2
• Flow Control: RTS Toggle (RS-232 only) RTS/CTS
• RS-485 Data Direction Control: Automatic Data Direction Control (ADDC)
• Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
• Terminator for RS-485: 120 ohms
• Isolation: 2 kV (built-in)

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-2w: Data+, Data-, GND
• RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

• Configuration Options: Serial Console
• Industrial Protocols: PROFIBUS DP-V0 Slave Modbus RTU/ASCII Master Modbus RTU/ASCII Slave

Modbus RTU/ASCII

• Mode: Master, Slave
• Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
• Max. No. of Commands: 128
• Input Data Size: 2048 bytes
• Output Data Size: 2048 bytes

Modbus TCP

• Mode: Client (Master), Server (Slave)
• Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
• Max. No. of Client Connections: 16
• Max. No. of Server Connections: 32
• Max. No. of Commands: 128
• Input Data Size: 2048 bytes
• Output Data Size: 2048 bytes

PROFIBUS Interface

• Industrial Protocols: PROFIBUS DP
• No. of Ports: 1
• Connector: DB9 female
• Baudrate: 9600 bps to 12 Mbps
• Isolation: 2 kV (built-in)
• Signals: PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V

PROFIBUS

• Rotary Switch: PROFIBUS addresses 0-99 (addresses 100-125 supported through software configuration)
• Mode: DP-V0 Slave
• Max. No. of Master Connections: 1
• Max. No. of PROFIBUS I/O Modules: 24
• Input Data Size: 244 bytes
• Output Data Size: 244 bytes

PROFINET

• Mode: IO Device
• Max. No. of IO Controller Connections: 1 (for read/write)
• Input Data Size: 512
• Output Data Size: 512

EtherNet/IP

• Mode: Adapter
• CIP Objects Supported: Identity Message Router Assembly Connection Manager TCP/IP interface Ethernet link Port
• Max. No. of Scanner Connections: 1 (for read-only), 1 (for read/write)
• Input Data Size: 496 bytes
• Output Data Size: 496 bytes

Memory

• microSD Slot: Up to 32 GB (SD 2.0 compatible)

Power Parameters

• Input Voltage: 12 to 48 VDC
• Input Current: 416 mA @ 12 VDC
• Power Connector: Spring-type Euroblock terminal

Relays

• Contact Current Rating: Resistive load: 2 A @ 30 VDC

Physical Characteristics

• Housing: Metal
• IP Rating: IP30
• Dimensions: 45.8 x 105 x 134 mm (1.8 x 4.13 x 5.28 in)
• Weight: 589 g (1.30 lb)

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 61000-6-2/-6-4
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF
• Safety: EN 62368-1 UL 61010-2-201
• Hazardous Locations: ATEX Class I Division 2 IECEx
• Freefall: IEC 60068-2-32
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6 IEC 60068-2-64

MTBF

• Time: 718,131 hrs
• Standards: Telcordia SR332

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
