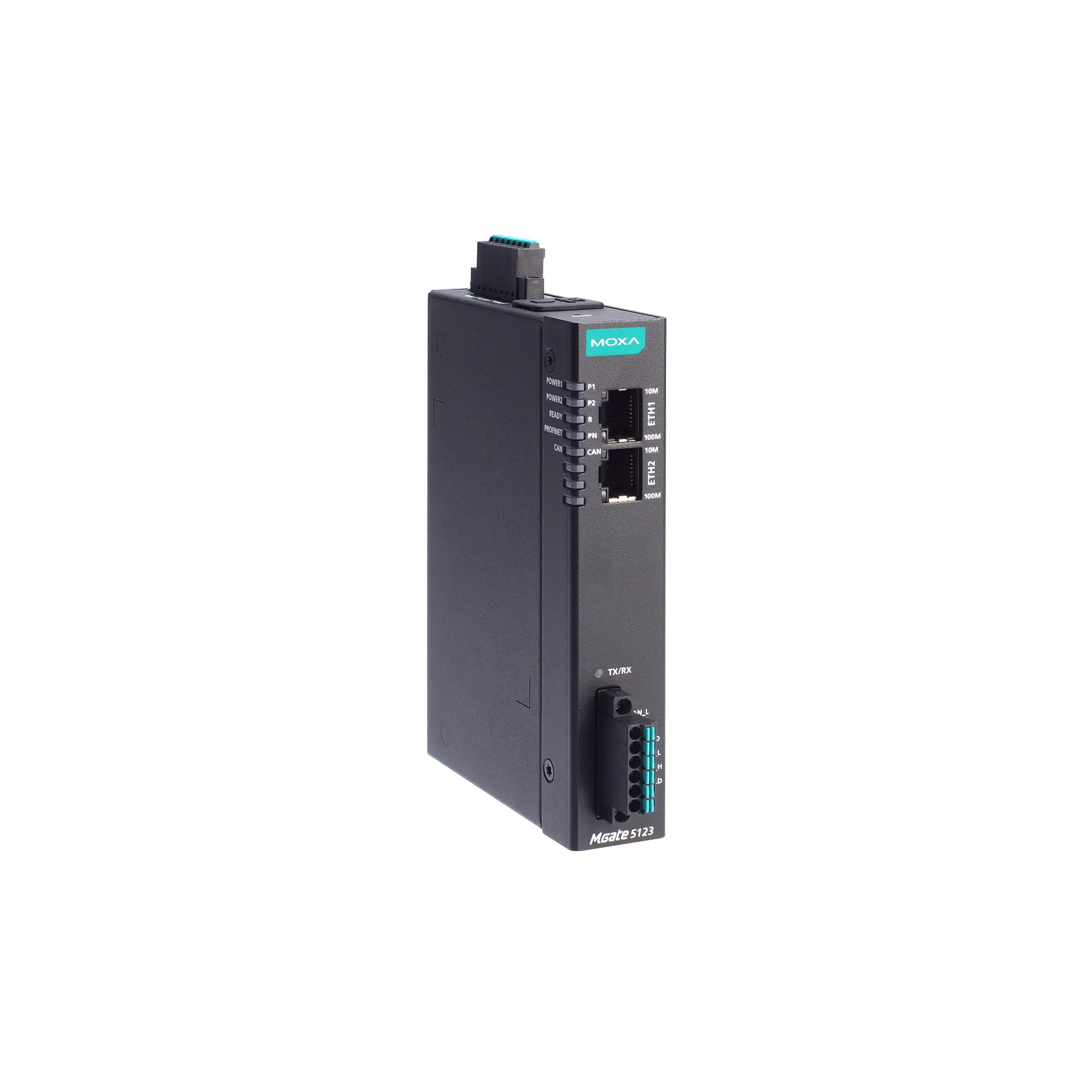

MGate 5123

Industrial gateway – 1-port CAN-to-PROFINET gateways, -10 to 60°C operating temperature

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): 2 Auto MDI/MDI-X connection
• Magnetic Isolation Protection: 1.5 kV (built-in)

Ethernet Software Features

• Industrial Protocols: PROFINET IO Device
• Configuration Options: Web Console (HTTPS) Device Search Utility (DSU)
• Management: ARP DHCP Client DNS HTTP, HTTPS, SMTP, SNMP Trap SNMPv1/v2c/v3 TCP/IP UDP
• MIB: RFC1213
• Time Management: NTP Client

Security Functions

• Authentication: Local database
• Encryption: HTTPS AES-128 AES-256 SHA-256
• Security Protocols: SNMPv3 SNMPv2c Trap HTTPS (TLS 1.3)

CAN Interface

• No. of Ports: 1
• Connector: Spring-type Euroblock terminal
• Standards: ISO 11898-2
• Baudrate: CANopen, proprietary CAN: 10 kbps, 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps, 1 MbpsJ1939: 250 kbps, 500 kbps, 1 Mbps
• Terminator: 120 ohms software configurable
• Signals: CAN_H, CAN_L, GND, Ext_CAN_H, Ext_CAN_L, CAN_Shield

CAN Software Features

• Industrial Protocols: CANopen J1939 Proprietary CAN (CAN 2.0A/B)

CANopen

• Mode: Master
• Max No. of Nodes: 64
• Max No. of Receive PDOs: 256
• Max No. of Transmit PDOs: 256
• SDOs: Supported
• Input Data Size: 2048 bytes
• Output Data Size: 2048 bytes

J1939

• Max. No. of Commands: 256
• Total Input Data Size: 2048 bytes
• Total Output Data Size: 2048 bytes

Proprietary CAN

• Frame Format: CAN 2.0A CAN 2.0B
• Max. No. of Transactions: 256
• Input Data Size: 2048 bytes
• Output Data Size: 2048 bytes

PROFINET

• Mode: IO Device class B
• Max. No. of Master Connections: 2 IO controllers (shared devices)
• Total Input Data Size: 1440 bytes (bytes per IO Controller, total: 2880 bytes)
• Total Output Data Size: 1440 bytes (bytes per IO Controller, total: 2880 bytes)

Memory

• microSD Slot: Up to 32 GB (SD 2.0 compatible)

Power Parameters

• Input Voltage: 12 to 48 VDC
• Input Current: 455 mA (max)
• Power Connector: Spring-type Euroblock terminal

Relays

• Contact Current Rating: Resistive load: 2 A @ 30 VDC

Physical Characteristics

• Housing: Metal
• IP Rating: IP30
• Dimensions: 25 x 90 x 129.6 mm (0.98 x 3.54 x 5.1 in)
• Weight: 294 g (0.65 lb)

Environmental Limits

• Operating Temperature: -10 to 60°C (14 to 140°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• Safety: EN 61010-2-201 UL 61010-2-201
• EMC: EN 61000-6-2/-6-4
• EMI: FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF
• Freefall: IEC 60068-2-31
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6 IEC 60068-2-64

MTBF

• Time: 1,408,984 hrs hrs
• Standards: Telcordia Standard SR-332

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
