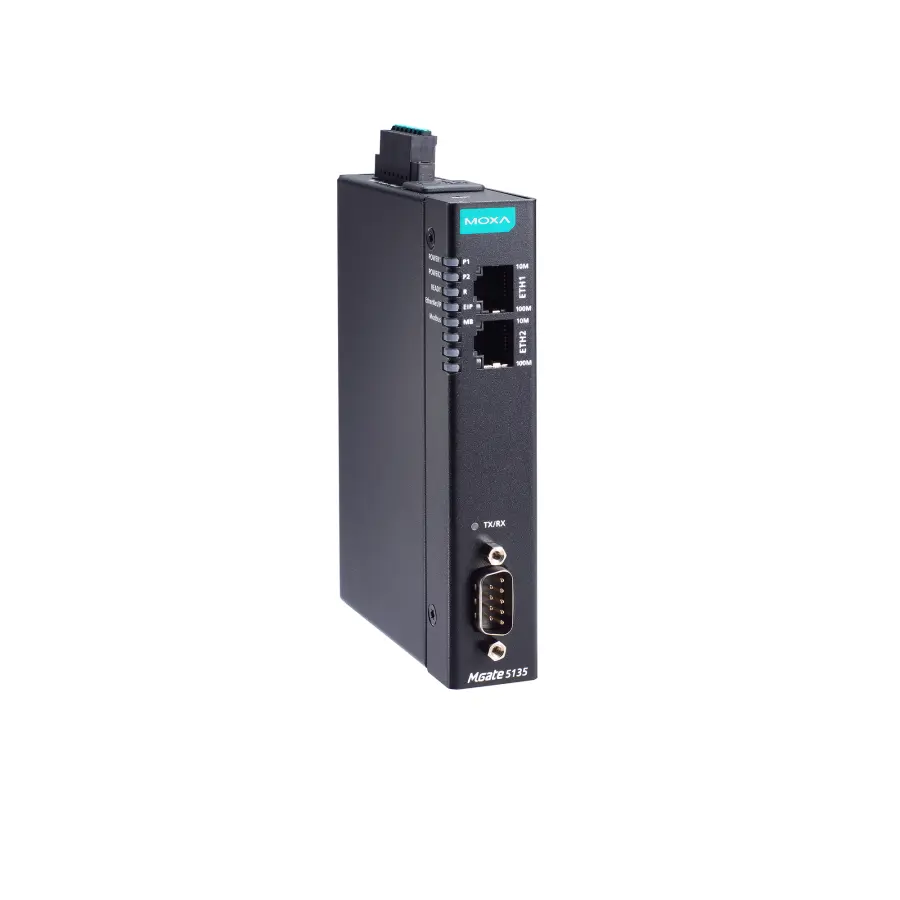

MGate 5135

Serial communication device – 1-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -10 to 60°C operating temperature

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): 2 Auto MDI/MDI-X connection
• Magnetic Isolation Protection: 1.5 kV (built-in)

Ethernet Software Features

• Industrial Protocols: Modbus TCP Client EtherNet/IP Adapter
• Configuration Options: Web Console (HTTPS) Device Search Utility (DSU)
• Management: ARP DHCP Client DNS HTTP, HTTPS, SMTP, SNMP Trap SNMPv1/v2c/v3 TCP/IP UDP
• MIB: RFC1213, RFC1317
• Time Management: NTP Client

Security Functions

• Authentication: Local database
• Encryption: HTTPS AES-128 AES-256 SHA-256
• Security Protocols: SNMPv3 SNMPv2c Trap HTTPS (TLS 1.3)

Serial Interface

• No. of Ports: 1
• Connector: DB9 male
• Serial Standards: RS-232/422/485
• Baudrate: 300 bps to 921.6 kbps
• Data Bits: 7, 8
• Parity: None Even Odd Space Mark
• Stop Bits: 1, 2
• Flow Control: RTS Toggle (RS-232 only) RTS/CTS
• RS-485 Data Direction Control: Automatic Data Direction Control (ADDC)
• Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms software configurable
• Terminator for RS-485: 120 ohms software configurable
• Isolation: 2 kV (built-in)

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-2w: Data+, Data-, GND
• RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

• Industrial Protocols: Modbus RTU/ASCII Client

Modbus RTU/ASCII

• Mode: Client
• Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
• Max. No. of Server Connections: 31
• Max. No. of Commands: 128 per serial port

Modbus TCP

• Mode: Client
• Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
• Max. No. of Server Connections: 32
• Max. No. of Commands: 128
• Total Output Data Size: 2048 bytes
• Total Input Data Size: 2048 bytes

EtherNet/IP

• Mode: Adapter
• CIP Objects Supported: Identity Message Router Assembly Connection Manager TCP/IP interface Ethernet link Port
• Max. No. of Scanner Connections: 4 (read/write)
• Input Data Size: 496 bytes/connection (total: 1984 bytes) bytes
• Output Data Size: 496 bytes/connection (total: 1984 bytes) bytes

Memory

• microSD Slot: Up to 32 GB (SD 2.0 compatible)

Power Parameters

• Input Voltage: 12 to 48 VDC
• Input Current: 455 mA (max)
• Power Connector: Spring-type Euroblock terminal

Relays

• Contact Current Rating: Resistive load: 2 A @ 30 VDC

Physical Characteristics

• Housing: Metal
• IP Rating: IP30
• Dimensions: 25 x 90 x 130 mm (0.98 x 3.54 x 5.1 in)
• Weight: 294 g
