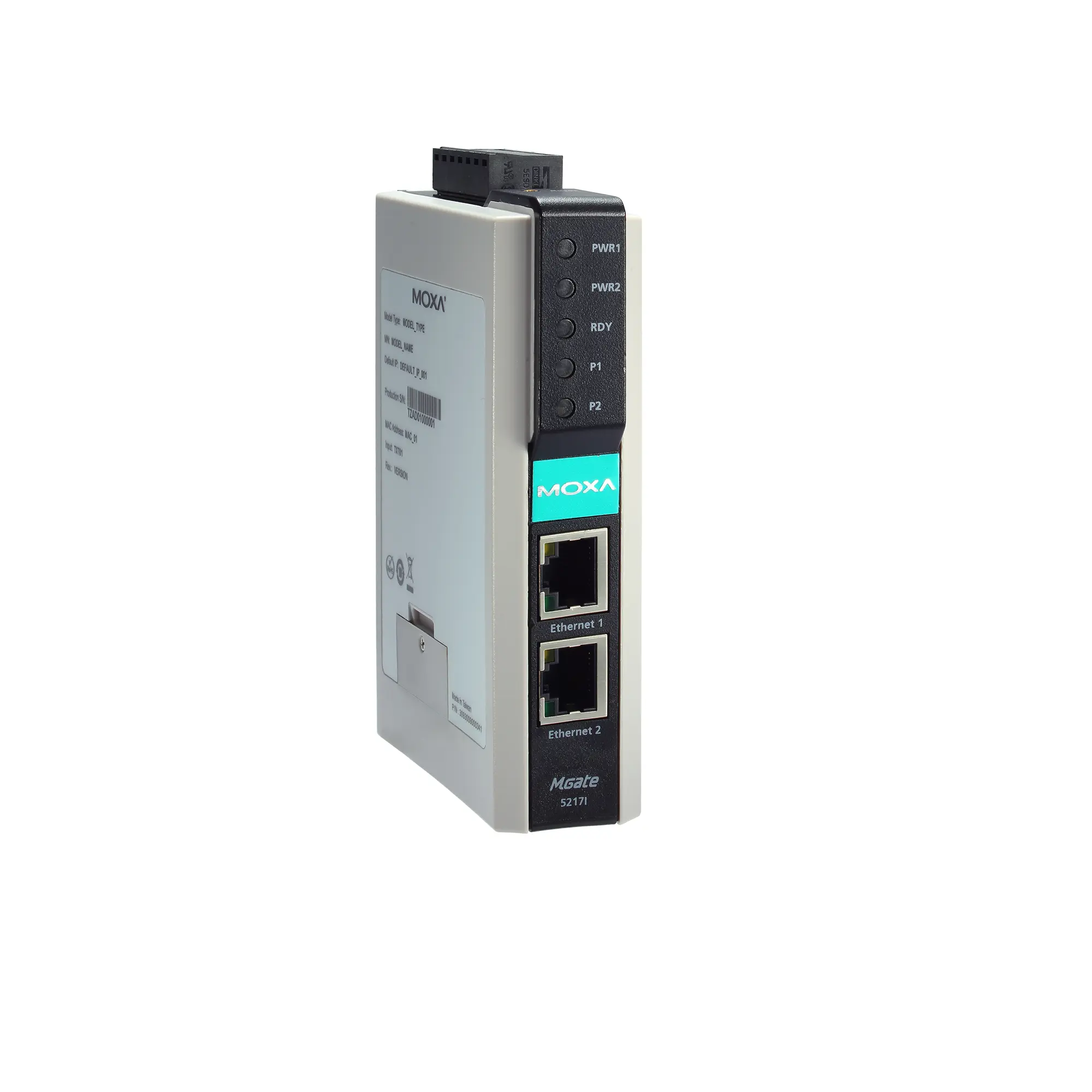

# MGate 5217I-600-T

Serial communication device, Serial: RS-232/422/485, Protocols: Modbus TCP Client (Master) / Server (Slave) BACnet/IP Ser, Temp: -40 to 75°C (-40 to 167°F), Power: 24 VAC 12 to 48 VDC

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 182004022840 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Serial communication device – 2-port Modbus-to-BACnet/IP gateway, 600 points, 2kV isolation, 12 to 48 VDC, 24 VAC, -40 to 75°C operating temperatureEthernet Interface10/100BaseT(X) Ports (RJ45 connector): 2 Auto MDI/MDI-X connectionMagnetic Isolation Protection: 1.5 kV (built-in)Ethernet Software FeaturesIndustrial Protocols: Modbus TCP Client (Master) / Server (Slave) BACnet/IP Server / ClientConfiguration Options: Web Console (HTTP/HTTPS) Device Search Utility (DSU) Telnet ConsoleManagement: ARP DHCP Client DNS HTTP, HTTPS, SMTP, SNMP Trap SNMPv1/v2c/v3 TCP/IP Telnet UDP NTP ClientMIB: RFC1213, RFC1317Time Management: NTP ClientSerial InterfaceNo. of Ports: 2Connector: DB9 maleSerial Standards: RS-232/422/485Baudrate: 50 bps to 921.6 kbpsData Bits: 7, 8Parity: None Even Odd Space MarkStop Bits: 1, 2Flow Control: RTS Toggle (RS-232 only) RTS/CTS DTR/DSRRS-485 Data Direction Control: Automatic Data Direction Control (ADDC)Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohmsTerminator for RS-485: 120 ohmsIsolation: 2 kV (built-in)Serial SignalsRS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GNDRS-422: Tx+, Tx-, Rx+, Rx-, GNDRS-485-2w: Data+, Data-, GNDRS-485-4w: Tx+, Tx-, Rx+, Rx-, GNDSerial Software FeaturesIndustrial Protocols: Modbus RTU/ASCII Client (Master) Modbus RTU/ASCII Server (Slave)Modbus RTU/ASCIIMode: Client (Master) Server (Slave)Functions Supported: 1, 2, 3, 4, 5, 6, 16Max. No. of Commands: 600Modbus TCPMode: Client (Master) Server (Slave)Functions Supported: 1, 2, 3, 4, 5, 6, 16Max. No. of Server Connections: 32Max. No. of Commands: 600BACnet/IPMode: Client ServerMemory Size: 600 pointsSupported BACnet Object: Binary Input Binary Output Binary Value Analog Input Analog Output Analog Value Multi-state Input Multi-state Output Multi-state Value Integer Value Positive Integer ValueSecurity FunctionsAuthentication: Local databaseEncryption: HTTPS AES-128 AES-256 SHA-256Security Protocols: SNMPv3 SNMPv2c Trap HTTPS (TLS 1.2)Power ParametersInput Voltage: 24 VAC 12 to 48 VDCInput Current: 300 mA @ 24 VAC 510 mA @ 12 VDCPower Connector: Screw-fastened Euroblock terminalRelaysContact Current Rating: Resistive load: 1 A @ 30 VDCPhysical CharacteristicsHousing: PlasticIP Rating: IP30Dimensions (without ears): 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)Dimensions (with ears): 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in)Weight: 380 g (0.84 lb)Environmental LimitsOperating Temperature: -40 to 75°C (-40 to 167°F)<

## Soubory ke stažení

* [Katalog](https://www.elvac.eu/ipc/download/moxa/datasheet/mgate-5217-series-datasheet-v2.0.pdf)
