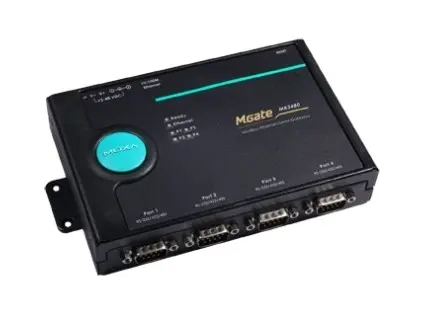

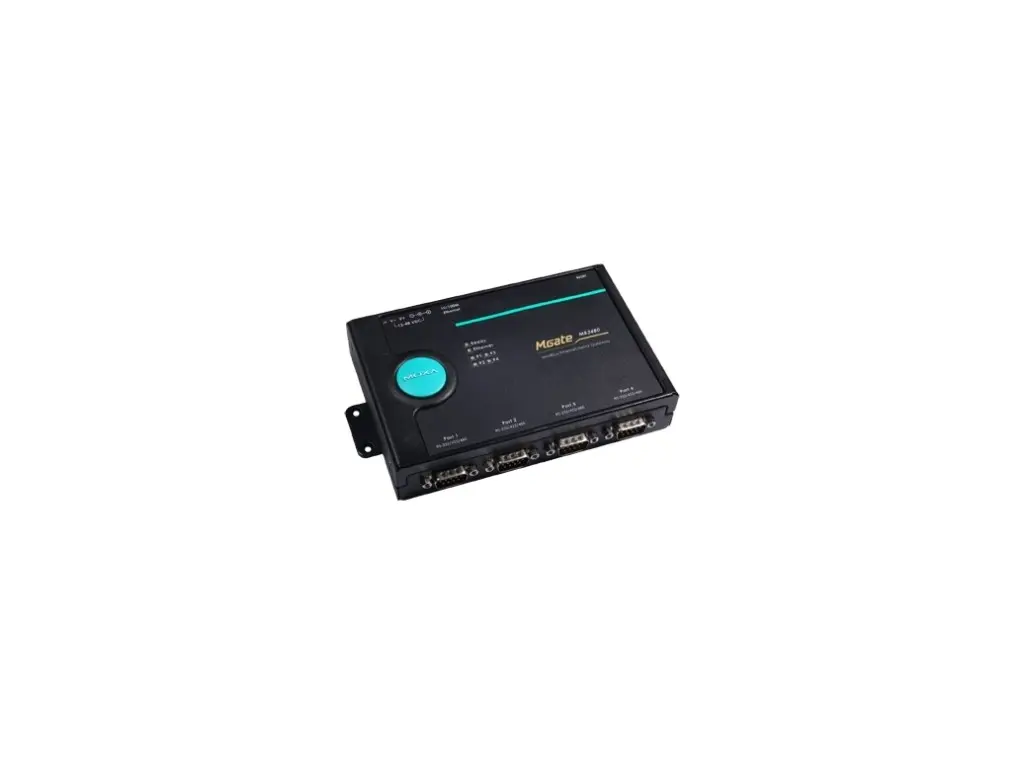

# MGate MB3480

Serial communication device, Serial: RS-232/422/485 (software-selectable), Protocols: Modbus TCP Client (Master) Modbus TCP Server (Slave), Temp: 0 to 55°C (32 to 131°F), Power: IP30 For the MGate

**Dostupnost:** In stock (4 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 182004022310 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Serial communication device – 4-port standard Modbus gatewayEthernet Interface10/100BaseT(X) Ports (RJ45 connector): Auto MDI/MDI-X connectionMagnetic Isolation Protection: 1.5 kV (built-in)Ethernet Software FeaturesIndustrial Protocols: Modbus TCP Client (Master) Modbus TCP Server (Slave)Configuration Options: Web Console (HTTP/HTTPS) Device Search Utility (DSU) MGate Manager MCC Tool Telnet ConsoleManagement: ARP DHCP Client DNS HTTP, HTTPS SNMPv1/v2c/v3 Trap TCP/IP Telnet UDP, SMTP, SNMP Trap NTP ClientMIB: RFC1213, RFC1317Time Management: NTP ClientSecurity FunctionsAuthentication: Local databaseEncryption: HTTPS AES-128 AES-256 SHA-256Security Protocols: HTTPS (TLS 1.2)Serial InterfaceNo. of Ports: 4Connector: DB9 maleSerial Standards: RS-232/422/485 (software-selectable)Baudrate: 50 bps to 921.6 kbpsData Bits: 7, 8Parity: None Even Odd Space MarkStop Bits: 1, 2Flow Control: DTR/DSR RTS Toggle (RS-232 only) RTS/CTSRS-485 Data Direction Control: ADDC (automatic data direction control)Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohmsTerminator for RS-485: 120 ohmsSerial SignalsRS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GNDRS-422: Tx+, Tx-, Rx+, Rx-, GNDRS-485-2w: Data+, Data-, GNDRS-485-4w: Tx+, Tx-, Rx+, Rx-, GNDSerial Software FeaturesIndustrial Protocols: Modbus RTU/ASCII Master Modbus RTU/ASCII SlaveModbus (Transparent)Max. No. of Client Connections: 16Max. No. of Server Connections: 32Power ParametersInput Voltage: 12 to 48 VDCInput Current: 365 mA @ 12 VDCPower Connector: Power jack and terminal blockPhysical CharacteristicsHousing: MetalIP Rating: IP30 For the MGate MB3480, the two screws provided with the wall-mounting kit must be used to fasten the kit to the bottom of the MGate, and the MGate must be properly attached to the terminal block for power input.Dimensions (with ears): 35.5 x 102.7 x 181.3 mm (1.40 x 4.04 x 7.14 in)Dimensions (without ears): 35.5 x 102.7 x 157.2 mm (1.40 x 4.04 x 6.19 in)Weight: 740 g (1.63 lb)Environmental LimitsOperating Temperature: 0 to 55°C (32 to 131°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and CertificationsEMC: EN 55032/35EMI: CISPR 32, FCC Part 15B Class AEMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 2 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF IEC 61000-4-11Safety: IEC 62368-1 UL 62368-1 IEC 60950-1MTBFTime: 1,213,993 hrsS

## Soubory ke stažení

* [Manual MGate_MB3000_Series_Users_Manual_v7_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/MGate_MB3000_Series_Users_Manual_v7_ELVAC15.pdf)
* [Katalog MGate_MB3180_3280_3480_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/MGate_MB3180_3280_3480_ELVAC15.pdf)
