MPC-2070-E2-T-W7E

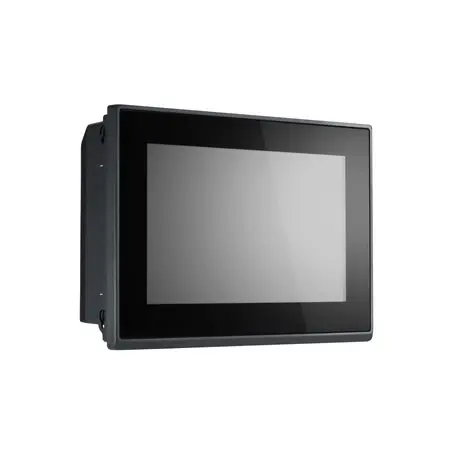

MPC-2070-E2-T-W7E – 7" Panel PC

• CPU: Intel Atom® E3826 1.46 GHz
• Display: 7" 16:9, 1000 nits, capacitive multi-touch (glove-friendly)
• Interfaces: 2× LAN 10/100/1000 (RJ45), 2× RS‑232/422/485 (DB9), 2× USB 2.0 (Type‑A), 4× DI / 4× DO
• Storage: 1× CFast, 1× SD (SDHC/SDXC)
• Power supply: 10–36 VDC; protection **IP66 (front) / IP20 (rear)**
• Temperature: −40…70 °C (wide‑temp)
• System: Windows Embedded Standard 7 (WS7P) 64-bit (pre-installed)

Image and description are for informational purposes. The actual product and its specifications may vary depending on the current version. For complete information, please download the datasheet or contact us.
