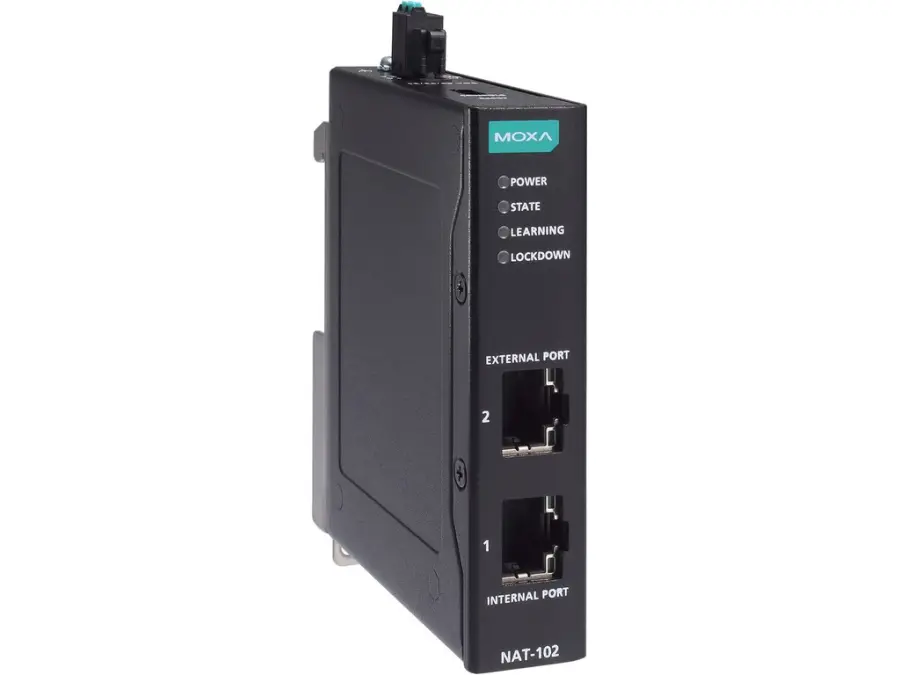

NAT-102

Industrial networking device – 2-port industrial Network Address Translation (NAT) devices, -10 to 60°C operating temperature

Input/Output Interface

• Buttons: Reset button

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): 2
• Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X)

Ethernet Software Features

• Management: Web Console (HTTP/HTTPS) LLDP Telnet TFTP HTTPS SSH
• Security: Secure Boot Trust access control
• Time Management: NTP Server/Client SNTP
• Unicast Routing: Static Route
• Routing: Throughput: 15K packets per second (max. 100 Mbps)
• Routing Table: Max. 32 routing rules
• Concurrent Connections: Max. 30K
• Connections Per Second: Max. 4.5K

LED Interface

• LED Indicators: POWER, STATE, LEARNING, LOCKDOWN

Firewall

• Filter: IP address MAC address Ports
• Port-based Auto Learning Lock: MAC address IP address
• Throughput: Max. 15K packets per second (max. 100 Mbps)

NAT

• Features: 1-to-1 N-to-1 Port forwarding NAT loopback
• Throughput: Max. 15K packets per second (max. 100 Mbps)

Real-Time Firewall / VPN Event Log

• Event Type: Policy enforcement
• Media: Local storage Syslog server

Serial Interface

• Console Port: RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
• Connector: USB Type-C

Power Parameters

• Connection: Removable terminal block
• Operating Voltage: 9.6 to 60 VDC
• Input Voltage: 12/24/48 VDC
• Input Current: 0.196 A @ 12 VDC 0.100 A @ 24 VDC 0.056 A @ 48 VDC
• Reverse Polarity Protection: Supported

Physical Characteristics

• Housing: Metal
• Dimensions: 20 x 90 x 73 mm (0.79 x 3.54 x 2.87 in)
• Weight: 210 g (0.47 lb)
• Installation: DIN-rail mounting Wall mounting (with optional kit)

Environmental Limits

• Operating Temperature: -10 to 60°C (14 to 140°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• Safety: UL 62368-1
• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
• Hazardous Locations: ATEX Class I Division 2
• Traffic Control: NEMA TS2
• Railway: EN 50121-4
• Shock: IEC 60068-2-27
• Freefall: IEC 60068-2-32
• Vibration: IEC 60068-2-6

MTBF

• Time: 2,135,469 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
