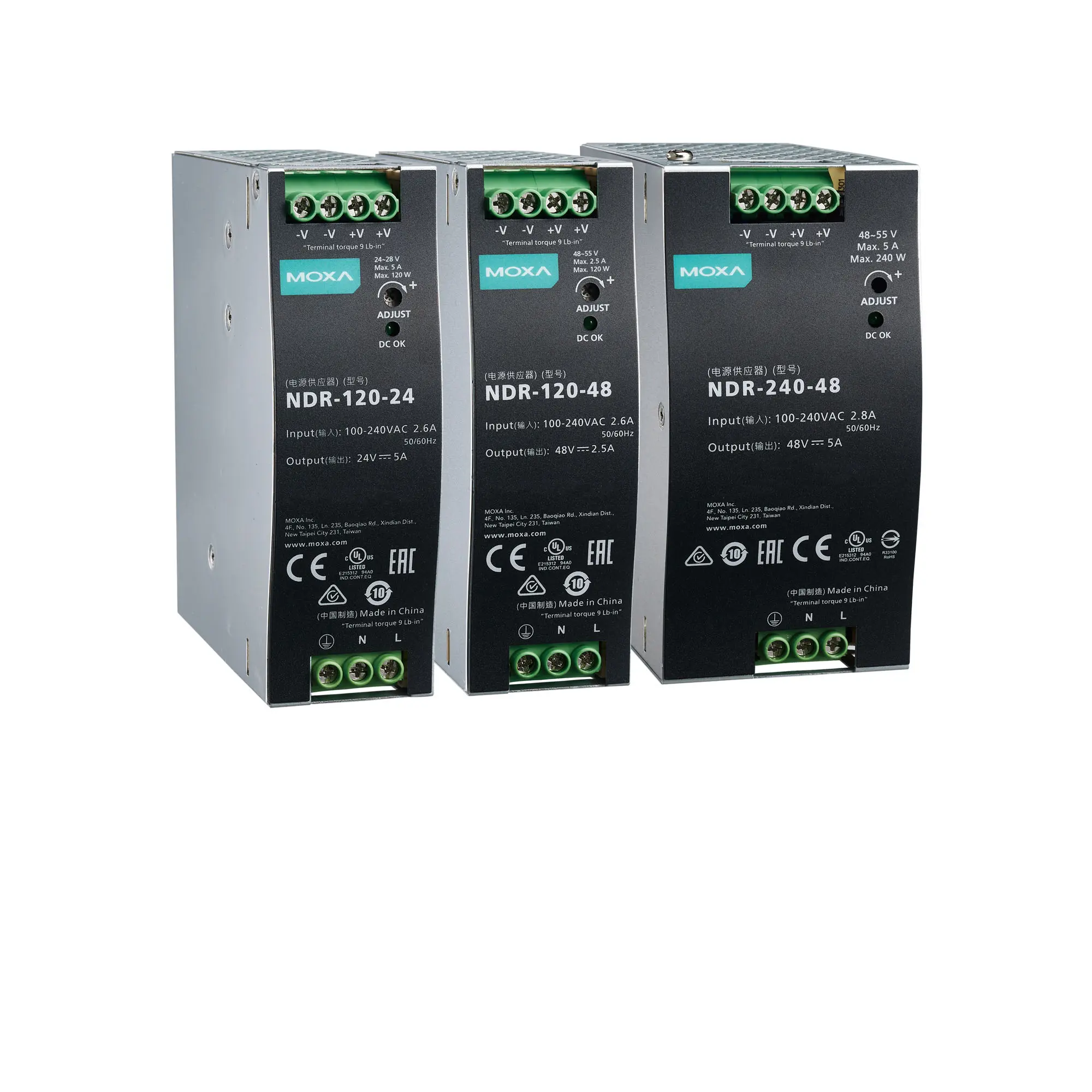

# NDR-240-48

Power supply, Material: Metal, Dimensions: 127.81 x 123.75 x 63 mm (5.03 x 4.87 x 2.48 in)

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 151505113110 |
| Warranty | 36 |
| Warranty for companies | 36 |
| Brand | MOXA |

## Podrobný popis

Power supply – 240 W/5.0 A DIN-rail 48 VDC power supply, universal 90 to 264 VAC or 127 to 370 VDC input voltage, -20 to 70°C operating temperatureOutput Power ParametersWattage: 240 WVoltage: 48 VDCCurrent Rating: 0 to 5 ARipple and Noise: 150 mVp-pVoltage Adjustment Range: 48 to 55 VDCSetup/Rise Time at Full Load: 3000 ms, 100 ms at 115 VAC 1500 ms, 100 ms at 230 VACTypical Hold Up Time at Full Load: 22 ms at 115 VAC 28 ms at 230 VACInput Power ParametersTypical Efficiency: 90%Typical Current: 1.3 A @ 230 VAC, 2.5 A @ 115 VACVoltage Range: 90 to 264 VAC (47 to 63 Hz) 127 to 370 VDCInrush Current (cold start): 35 A @ 230 VAC, 20 A @ 115 VACOverload ProtectionRated Output Power: 105 to 160%Protection Type: Constant current limiting, recovers automatically after fault condition is removedOvervoltage ProtectionOvervoltage Range: 56 to 65 VProtection Type: Shut down operating voltage, repower on to recoverPhysical CharacteristicsHousing: MetalDimensions: 127.81 x 123.75 x 63 mm (5.03 x 4.87 x 2.48 in)Weight: 900 g (1.98 lb)Environmental LimitsOperating Temperature: -20 to 70°C (-4 to 158°F)Storage Temperature: -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 20 to 95% (non-condensing)Max. Operating Temperature at Full Load: 50°C (122°F)Standards and CertificationsSafety: UL 508 EN 62368-1 IEC 62368-1EMC: EN 55032/35 EN 61000-3-2 Class A EN 61000-3-3 EN IEC 61204-3 EN IEC 61000-6-2EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV IEC 61000-4-5 Surge: Power: 4 kV IEC 61000-4-6 CS: 0.15 kHz to 80 MHz: 10 Vrms IEC 61000-4-8: 30 A/m IEC 61000-4-11MTBFStandards: MIL-HDBK-217FTime: 230,206 hrsWarrantyWarranty Period: 3 yearsDetails: See www.moxa.com/warranty
