title: "NPort 5150AI-M12-CT-T"
category: "Industrial Communication > Network Servers for Serial Devices > Compact Serial Servers"
---

**Kategorie:** Industrial Communication > Network Servers for Serial Devices > Compact Serial Servers

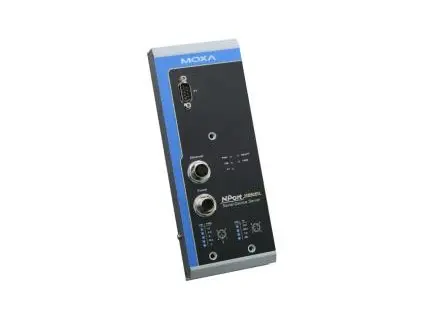

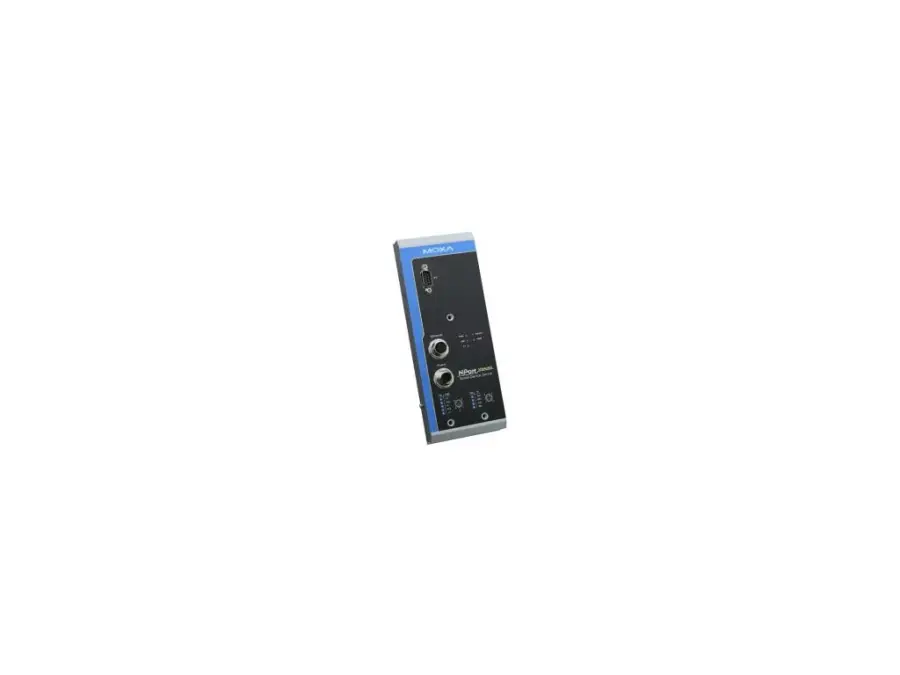

# NPort 5150AI-M12-CT-T

Serial device server, Serial: RS-232, RS-422, RS-485, Protocols: SNMPv3 HTTPS (TLS 1.2), Temp: -40 to 75°C (-40 to 167°F), Power: 12 to 48 VDC

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180804023457 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Serial device server – 1-port RS-232/422/485 device server with M12 connector, M12 power input, -40 to 75°C operating temperature, conformal coatingEthernet Interface10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): 1Ethernet Software FeaturesConfiguration Options: Web Console (HTTP/HTTPS), Windows Utility, Device Search Utility (DSU), MCC Tool, Telnet ConsoleManagement: ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDPFilter: IGMP v1/v2Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP EmbeddedLinux Real TTY Drivers: Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.xFixed TTY Drivers: SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15Android API: Android 3.1.x and laterSecurity FunctionsAuthentication: Local databaseEncryption: HTTPS, AES-128, RSA-1024, SHA-1, SHA-256Security Protocols: SNMPv3 HTTPS (TLS 1.2)Serial InterfaceConnector: DB9 maleNo. of Ports: 1Serial Standards: RS-232, RS-422, RS-485Baudrate: Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6kData Bits: 5, 6, 7, 8Stop Bits: 1, 1.5, 2Parity: None, Even, Odd, Space, MarkFlow Control: RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFFRS-485 Data Direction Control: ADDC (automatic data direction control)Isolation: 2 kVSerial SignalsRS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GNDRS-422: Tx+, Tx-, Rx+, Rx-, GNDRS-485-4w: Tx+, Tx-, Rx+, Rx-, GNDRS-485-2w: Data+, Data-, GNDPower ParametersInput Current: 310 mA @ 12 VDCInput Voltage: 12 to 48 VDCNote: Compliant with EN 50155 on 24/48 VDCPower Connector: M12 A-coded 5-pin male connectorReliabilityAutomatic Reboot Trigger: Built-in WDTAlert Tools: Built-in buzzer and RTC (real-time clock)Physical CharacteristicsDimensions: 80 x 216.6 x 52.9 mm (3.15 x 8.53 x 2.08 in)Weight: 686 g (1.51 lb)Protection: PCB conformal coatingEnvironmental LimitsOperating Temperature: -40 to 75°C (-40 to 167°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and CertificationsEMC: EN 55032/35EMI: CISPR 32, FCC Part 15B Class AEMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8

## Technická specifikace

| Vlastnost | Hodnota |
| --- | --- |
| Min. provozní teplota | Min. provozní teplota
-40 °C |
| Max. provozní teplota | Max. provozní teplota
75 °C |
| Počet portů RS-232/422/485 | Počet portů RS-232/422/485
1 |
| Montáž na panel | Montáž na panel
Ano |
| Šifrování dat | Šifrování dat
Ne |

## Soubory ke stažení

* [Katalog NPort_5000AI-M12_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/NPort_5000AI-M12_Series_ELVAC15.pdf)
* [Manual NPort_5000AI-M12_Series_Users_Manual_v2_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/NPort_5000AI-M12_Series_Users_Manual_v2_ELVAC15.pdf)
