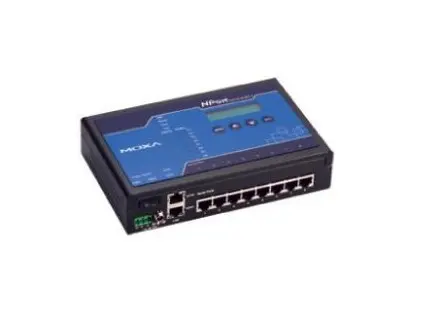

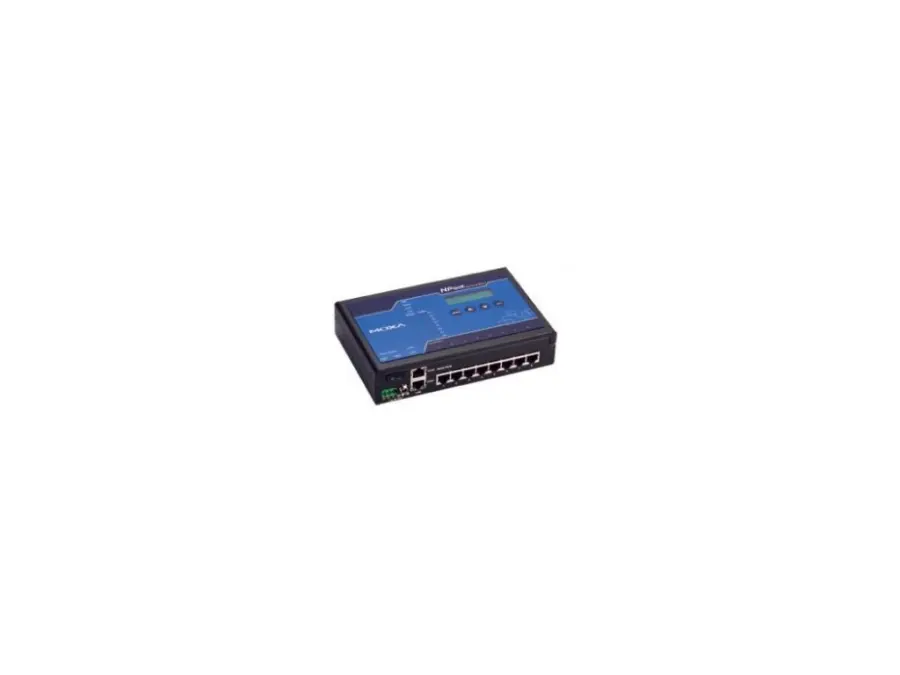

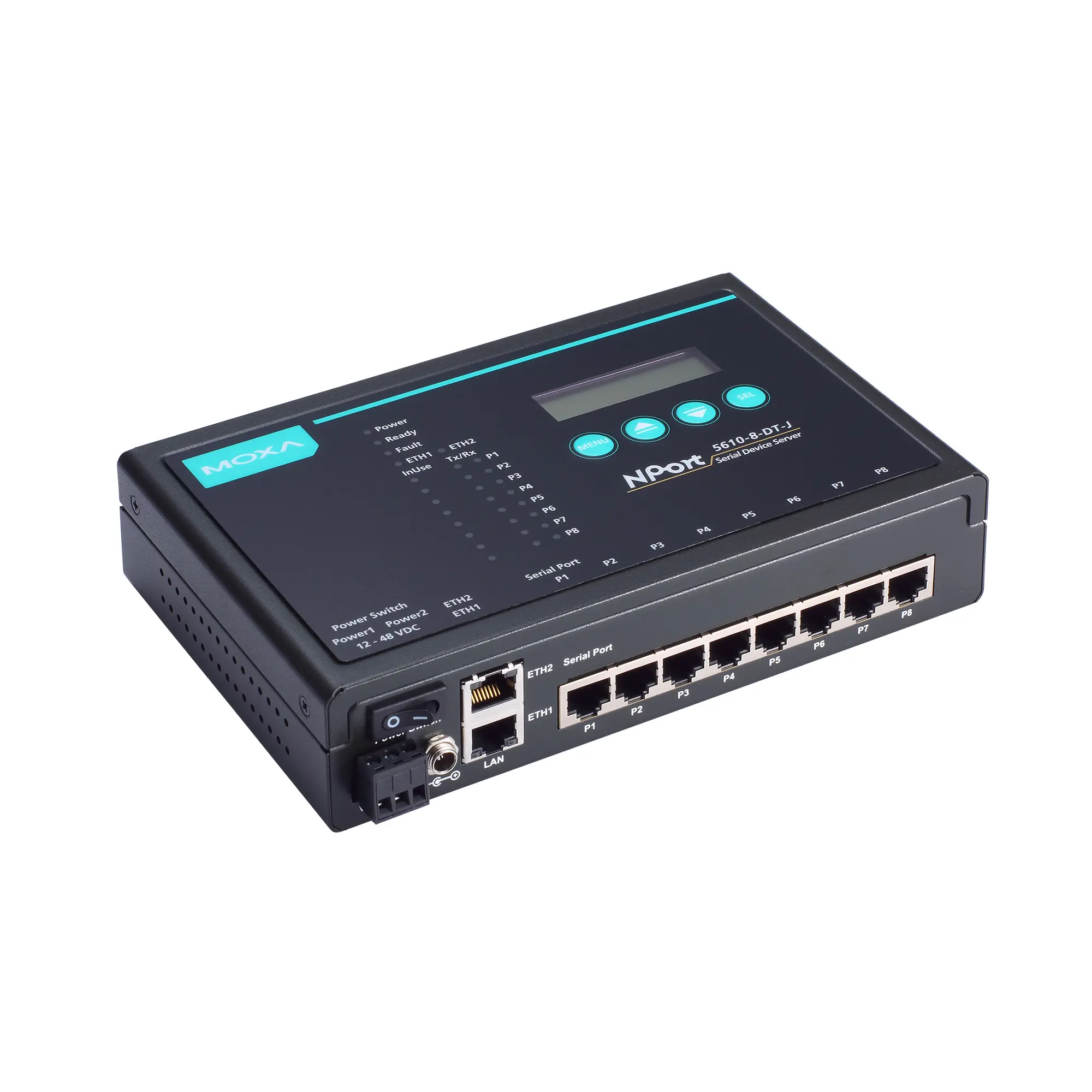

NPort 5610-8-DT-J

Serial device server – 8-port RS-232 desktop device server with RJ45 connectors and 48 VDC power input

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): 2
• Magnetic Isolation Protection: 1.5 kV (built-in)

Ethernet Software Features

• Configuration Options: Serial Console Telnet Console Web Console (HTTP/HTTPS) Windows Utility
• Management: ARP, BOOTP, DHCP Client DNS HTTP, HTTPS ICMP IPv4 LLDP Rtelnet SMTP SNMPv1/v2c TCP/IP Telnet UDP
• Filter: IGMP v1/v2
• Windows Real COM Drivers: Windows 11/10/8.1/8/7/Vista/XP/ME/98/95 Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003 Windows Embedded CE 6.0/5.0, Windows XP Embedded
• Linux Real TTY Drivers: Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
• Fixed TTY Drivers: macOS Versions: 11.x, 10.12 to 10.15 SCO UNIX, SCO OpenServer, SCO UnixWare 7, Sun Solaris 10, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
• Arm®-based Platform Support: Linux Kernel 5.x/4.x
• Virtual Machine: VMWare ESXi (Windows 11/10) VMware Fusion (Windows on macOS 10.12 to 11.x)Parallels Desktop (Windows on macOS 10.12 to 11.x)
• Android API: Android 3.1.x and later
• Time Management: SNTP
• MIB: RFC1213, RFC1317

Security Functions

• Authentication: Local database
• Encryption: HTTPS AES-128 RSA-1024 SHA-1 SHA-256
• Security Protocols: HTTPS (TLS 1.2) SNMPv3

Serial Interface

• Connector: 8-pin RJ45
• No. of Ports: 8
• Serial Standards: RS-232
• Baudrate: Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
• Data Bits: 5, 6, 7, 8
• Stop Bits: 1, 1.5, 2
• Parity: None, Even, Odd, Space, Mark
• Flow Control: RTS/CTS DTR/DSR XON/XOFF
• Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
• Terminator for RS-485: 120 ohms
• RS-485 Data Direction Control: Automatic Data Direction Control (ADDC)
• Isolation: -I models: 2 kV
• Surge: 0.5 kV
• Console Port: RS-232 (TxD, RxD, GND), 3-pin (19200, n, 8, 1)

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-2w: Data+, Data-, GND

Power Parameters

• Input Current: 611 mA @ 12 VDC
• No. of Power Inputs: 2
• Input Voltage: 12 to 48 VDC
• Reverse Polarity Protection: Supported
• Source of Input Power: TB, Power input jack

Reliability

• Automatic Reboot Trigger: Built-in WDT
• Alert Tools: Built-in buzzer and RTC (real-time clock)

Physical Characteristics

• Housing: Metal
• Installation: Desktop DIN-rail mounting (with optional kit) Wall mounting (with optional kit)
• Dimensions (with ears): 229 x 46 x 125 mm (9.01 x 1.81 x 4.92 in)
• Dimensions (without ears): 197 x 44 x 125 mm (7.76 x 1.73 x 4.92 in)
• Dimensions (with DIN-rail kit on bottom panel): 197 x 53 x 125 mm (7.76 x 2.09 x 4.92 in)
• Weight: 1,520 g (3.35 lb)
• Interactive Interface: LCD panel display Push buttons for configuration

Environmental Limits

• Operating Temperature: 0 to 55°C (32 to 131°F)
• Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
• Safety: UL 60950-1 IEC 62368-1

Declaration

• Green Product: RoHS, CRoHS, WEEE

MTBF

• Time: 836,374 hrs
• Standards: Telcordia (Bellcore) Standard

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
