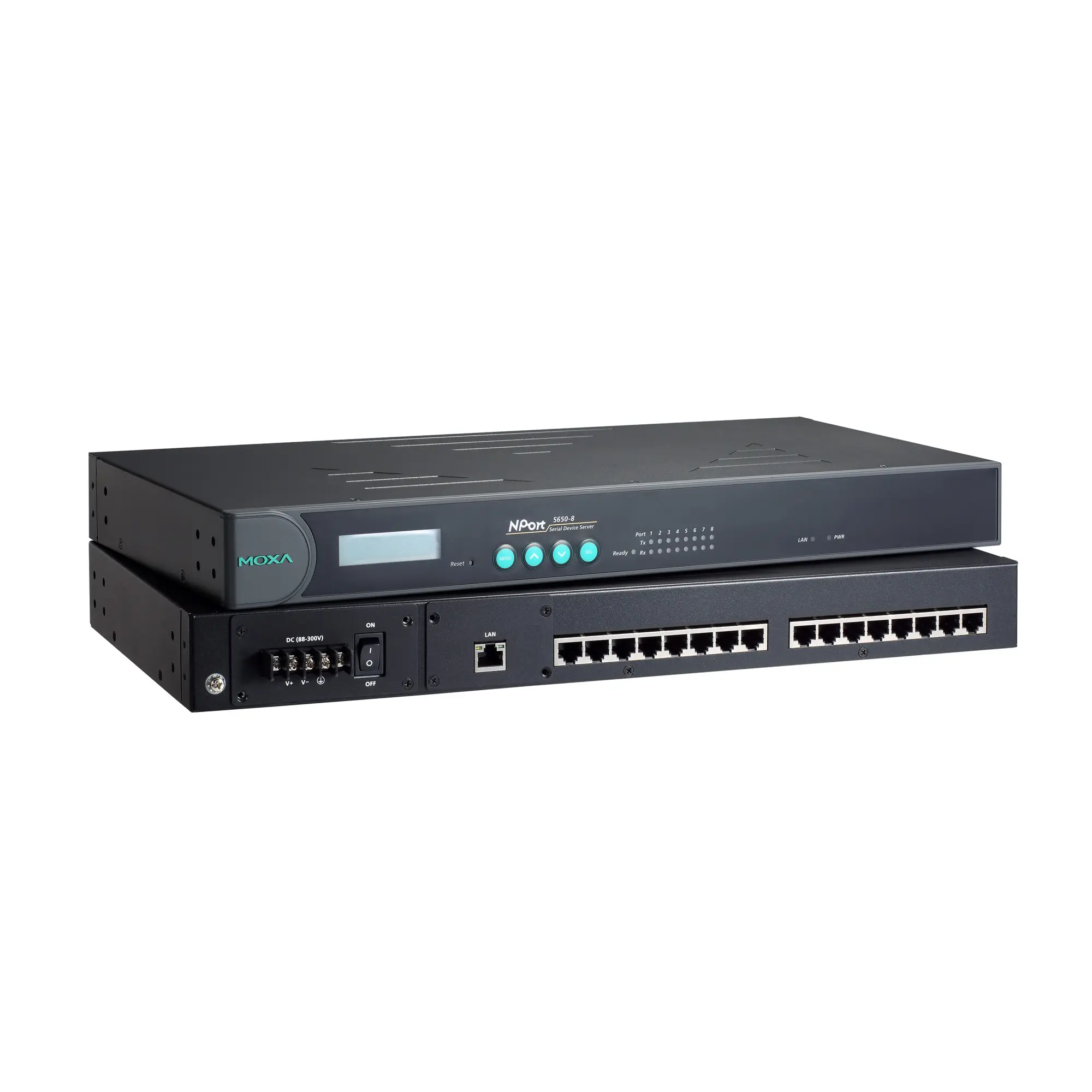

# NPort 5650-16-M-SC

Serial device server, Serial: RS-232 RS-422 RS-485, LAN: Real COM, TCP Client, TCP Server, UDP, Ethernet Modem, Pa, Protocols: HTTPS (TLS 1.2) SNMPv3, Temp: 0 to 60°C (32 to 140°F), Power: 100 to

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180804021034 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Serial device server – 16-port RS-232/422/485 rackmount device server with multi-mode fiber (SC connector)Ethernet Interface10/100BaseT(X) Ports (RJ45 connector): 1Magnetic Isolation Protection: 1.5 kV (built-in)Optical Fiber: Read more 100BaseFX Multi-Mode Single-Mode Fiber Cable Type OM1 50/125 µm G.652 800 MHz x km Typical Distance 4 km 5 km 40 km Wavelength Typical (nm) 1300 1310 TX Range (nm) 1260 to 1360 1280 to 1340 RX Range (nm) 1100 to 1600 1100 to 1600 Optical Power TX Range (dBm) -10 to -20 0 to -5 RX Range (dBm) -3 to -32 -3 to -34 Link Budget (dB) 12 29 Dispersion Penalty (dB) 3 1 Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).Ethernet Software FeaturesConfiguration Options: Telnet Console Web Console (HTTP/HTTPS) Windows UtilityManagement: ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, RFC2217, Rtelnet, PPP, SLIP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDPFilter: IGMP v1/v2cWindows Real COM Drivers: Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NTWindows Embedded CE 6.0 and 5.0, Windows XP EmbeddedLinux Real TTY Drivers: Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.xFixed TTY Drivers: macOS versions: 14, 13, 12, 11, and 10.1xArm®-based Platform Support: Windows 11Linux Kernel 6.x, 5.x, and 4.xmacOS 14, 13, 12, and 11Virtual Machine: VMWare ESXi (Windows 11/10)VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x)Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x)Android API: Android 3.1.x and laterTime Management: SNTPSecurity FunctionsAuthentication: Local databaseEncryption: HTTPS AES-128 RSA-1024 SHA-1 SHA-256Security Protocols: HTTPS (TLS 1.2) SNMPv3Serial InterfaceConnector: 8-pin RJ45No. of Ports: 16Serial Standards: RS-232 RS-422 RS-485Baudrate: Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6kData Bits: 5, 6, 7, 8Stop Bits: 1, 1.5, 2Parity: None, Even, Odd, Space, MarkFlow Control: None RTS/CTS (RS-232 only) DTR/DSR (RS-232 only) XON/XOFFPull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohmsTerminator for RS-485: 120 ohmsRS-485 Data Direction Control: Automatic Data Direction Control (ADDC)Operation Modes: Real COM, TCP Client, TCP Server, UDP, Ethernet Modem, Pair Connection, Reverse Telnet, RFC2217, DisabledSerial SignalsRS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GNDRS-422: Tx+, Tx-, Rx+, Rx-, GNDRS-485-4w: Tx+, Tx-, Rx+, Rx-, GNDRS-485-2w: Data+, Data-, GNDPower ParametersInput Current: 174 mA @ 100 VACInput Voltage: 100 to 240 VAC, 47 to 63 HzReliabilityAutomatic Reboot Trigger

## Technická specifikace

| Vlastnost | Hodnota |
| --- | --- |
| Max. provozní teplota | Max. provozní teplota
55 °C |
| Počet portů RS-232/422/485 | Počet portů RS-232/422/485
16 |
| Montáž do skříně RACK | Montáž do skříně RACK
Ano |
| Šifrování dat | Šifrování dat
Ne |

## Soubory ke stažení

* [Manual NPort_5600_Series_Users_Manual_v15_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/NPort_5600_Series_Users_Manual_v15_ELVAC15.pdf)
* [Katalog NPort_5600_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/NPort_5600_Series_ELVAC15.pdf)
