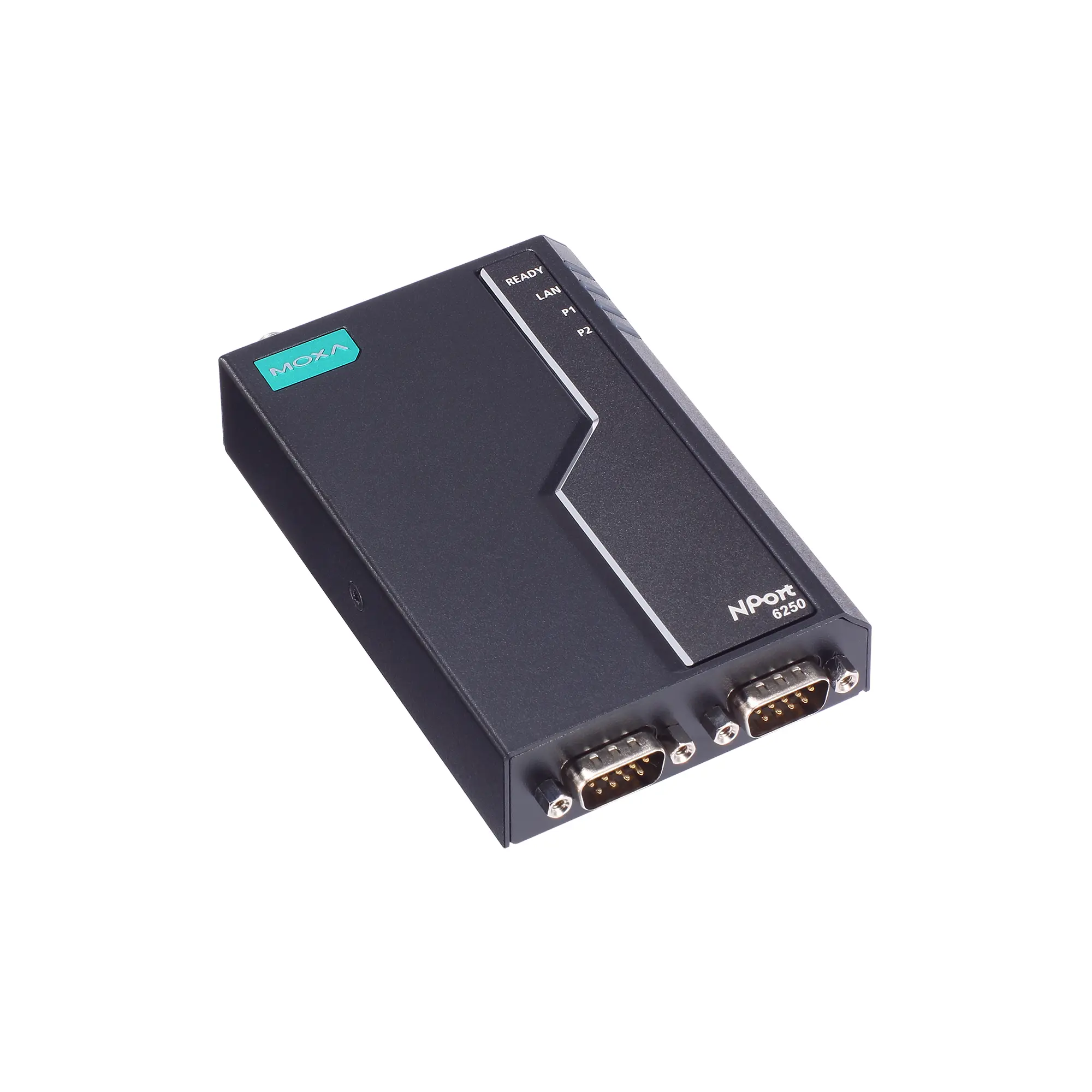

NPort 6250-G2-T

Serial device server – 2nd Gen 2-port RS-232/422/485 to Ethernet secure device server, -40 to 75°C operating temperature

Memory

• SD Slot: microSD card Up to 2 TB (high speed, 25 Mbps)

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): 1 Auto MDI/MDI-X connection
• Magnetic Isolation Protection: 1.5 kV (built-in)

Ethernet Software Features

• Configuration Options: Web Console (HTTP/HTTPS) Windows Utility Device Search Utility (DSU) MCC Tool Serial Console
• Management: ARP DHCP Client DNS, HTTPS, ICMP IPv4/IPv6 SMTP SMTPS SNMPv1/v2c/v3 SNTP TCP/IP, UDP, WINS
• Windows Real COM Drivers: Windows 11, 10, 8.1, 8, and 7Windows Server 2022, 2019, 2016, 2012 R2, 2012, and 2008 R2
• Linux Real TTY Drivers: Kernel versions 6.x, 5.x, and 4.x
• Fixed TTY Drivers: macOS versions: 14, 13, 12, and 11
• Arm®-based Platform Support: Windows 11Linux kernel 6.x, 5.x, and 4.xmacOS 14, 13, 12, and 11
• Virtual Machine: VMWare ESXi (Windows 11/10/8.1/8/7 & Linux 6.x, 5.x, and 4.x)VMware Fusion (Windows on macOS 14, 13, 12, and 11)Parallels Desktop (Windows on macOS 14, 13, 12, and 11)
• Time Management: SNTP Client
• MIB: MIB-II RFC1213, RFC1317 Private MIB
• Unicast Routing: RIPV1/V2 Static Route

Security Functions

• Root of Trust: Secure Boot True Random Number Generator (TRNG) Security Screws
• Authentication: Local database RADIUS TACACS+
• Encryption: AES-128 AES-256 ECC-256 ECC-384 ECC-521 HMAC RSA-1024 RSA-2048 RSA-3072 RSA-4096 SHA-256 SHA-384
• Security Protocols: HTTPS (TLS 1.2) SNMPv3 SSHv2

Serial Interface

• Connector: DB9 male
• No. of Ports: 2
• Serial Standards: RS-232, RS-422, RS-485
• Secure Operation Modes: Reverse SSH Secure Pair Connection Secure Real COM Secure TCP Client Secure TCP Server SSH
• Standard Operation Modes: Disabled Pair Connection SLIP PPP Real COM Reverse Terminal RFC2217 TCP Client TCP Server Terminal UDP
• Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
• Data Bits: 5, 6, 7, 8
• Stop Bits: 1, 1.5, 2
• Flow Control: None RTS/CTS DTR/DSR RTS Toggle XON/XOFF
• Parity: None, Even, Odd, Space, Mark
• RS-485 Data Direction Control: Automatic Data Direction Control (ADDC)
• Terminator for RS-485: 120 ohms
• Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms (software–configurable)

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-2w: Data+, Data-, GND

Power Parameters

• Input Current: 12 to 48 VDC, 160 mA (max.)
• Input Voltage: 12 to 48 VDC

Reliability

• Automatic Reboot Trigger: Built-in WDT
• Alert Tools: Built-in buzzer and RTC (real-time clock)

Physical Characteristics

• Housing: Metal
• Dimensions (with ears): NPort 6150-G2 models: 64 x 111.8 x 25 mm (2.52 x 4.4 x 0.98 in)NPort 6250-G2 models: 76.3 x 122.4 x 25 mm (3 x 4.82 x 0.98 in)
• Weight: Product With Package: 278 g (0.61 lb)
• Installation: Desktop DIN-rail mounting (with optional kit) Wall mounting (with optional kit) Side-panel mounting (with optional kit)

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF IEC 61000-4-11
• Traffic Control: NEMA TS2
• Vibration: IEC 60068-2-6
• Package Drop Test: ISTA 1A
• Safety: IEC 62368-1 UL 62368-1 EN 62368-1
• International Approval: KC

Declaration

• Green Product: RoHS, CRoHS, WEEE

MTBF

• Time: 3,351,651 hrs
• Standards: Telcordia Standard SR-332 Telcordia SR-332 Issue 4

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
