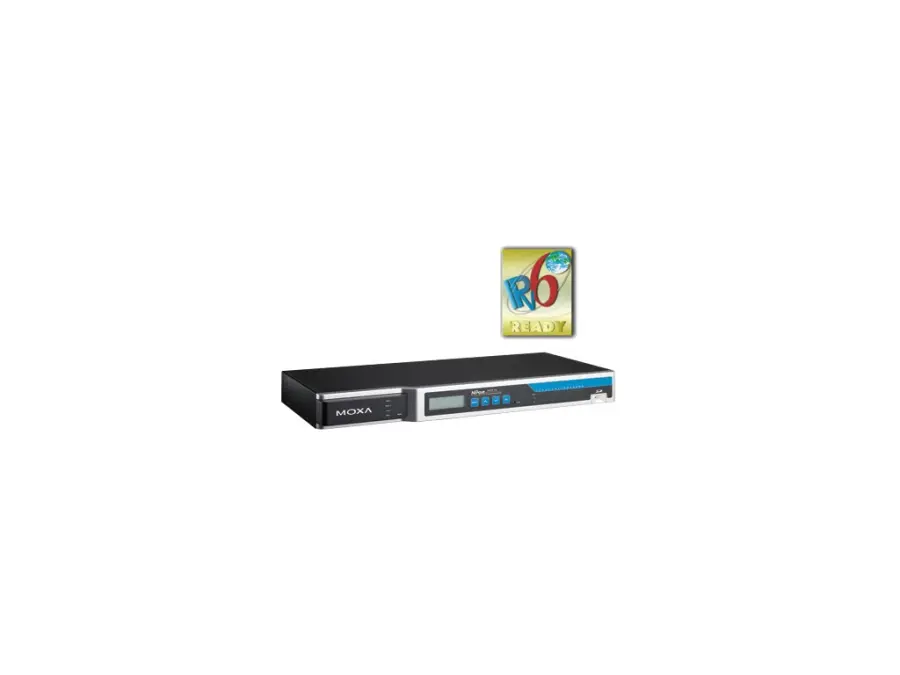

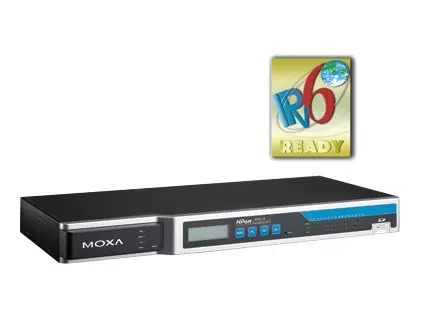

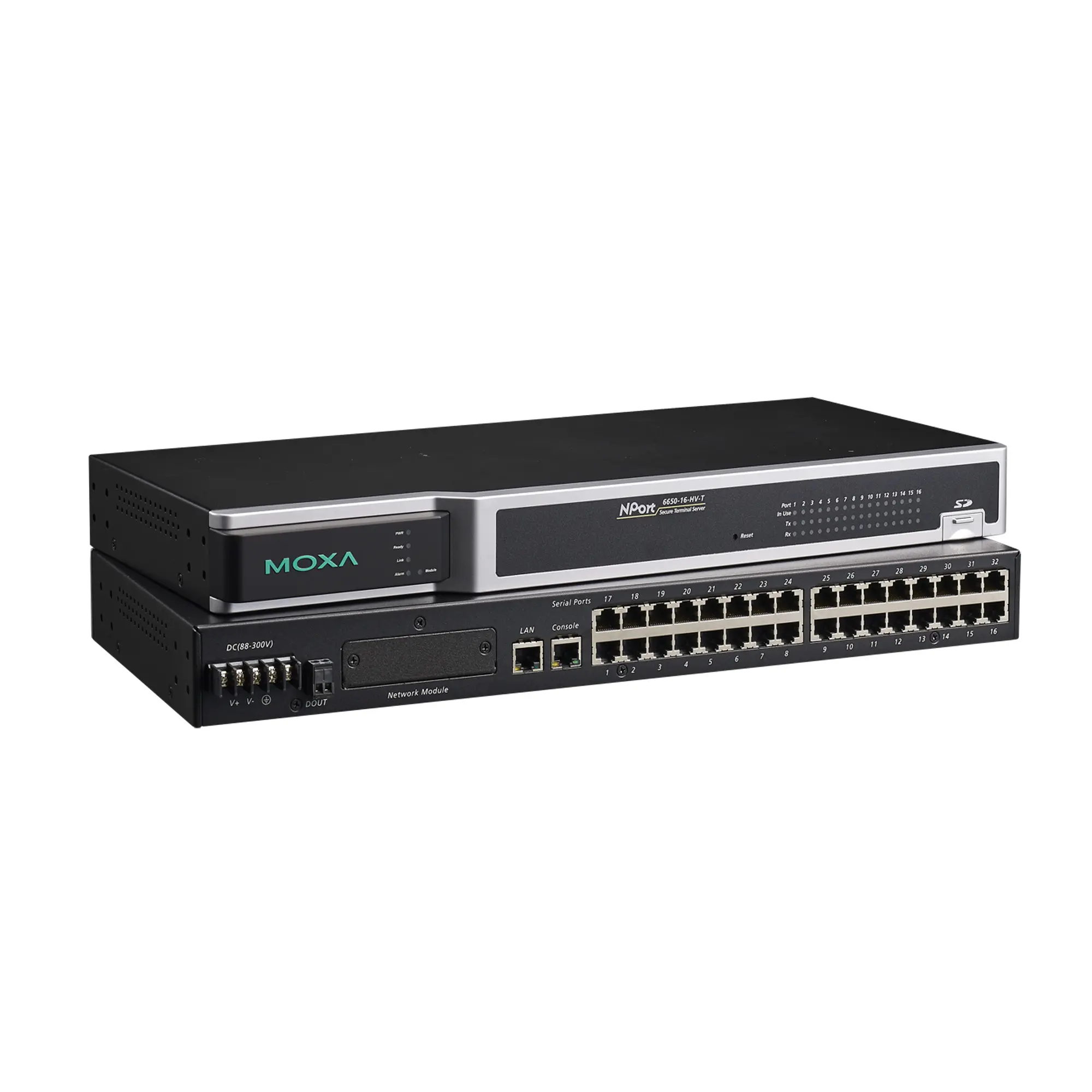

NPort 6650-32

NPort 6650-32 is a industrial terminal server in the NPort 6400/6600 Series. 32-port RS-232/422/485 to Ethernet secure terminal server, 100 to 240 VAC input

Specifications:

• 10/100BaseT(X) Ports (RJ45 connector): 1 Auto MDI/MDI-X connection
• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Arm®-based Platform Support: Windows 11Linux Kernel 6.x, 5.x, and 4.xmacOS 14, 13, 12, and 11
• Connector: 8-pin RJ45
• Console Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)
• Details: See www.moxa.com/warranty
• Dimensions (with ears): 480 x 195 x 44 mm (18.9 x 7.68 x 1.73 in)
• Dimensions (without ears): 440 x 195 x 44 mm (17.32 x 7.68 x 1.73 in)
• Interactive Interface: LCD panel display Push buttons for configuration
• No. of Ports: 32
• Optical Fiber: | 100BaseFX Multi-Mode | Single-Mode Fiber Cable Type | OM1 | 50/125 µm | G.652 800 MHz x km Typical Distance | 4 km | 5 km | 40 km Wavelength | Typical (nm) | 1300 | 1310 TX Range (nm) | 1260 to 1360 | 1280 to 1340 RX Range (nm) | 1100 to 1600 | 1100 to 1600 Optical Power | TX Range (dBm) | -10 to -20 | 0 to -5 RX Range (dBm) | -3 to -32 | -3 to -34 Link Budget (dB) | 12 | 29 Dispersion Penalty (dB) | 3 | 1 Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
• Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485 Data Direction Control: Automatic Data Direction Control (ADDC)
• RS-485-2w: Data+, Data-, GND
• RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
• SD Slot: Up to 32 GB (SD 2.0 compatible)
• Serial Standards: RS-232 RS-422 RS-485
• Terminator for RS-485: 120 ohms
• Windows Real COM Drivers: Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NTWindows Embedded CE 6.0 and 5.0, Windows XP Embedded
• Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
• Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
• Virtual Machine: VMWare ESXi (Windows 11/10)VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x)Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x)
• Encryption: HTTPS AES-128 AES-256 HMAC RSA-1024 SHA-1 SHA-256 SHA-384
• MIB: MIB-II
• Security Protocols: HTTPS (TLS 1.2) SNMPv3 SSHv2
• Unicast Routing: RIPV1/V2 Static Route
• Input Current: 285 mA @ 100 VAC
• Input Voltage: 100 to 240 VAC, 47 to 63 Hz
• Magnetic Isolation Protection: 1.5 kV (built-in)
• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
• Operating Temperature: 0 to 55°C (32 to 131°F)
• Vibration: IEC 60068-2-6
• Housing: Metal
• Installation: Rack mounting
• Weight: 3600 g (7.94 lb)
• Compatible Modules: NM Series expansion modules for optional extension of RJ45 and fiber Ethernet ports
• Standard Operation Modes: Disabled Ethernet Modem Pair Connection PPP Printer Real COM Reverse Telnet RFC2217 TCP Client TCP Server Terminal UDP
• Standards: Telcordia (Bellcore) Standard
• Android API: Android 3.1.x and later
• Fixed TTY Drivers: macOS versions: 14, 13, 12, 11, and 10.1x SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
• Linux Real TTY Drivers: Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
• Management: DHCP Client IPv4/IPv6 SMTP SNMPv1/v2c/v3 Telnet DNS HTTP ARP BOOTP UDP TCP/IP ICMP LLDP PPPOE SNTP
• Time Management: SNTP Client
• Alarm Contact Channels: Resistive load: 1 A @ 24 VDC
• Alert Tools: Built-in buzzer and RTC (real-time clock)
• Authentication: Local database RADIUS TACACS+
• Automatic Reboot Trigger: Built-in WDT
• Configuration Options: Serial Console Windows Utility Device Search Utility (DSU) MCC Tool Telnet/SSH Console Web Console (HTTP/HTTPS)
• Data Bits: 5, 6, 7, 8
• Flow Control: RTS/CTS DTR/DSR XON/XOFF
• Freefall: IEC 60068-2-34
• Green Product: RoHS, CRoHS, WEEE
• Parity: None Even Odd Space Mark
• Safety: UL 60950-1
• Secure Operation Modes: Reverse SSH Secure Pair Connection Secure Real COM Secure TCP Client Secure TCP Server SSH
• Stop Bits: 1, 1.5, 2
• Time: 310,078 hrs
• Traffic Control: NEMA TS2
• Warranty Period: 5 years
