title: "OBU-102-SS-LC"
category: "Industrial Communication > Industrial Ethernet > Ethernet Mediaconverters"
---

**Kategorie:** Industrial Communication > Industrial Ethernet > Ethernet Mediaconverters

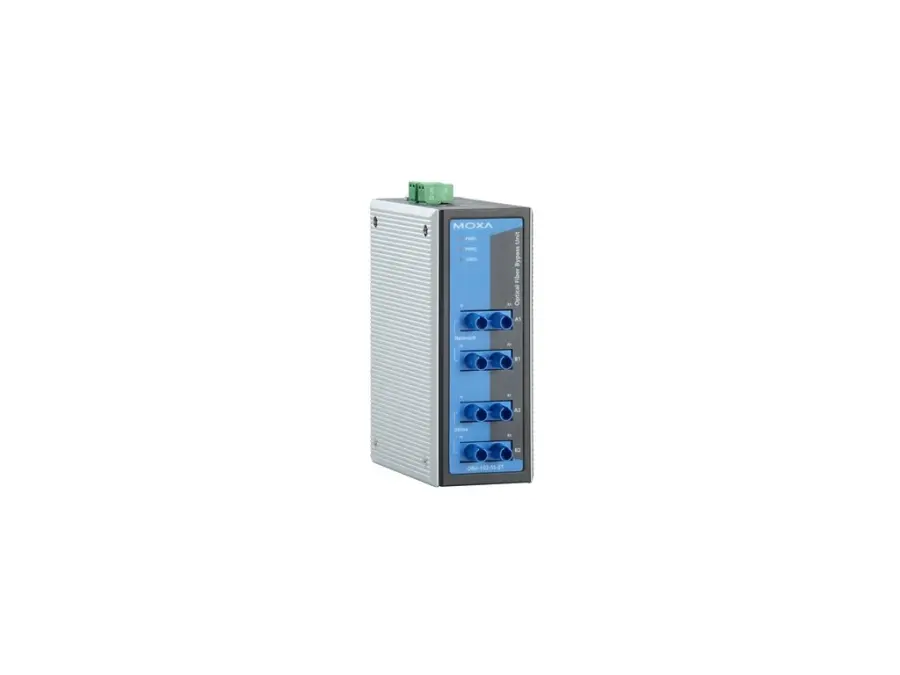

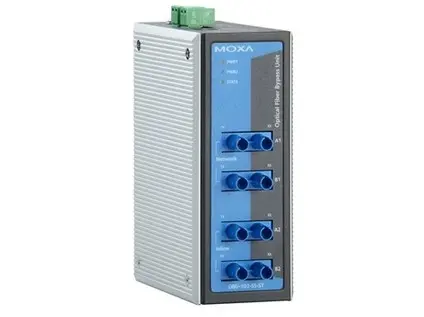

# OBU-102-SS-LC

Power supply, Material: Metal, Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180420117030 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Power supply – 2-channel optical fiber bypass unit with 4 single-mode ports, LC, -20 to 70°C operating temperatureEthernet InterfaceSingle-Mode Fiber, LC Female Connector: 4Bypass PropertiesOptical Switching Time: 10 ms (max.)Insertion Loss: 1.6 dB (max.)Rotary Switch ConfigurationBoot Delay Interval: 10 steps, each step represents a 5 second delayPower ParametersInput Voltage: 12/24/48 VDC, Redundant dual inputsInput Current: 0.1 A @ 48 VDCReverse Polarity Protection: SupportedPhysical CharacteristicsHousing: MetalIP Rating: IP30Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)Weight: 700 g (1.54 lb)Installation: DIN-rail mounting, Wall mounting (with optional kit)Environmental LimitsOperating Temperature: -20 to 70°C (-4 to 158°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and CertificationsSafety: UL 508EMC: EN 55032/24EMI: CISPR 32, FCC Part 15B Class AEMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMFFreefall: IEC 60068-2-31Shock: IEC 60068-2-27Vibration: IEC 60068-2-6WarrantyWarranty Period: 2 yearsDetails: See www.moxa.com/warranty

## Soubory ke stažení

* [Katalog OBU-102_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/OBU-102_Series_ELVAC15.pdf)
* [Manual OBU-102_HIG_2e_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/OBU-102_HIG_2e_ELVAC15.pdf)
