Description

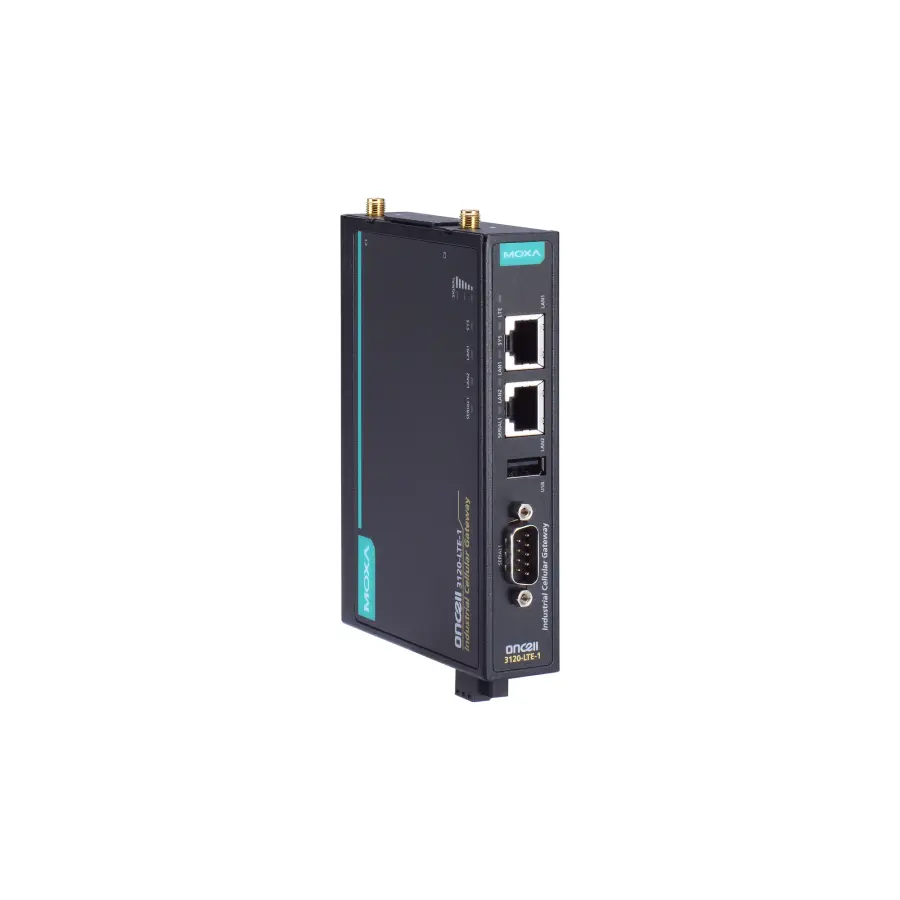

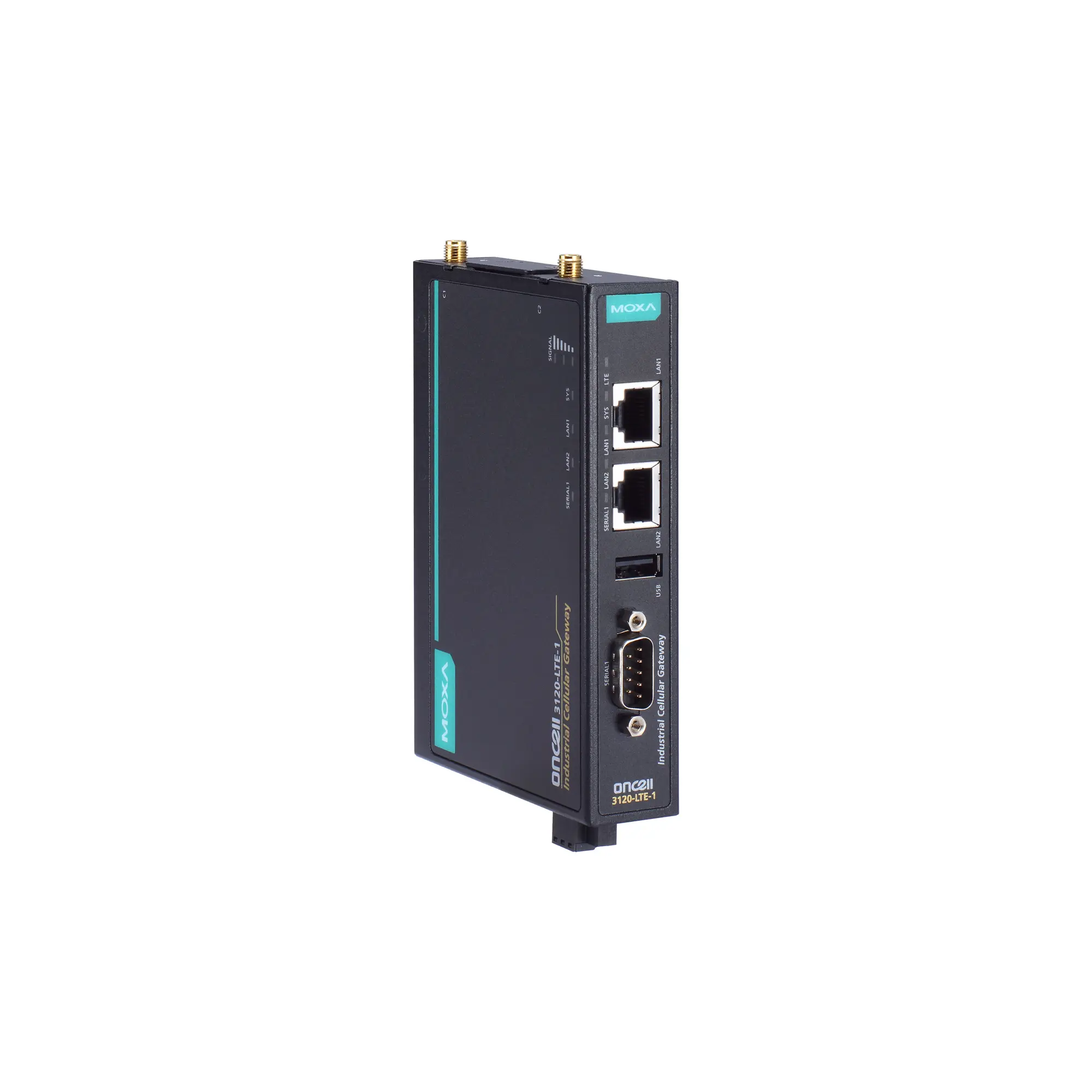

Industrial wireless AP/client – Industrial LTE Cat. 1 cellular gateway, B1/B3/B8/B20/B28, 1 RS232/422/485 serial port, 2 10/100BaseT(X) RJ45 ports, 0 to 55°C operating temperature
Cellular Interface
- Cellular Standards: LTE Cat. 1 HSPA, UMTS, EDGE, GPRS GSM
- LTE Data Rate: 10 MHz bandwidth: 10.2 Mbps DL, 5.2 Mbps UL
- HSPA Data Rates: 7.2 Mbps DL, 5.76 Mbps UL
- Band Options (EU): LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz) / LTE Band 28A (700 MHz) UMTS/HSPA 900 MHz / 1800 MHz / 2100 MHz GSM 900 MHz / 1800 MHz
- No. of SIMs: 2
- SIM Format: Nano SIM
- Cellular Antenna Connectors: 2 SMA female
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 2
USB Interface
- No. of USB Ports: 1
- USB Connector: USB Type A
- USB Standards: USB 2.0
Serial Interface
- No. of Ports: 1
- Connector: DB9 male
- Serial Standards: RS-232/422/485
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Baudrate: 75 bps to 921.6 kbps
- Console Port: RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Ethernet Software Features
- Management: GuaranLink DHCP Server DDNS ARP Telnet TCP/IP, UDP, SMTP Remote SMS Control Power Saving Syslog SNMPv1/v2c/v3 Serial Console Telnet Console Web Console Wireless Search Utility Moxa Remote Connect (MRC)
- Firewall: Filter: MAC, IP protocol, port-based Access IP list
- Security: HTTPS
- Time Management: SNTP Client
IPsec VPN
- Authentication: PSK/X.509/RSA
- Encryption: DES, 3DES, AES, MD5, SHA-1, DH2, DH5
- Concurrent VPN Tunnels: 5
NAT
- Features: NAT loopback 1-to-1 N-to-1 Port forwarding
OpenVPN
- OpenVPN: OpenVPN (client and server), Tunnel mode (routing) and TAP mode (bridge)
- Encryption: Blowfish CBC, DES CBC, DES-EDE3 CBC, AES-128/192/256 CBC
- Concurrent VPN Tunnels: 5
Power Parameters
- Input Current: 0.8 A (max.)
- Input Voltage: 9 to 36 VDC
- Power Consumption: 5 W (typ.)
- Power Connector: Terminal block
- Reverse Polarity Protection: Supported
- Power Button: Reset button
Physical Characteristics
- Housing: Metal
- IP Rating: IP30
- Dimensions: 128.5 x 26 x 89.1 mm (5.06 x 1.02 x 3.51 in)
- Weight: 550 g (1.22 lb)
- Installation: DIN-rail mounting Wall mounting (with optional kit)
Environmental Limits
- Operating Temperature: 0 to 55°C (32 to 131°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35 EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 kHz to 150 MHz; Signal: 80 V IEC 61000-4-8: 30 A/m
- Freefall: IEC 60068-2-32
- Hazardous Locations: ATEX IECEx Class I Division 2
- Radio Frequency: PTCRB, FCC, ID, SLE-LE910CXNF
- Radio: RCM, KC, JATE, NCC TELEC
- Carrier Approvals: Verizon AT&T
- Cellular Standards: EN 301 511 EN 301 908-1 EN 62311(MPE SAR) AS/CA S042 EN 301489-1/-52
- Cybersecurity: EN 18031-1
- Safety: IEC 60950-1 IEC 62368-1 UL 60950-1 UL 62368-1
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 585,775 hrs
- Standards: Telcordia Standard SR-332
