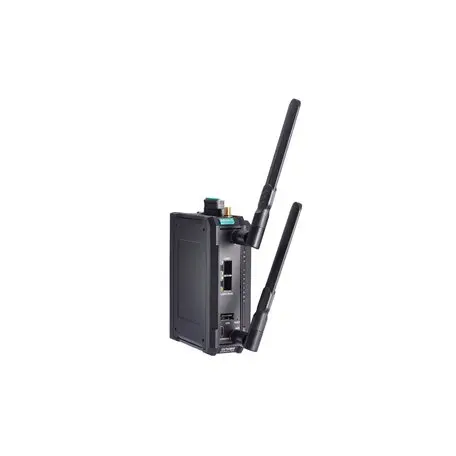

# OnCell G4302-LTE4-EU

Industrial router, Ports: 2, Temp: -10 to 55°C (14 to 131°F), Power: 12 to 48 VDC Redundant dual inputs

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 182808024710 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial router – Industrial LTE Cat. 4 cellular secure router, B1/B3/B7/B8/B20/B28, 2 10/100/1000BaseT(X) RJ45 ports, -10 to 55°C operating temperatureCellular InterfaceCellular Standards: LTE CAT 4, HSPA, UMTS, EDGE, GPRS, GSMData Rate: 20 MHz bandwidth: 150 Mbps DL, 50 Mbps ULFrequency Bands Supported: LTE B1 (2100 MHz) / B3 (1800 MHz) / B7 (2600 MHz) / B8 (900 MHz) / B20 (800 MHz) / B28 (700 MHz)UMTS/HSPA B1 (2100 MHz) / B8 (900 MHz)GSM/GPRS/EDGE 900 MHz / 1800 MHzNo. of SIMs: 2 Push-eject tray typeSIM Format: Nano SIMCellular Antenna Connectors: 2 x SMA femaleEthernet Interface10/100/1000BaseT(X) Ports (RJ45 connector): 2Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X)GNSS InterfaceGNSS Bands: GPS (1575.42 MHz)GLONASS (1597.52 MHz)Galileo (1575.42 MHz)BeiDou (1561.098 MHz)GNSS Antenna Connectors: 1 x SMA femaleInput/Output InterfaceDigital Output Channels: 1 Relay output with current carrying capacity of 1 A @ 24 VDCDigital Input Channels: 1Digital Inputs: -30 to +3 V for state 0 +13 to +30 V for state 1Buttons: Reset buttonUSB InterfaceNo. of USB Ports: 1USB Connector: USB Type AUSB Standards: USB 2.0 For use with ABC-02.Serial InterfaceNo. of Ports: 1Connector: DB9 maleSerial Standards: RS-232/422/485Data Bits: 5, 6, 7, 8Stop Bits: 1, 1.5, 2Parity: None Even OddBaudrate: 300 bps to 921.6 kbpsConsole Port: RS-232 (TxD, RxD, GND), USB type-C (115200, n, 8, 1) We recommend using the Moxa CBL-USBCF9-GY-150 console cable, which can be purchased separately.Serial SignalsRS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GNDRS-422: Tx+, Tx-, Rx+, Rx-, GNDRS-485-2w: Data+, Data-, GNDRS-485-4w: Tx+, Tx-, Rx+, Rx-, GNDOperation ModesStandards: Real COM mode RFC2217 mode TCP Client mode TCP Server mode UDP mode SCATSLED InterfaceLED Indicators: PWR1, PWR2, STATE, USB, SIM1, SIM2, CELL, LTE, GNSS, SERIAL, VPNWireless Software FeaturesManagement: GuaranLink Send SMS SMS Remote Control Moxa Remote Connect (MRC)Ethernet Software FeaturesManagement: DHCP Server/Client DNS Syslog MXview One MXconfig MXsecurity Power ManagementBroadcast Forwarding: IP directed broadcast, broadcast forwardingConfiguration Options: Serial Console We recommend using the Moxa CBL-USBCF9-GY-150 console cable, which can be purchased separately. Web Console (HTTP/HTTPS) Command Line Interface (CLI) through Serial/Telnet/SSHNetwork Protocols: LLDP SMTP SNMPv1/v2c/v3 TFTP TCP/IP UDP IPv4 ARP HTTP/HTTPS Telnet SSHFilter: 802.1Q VLAN Port-based VLANUnicast Routing: OSPF RIPV1/V2 Static RouteMulticast Routing: Static RouteRouting Redundancy: VRRPTime Management: NTP Server/Client SNTPTunneling:

## Soubory ke stažení

* [Katalog](https://www.elvac.eu/ipc/download/moxa/datasheet/oncell-g4302-lte4-series-datasheet-v1.4_2024.pdf)
