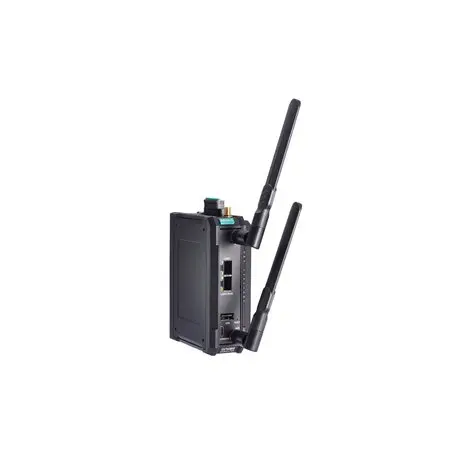

OnCell G4302-LTE4-EU-T

Industrial router – Industrial LTE Cat. 4 cellular secure router, B1/B3/B7/B8/B20/B28, 2 10/100/1000BaseT(X) RJ45 ports, -30 to 70°C operating temperature

Cellular Interface

• Cellular Standards: LTE CAT 4, HSPA, UMTS, EDGE, GPRS, GSM
• Data Rate: 20 MHz bandwidth: 150 Mbps DL, 50 Mbps UL
• Frequency Bands Supported: LTE B1 (2100 MHz) / B3 (1800 MHz) / B7 (2600 MHz) / B8 (900 MHz) / B20 (800 MHz) / B28 (700 MHz)UMTS/HSPA B1 (2100 MHz) / B8 (900 MHz)GSM/GPRS/EDGE 900 MHz / 1800 MHz
• No. of SIMs: 2 Push-eject tray type
• SIM Format: Nano SIM
• Cellular Antenna Connectors: 2 x SMA female

Ethernet Interface

• 10/100/1000BaseT(X) Ports (RJ45 connector): 2
• Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X)

GNSS Interface

• GNSS Bands: GPS (1575.42 MHz)GLONASS (1597.52 MHz)Galileo (1575.42 MHz)BeiDou (1561.098 MHz)
• GNSS Antenna Connectors: 1 x SMA female

Input/Output Interface

• Digital Output Channels: 1 Relay output with current carrying capacity of 1 A @ 24 VDC
• Digital Input Channels: 1
• Digital Inputs: -30 to +3 V for state 0 +13 to +30 V for state 1
• Buttons: Reset button

USB Interface

• No. of USB Ports: 1
• USB Connector: USB Type A
• USB Standards: USB 2.0 For use with ABC-02.

Serial Interface

• No. of Ports: 1
• Connector: DB9 male
• Serial Standards: RS-232/422/485
• Data Bits: 5, 6, 7, 8
• Stop Bits: 1, 1.5, 2
• Parity: None Even Odd
• Baudrate: 300 bps to 921.6 kbps
• Console Port: RS-232 (TxD, RxD, GND), USB type-C (115200, n, 8, 1) We recommend using the Moxa CBL-USBCF9-GY-150 console cable, which can be purchased separately.

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-2w: Data+, Data-, GND
• RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Operation Modes

• Standards: Real COM mode RFC2217 mode TCP Client mode TCP Server mode UDP mode SCATS

LED Interface

• LED Indicators: PWR1, PWR2, STATE, USB, SIM1, SIM2, CELL, LTE, GNSS, SERIAL, VPN

Wireless Software Features

• Management: GuaranLink Send SMS SMS Remote Control Moxa Remote Connect (MRC)

Ethernet Software Features

• Management: DHCP Server/Client DNS Syslog MXview One MXconfig MXsecurity Power Management
• Broadcast Forwarding: IP directed broadcast, broadcast forwarding
• Configuration Options: Serial Console We recommend using the Moxa CBL-USBCF9-GY-150 console cable, which can be purchased separately. Web Console (HTTP/HTTPS) Command Line Interface (CLI) through Serial/Telnet/SSH
• Network Protocols: LLDP SMTP SNMPv1/v2c/v3 TFTP TCP/IP UDP IPv4 ARP HTTP/HTTPS Telnet SSH
• Filter: 802.1Q VLAN Port-based VLAN
• Unicast Routing: OSPF RIPV1/V2 Static Route
• Multicast Routing: Static Route
• Routing Redundancy: VRRP
• Time Management: NTP Server/Client SNTP
• Tunneling:
