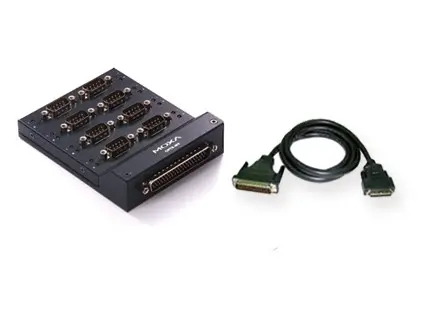

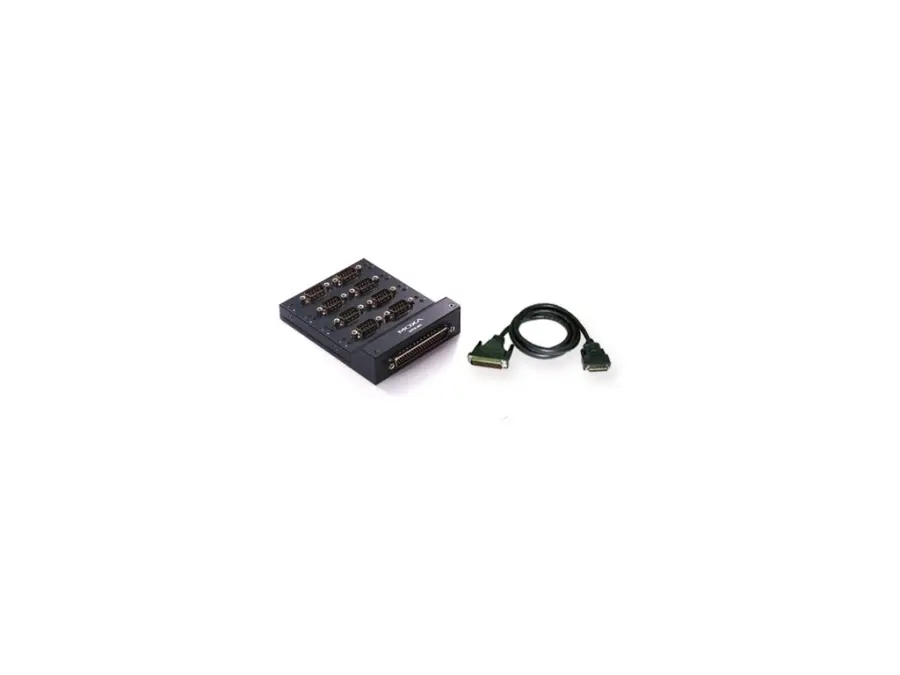

OPT8-M9

Cable – M62 to 8 x DB9 male connection box, DB62 male to DB62 female cable, 1.5 m

Connector

• Board-side Connector: DB62(male) x 1
• Device-side Connector: DB9 (male) x 8
• Connection Cable: DB62 (male) to DB62 (female) 1.5 m connection cable for connecting to the serial board

LED Interface

• LED Indicators: TxD, RxD indicators for each device-side port

Physical Characteristics

• Dimensions: 90 x 111 x 27.5 mm (3.54 x 4.37 x 1.08 in)

Warranty

• Warranty Period: 1 year
• Details: See www.moxa.com/warranty
