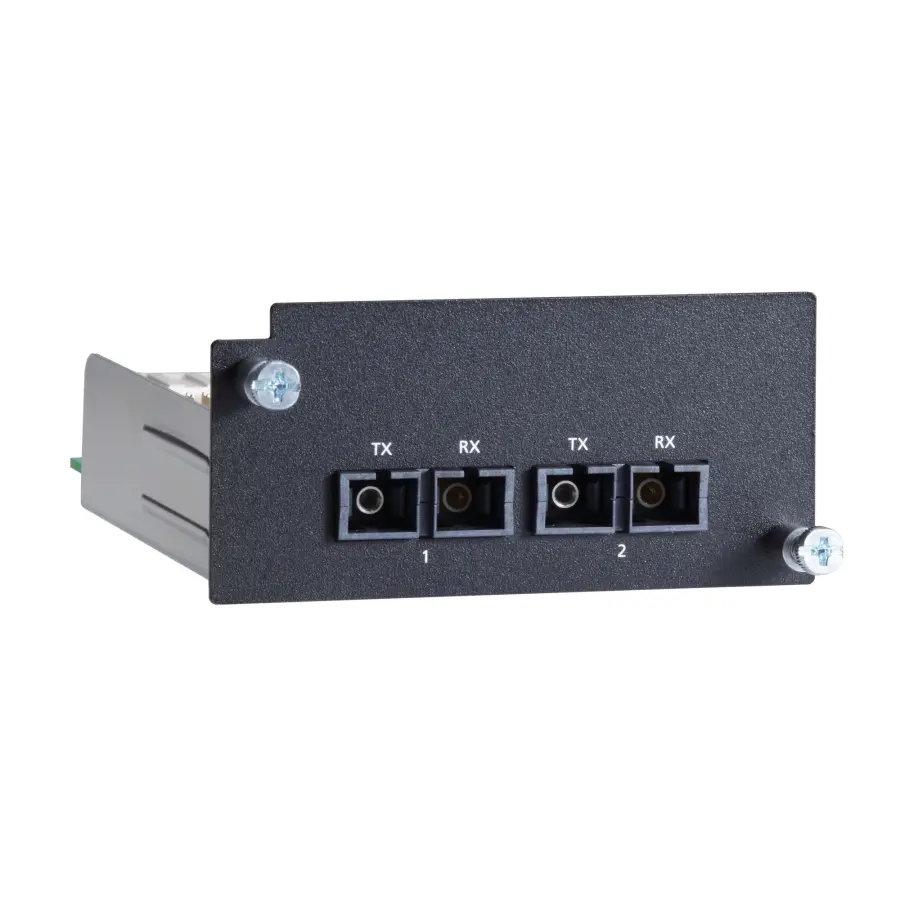

# PM-7500-2MSC

Industrial device, Ports: 2

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180432114340 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial networking device – Fast Ethernet module with 2 100BaseFX multi-mode ports with SC connectors, compliant with IEC 61850-3, -40 to 85°C operating temperatureEthernet Interface100BaseFX Ports (multi-mode SC connector): 2Optical Fiber: Read more 100BaseFX Multi-Mode Single-Mode Fiber Cable Type OM1 50/125 µm G.652 800 MHz x km Typical Distance 4 km 5 km 40 km Wavelength Typical (nm) 1300 1310 TX Range (nm) 1260 to 1360 1280 to 1340 RX Range (nm) 1100 to 1600 1100 to 1600 Optical Power TX Range (dBm) -10 to -20 0 to -5 RX Range (dBm) -3 to -32 -3 to -34 Link Budget (dB) 12 29 Dispersion Penalty (dB) 3 1 Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).WarrantyWarranty Period: 5 yearsDetails: See www.moxa.com/warranty

## Soubory ke stažení

* [Katalog PM-7500_series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/PM-7500_series_ELVAC15.pdf)
* [Manual Communication_Redundancy_Users_Manual_v5_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/Communication_Redundancy_Users_Manual_v5_ELVAC15.pdf)
