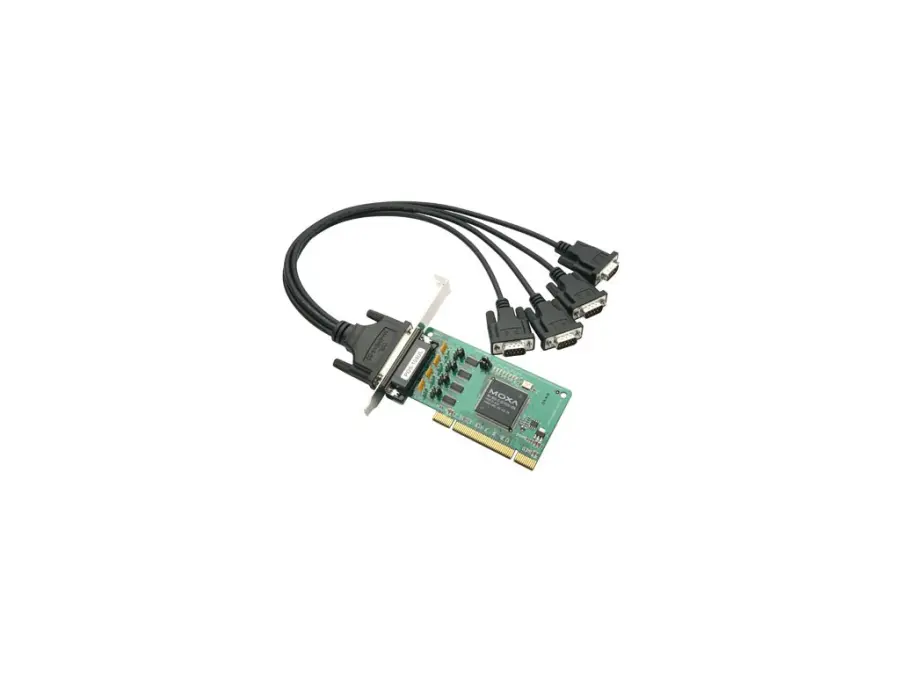

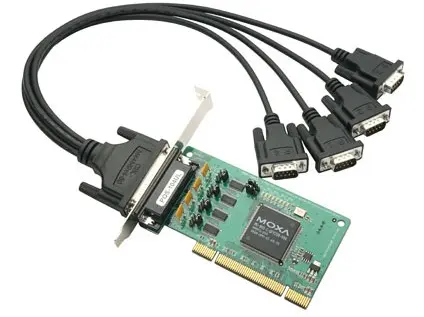

POS-104UL-T

Serial communication device – 4-port RS-232 low-profile Universal PCI board with serial port power, -40 to 85°C operating temperature

Serial Interface

• Comm. Controller: 16C550C compatible
• Baudrate: 50 bps to 921.6 kbps
• Bus: 32-bit Universal PCI
• Connector: DB44 female
• Data Bits: 5, 6, 7, 8
• Flow Control: None, RTS/CTS, XON/XOFF
• Max. No. of Boards per PC: 8
• No. of Ports: 4
• Parity: None, Even, Odd, Space, Mark
• Serial Standards: RS-232
• Stop Bits: 1, 1.5, 2

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI (optional)

Serial Software Features

• Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
• Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
• UNIX Drivers: Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6

Power Parameters

• Output Power Rating: 1 A @ 5 V, 1 A @ 12 V (per port)

Physical Characteristics

• Dimensions: 64.4 x 120 mm (2.53 x 4.72 in)

Environmental Limits

• Operating Temperature: -40 to 85°C (-40 to 185°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 61000-6-2/-6-4
• EMI: EN 61000-6-4, FCC Part 15B Class B
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF
• Green Product: RoHS, CRoHS, WEEE

MTBF

• Time: 2,124,022 hrs
• Standards: Telcordia (Bellcore) Standard TR/SR

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
