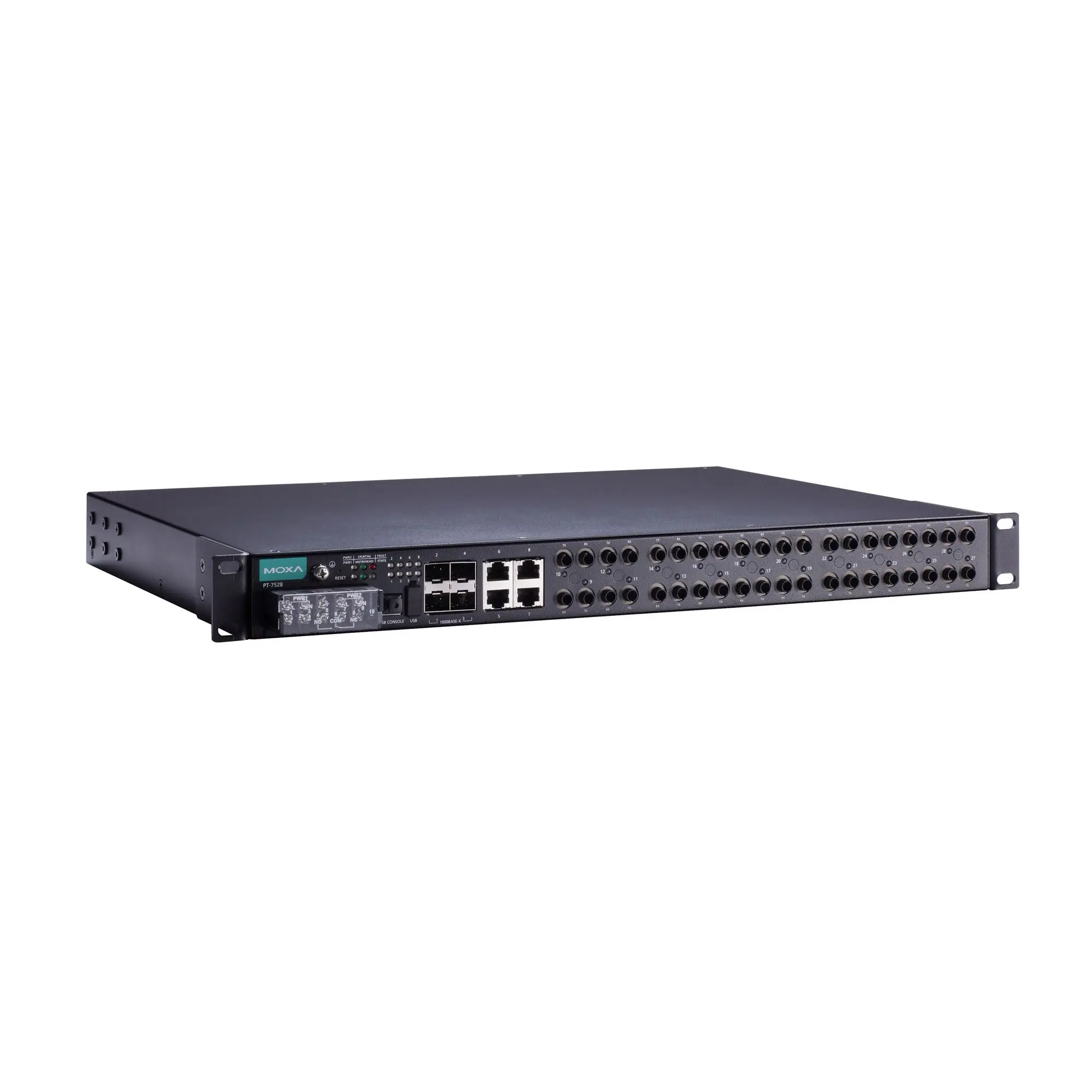

--- title: "PT-7528-8SSC-16TX-4GSFP-WV-WV" category: "Industrial Communication > Industrial Ethernet > Rackmount Ethernet Switches" --- **Kategorie:** Industrial Communication > Industrial Ethernet > Rackmount Ethernet Switches # PT-7528-8SSC-16TX-4GSFP-WV-WV Industrial Managed Ethernet switch, Ports: 16, Temp: -40 to 85°C (-40 to 185°F) Note: Cold start requires minimum of 100 VAC @ -40°C **Dostupnost:** Not in stock (0 pcs) ## Základní informace | Parametr | Hodnota | | --- | --- | | Unit | pcs | | Code 1 | 180428113689 | | Warranty | 60 | | Warranty for companies | 60 | | Brand | MOXA | ## Podrobný popis Industrial Managed Ethernet switch – IEC 61850-3 managed rackmount Ethernet switch with 8 100BaseFX ports (SSC), 16 10/100BaseT(X) ports, and 4 1000BaseSFP ports, for a total of up to 28 ports, 2 isolated power supply (18 to 72 VDC), -40 to 85°C operating temperatureEthernet Interface10/100BaseT(X) Ports (RJ45 connector): 16100BaseFX Ports (single-mode SC connector): 8Optical Fiber: Read more 100BaseFX Multi-Mode Single-Mode Fiber Cable Type OM1 50/125 µm G.652 800 MHz x km Typical Distance 4 km 5 km 40 km 80 km Wavelength Typical (nm) 1300 1310 1550 TX Range (nm) 1260 to 1360 1280 to 1340 1530 to 1570 RX Range (nm) 1100 to 1600 1100 to 1600 1100 to 1600 Optical Power TX Range (dBm) -14 to -20* 0 to -5 0 to -5 RX Range (dBm) -3 to -32 -3 to -34 -3 to -34 Link Budget (dB) 12 29 29 Dispersion Penalty (dB) 3 1 1 *This range only applies to the PT-7528 multi-mode SC and ST fiber modules.Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).Cabling Direction: Front cablingStandards: IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/ZXEthernet Software FeaturesFilter: 802.1Q GMRP, GVRP, IGMP v1/v2c Port-based VLAN VLAN unawareIndustrial Protocols: EtherNet/IP Modbus TCPManagement: Back Pressure Flow Control BOOTP DHCP Option 66/67/82 DHCP Server/Client Flow control HTTP IPv4/IPv6 LLDP Port Mirror RARP, RMON, SMTP, SNMP Inform SNMPv1/v2c/v3 Syslog Telnet TFTP Fiber checkMIB: Bridge MIB Ethernet-like MIB MIB-II P-BRIDGE MIB Q-BRIDGE, MIB, RMON, MIB Groups 1, 2, 3, 9 RSTP MIBPower Substation: IEC 61850 QoS MMS Configuration WizardRedundancy Protocols: Link Aggregation MSTP, RSTP, STP Turbo Chain Turbo Ring v1/v2Security: Broadcast storm protection HTTPS/SSL TACACS+ Port Lock RADIUS Rate Limit SSHTime Management: NTP Server/Client SNTPSwitch PropertiesIGMP Groups: 256Jumbo Frame Size: 9.6 KBMax. No. of VLANs: 256VLAN ID Range: VID 1 to 4094Priority Queues: 4Switching Capacity: 12.8 GbpsForwarding Capacity: 12.8 GbpsUSB InterfaceStorage Port: USB Type ASerial InterfaceConsole Port: USB-serial console (Type B connector)Input/Output InterfaceAlarm Contact Channels: Resistive load: 3 A @ 30 VDC, 240 VACPower ParametersConnection: 10-pin terminal blockInput Voltage: Redundant power modules 24/48 VDC (18 to 72 VDC)Input Current: 1.428 A @ 24 VDC, 0.735 A @ 48 VDCOverload Current Protection: SupportedReverse Polarity Protection: SupportedPhysical CharacteristicsHousing: AluminumIP Rating: ## Technická specifikace | Vlastnost | Hodnota | | --- | --- | | Min. provozní teplota | Min. provozní teplota -40 °C | | Max. provozní teplota | Max. provozní teplota 85 °C | | Počet metalických LAN portů | Počet metalických LAN portů 16 | | Počet optických LAN portů | Počet optických LAN portů 8 | | Počet portů max 1000 Mb | Počet portů max 1000 Mb 4 | | Počet portů max 100 Mb | Počet portů max 100 Mb 24 | | Normy | Normy EN 50121-4; IEC 61850-3; IEEE 1613; NEMA TS2; UL 508 / UL 60950-1 | | Počet SFP slotů | Počet SFP slotů 4 | | Podpora MSTP a 802.1X | Podpora MSTP a 802.1X Ano | | Management | Management Ano | | Maximální počet portů včetně modulů | Maximální počet portů včetně modulů 28 | | Počet portů bez modulů | Počet portů bez modulů 28 | ## Soubory ke stažení * [Katalog PT-7528_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/PT-7528_Series_ELVAC15.pdf) * [Manual PT-7528_Series_UM_2e_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/PT-7528_Series_UM_2e_ELVAC15.pdf)
