Description

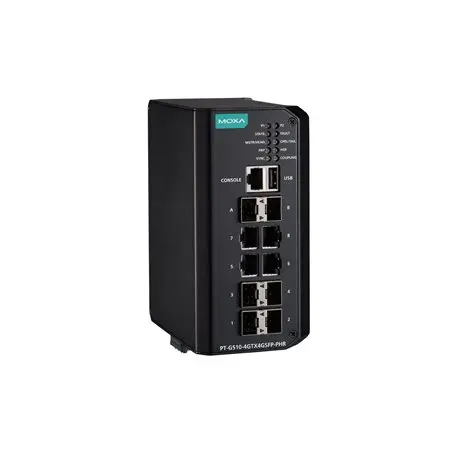

Industrial Managed Ethernet switch – IEC 61850-3 and IEC 62439-3 full Gigabit managed Ethernet switch with 4 100/1000BaseT(X) ports, 6 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature
Ethernet Interface
- 100/1000BaseT(X) Ports (RJ45 connector): 4
- 100/1000BaseSFP Ports: 6
- Standards: IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication IEEE 802.3ad for Port Trunk with LACP IEEE 802.3x for flow control
Ethernet Software Features
- Management: HTTPS Back Pressure Flow Control DHCP Option 66/67/82 Fiber check Flow control LLDP Port Mirror SNMP Inform BOOTP DHCP Server/Client HTTP IPv4/IPv6 RARP SMTP SNMPv1/v2c/v3 Syslog Telnet TFTP
- MIB: MIB-II Ethernet-like MIB Bridge MIB P-BRIDGE MIB Q-BRIDGE MIB RSTP MIB RMON MIB Groups 1, 2, 3, 9
- Filter: IGMP v1/v2/v3 GMRP GVRP 802.1Q QinQ VLAN
- Redundancy Protocols: Link Aggregation MSTP RSTP STP Turbo Chain Turbo Ring MRP HSR PRP Coupling RSTP grouping
- Security: RADIUS TACACS+ SSH Port Lock Broadcast storm protection MAB authentication Sticky MAC Access control list
- Time Management: NTP Server/Client SNTP IEEE 1588v2 PTP (hardware-based)
- Power Substation: GOOSE Check IEC 61850 QoS MMS
Switch Properties
- Priority Queues: 8
- Max. No. of VLANs: 256
- VLAN ID Range: 1 to 4094
- RSTP Grouping ID Range: 1 to 4094
- IGMP Groups: 4096
- MAC Table Size: 16 K
- Packet Buffer Size: 12 Mbits
Serial Interface
- Console Port: RS-232 (RJ45)
USB Interface
Power Parameters
- Input Voltage: 110-220 VAC, 110-220 VDC (88 to 300 VDC, 85 to 264 VAC)
- Input Current: 0.5 A @ 110-220 VAC 0.3 A @ 110-220 VDC
- Alarm Contact Channels: Resistive load: 1 A @ 24 VDC
- Overload Current Protection: Supported
- Reverse Polarity Protection: Supported
Physical Characteristics
- IP Rating: IP30
- Dimensions (without ears): 74 x 148 x 120 mm (2.91 x 5.83 x 4.72 in)
- Weight: 1476 g (3.25 lb)
- Installation: DIN-rail mounting
Environmental Limits
- Operating Temperature: -40 to 75°C (-40 to 167°F) -40 to 85°C (-40 to 185°F) for 16 hrs (tested in accordance with IEC 60068-2-2)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF EN 61000-4-11
- Power Substation: IEC 61850-3 Edition 2.0 Class 2 IEEE 1613
- Railway: EN 50121-4
- Safety: IEC 62368-1 UL 62368-1
MTBF
- Time: 688,584 hrs
- Standards: Telcordia (Bellcore) Standard TR/SR
