PT-G7728

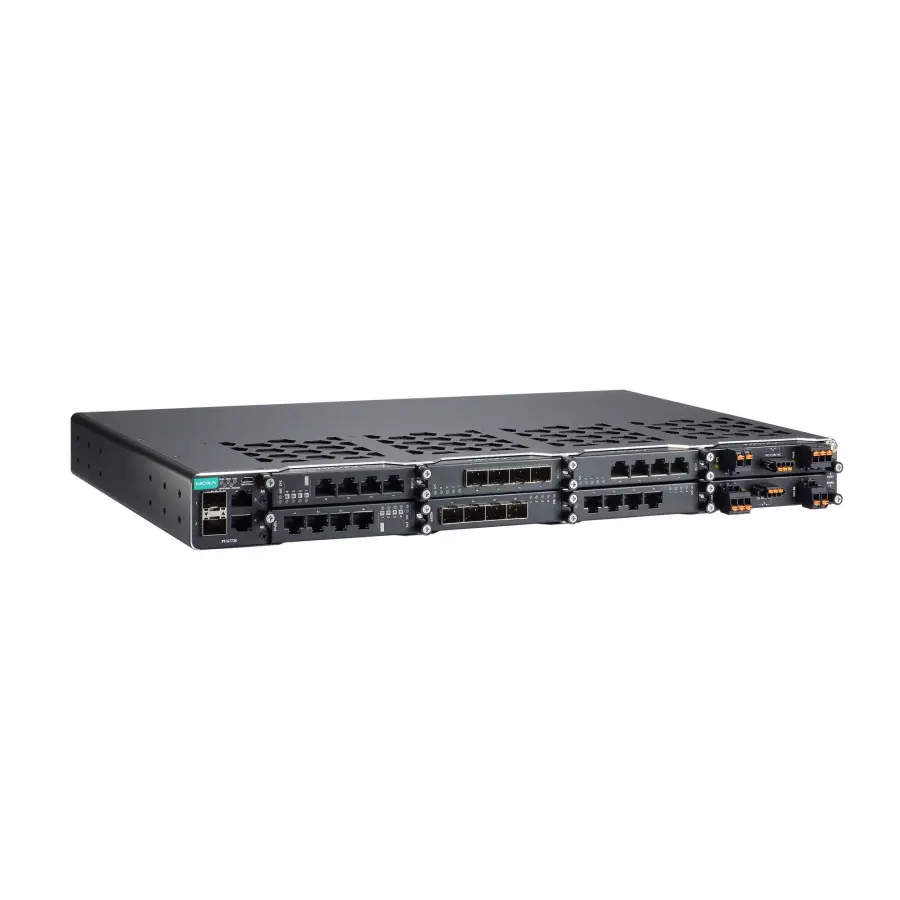

Industrial Layer 2 Managed PoE Ethernet switch – Layer 2 modular managed Ethernet switch with 2 100/1000BaseSFP and 2 10/100/1000BaseT(X), 6 slots for Ethernet modules and 2 slots for power modules, for a maximum of 28G ports total

Ethernet Interface

• 10/100/1000BaseT(X) Ports (RJ45 connector): 2
• 100/1000BaseSFP Ports: 2
• Module: 6
• Slot Combination: See the LM-7000H datasheet for information about the Ethernet, PoE+, and PRP/HSR modules.
• Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication IEEE 802.3ad for Port Trunk with LACP IEEE 802.3x for flow control

Ethernet Software Features

• Management: IPv4/IPv6 SNMP Inform SNMPv1/v2c/v3 DHCP Server/Client DHCP Option 66/67/82 BOOTP, TFTP, LLDP, RARP HTTP, HTTPS Telnet Flow control Back Pressure Flow Control Port Mirroring Fiber check Dying Gasp SMTP Syslog
• MIB: MIB-II Ethernet-like MIB Bridge MIB P-BRIDGE MIB Q-BRIDGE, MIB, RSTP, MIB, RMON, MIB Groups 1, 2, 3, 9
• Filter: IGMP v1/v2/v3 GMRP GVRP 802.1Q QinQ VLAN
• Redundancy Protocols: Link Aggregation MSTP, RSTP, STP Turbo Chain Turbo Ring v1/v2 V-ON MRP
• Security: RADIUS TACACS+ SSH Port Lock Broadcast storm protection MAB authentication Sticky MAC Access control list
• Time Management: NTP Server/Client SNTP IEEE 1588v2 PTP (hardware-based)
• Power Substation: IEC 61850 QoS GOOSE Check
• Industrial Protocols: EtherNet/IP Modbus TCP

Switch Properties

• Priority Queues: 8
• Max. No. of VLANs: 256
• VLAN ID Range: 1 to 4094
• IGMP Groups: 4096
• MAC Table Size: 16 K
• Packet Buffer Size: 12 Mbits
• Jumbo Frame Size: 9.6 KB

Serial Interface

• Console Port: RS-232 (RJ45)

USB Interface

• Storage Port: USB Type A

Power Parameters

• Input Voltage: With PWR-HV-P48 installed:110/220 VDC/VAC for the switch system48 VDC for PoE system (53 to 57 VDC is recommended for PoE+ devices)With PWR-LV-P48 installed:24/48 VDC for the switch system48 VDC for PoE system (53 to 57 VDC is recommended for PoE+ devices)With PWR-HV-NP installed:110/220 VDC/VAC for the switch systemWith PWR-LV-NP installed:24/48 VDC for the switch system
• Operating Voltage: With PWR-HV-P48 installed:88 to 300 VDC, 90 to 264 VAC for the switch system46 to 57 VDC for PoE systemsWith PWR-LV-P48 installed:18 to 72 VDC for the switch system46 to 57 VDC for PoE systemsWith PWR-HV-NP installed:88 to 300 VDC, 90 to 264 VAC for the switch systemWith PWR-LV-NP installed:18 to 72 VDC for the switch system
• Input Current: With PWR-HV-P48 installed:PWR input current (switch system)Max. 0.11 A @ 110 VDCMax. 0.06 A @ 220 VDCMax. 0.29 A @ 110 VACMax. 0.18 A @ 220 VACEPS input current (PoE system)Max. 0.53 A @ 48 VDC(excluding power consumption of PoE devices)With PWR-LV-P48 installed:PWR input current (switch system)Max. 0.53 A @ 24 VDCMax. 0.28 A @ 48 VDCEPS input current (PoE system)Max. 0.53 A @ 48 VDC(excluding power consumption of PoE devices)With PWR-HV-NP installed:PWR input current (switch system)Max. 0.11 A @ 110 VDCMax. 0.06 A @ 220 VDCMax. 0.29 A @ 110 VACMax. 0.18 A @ 220 VACWith PWR-LV-NP installed:PWR input
