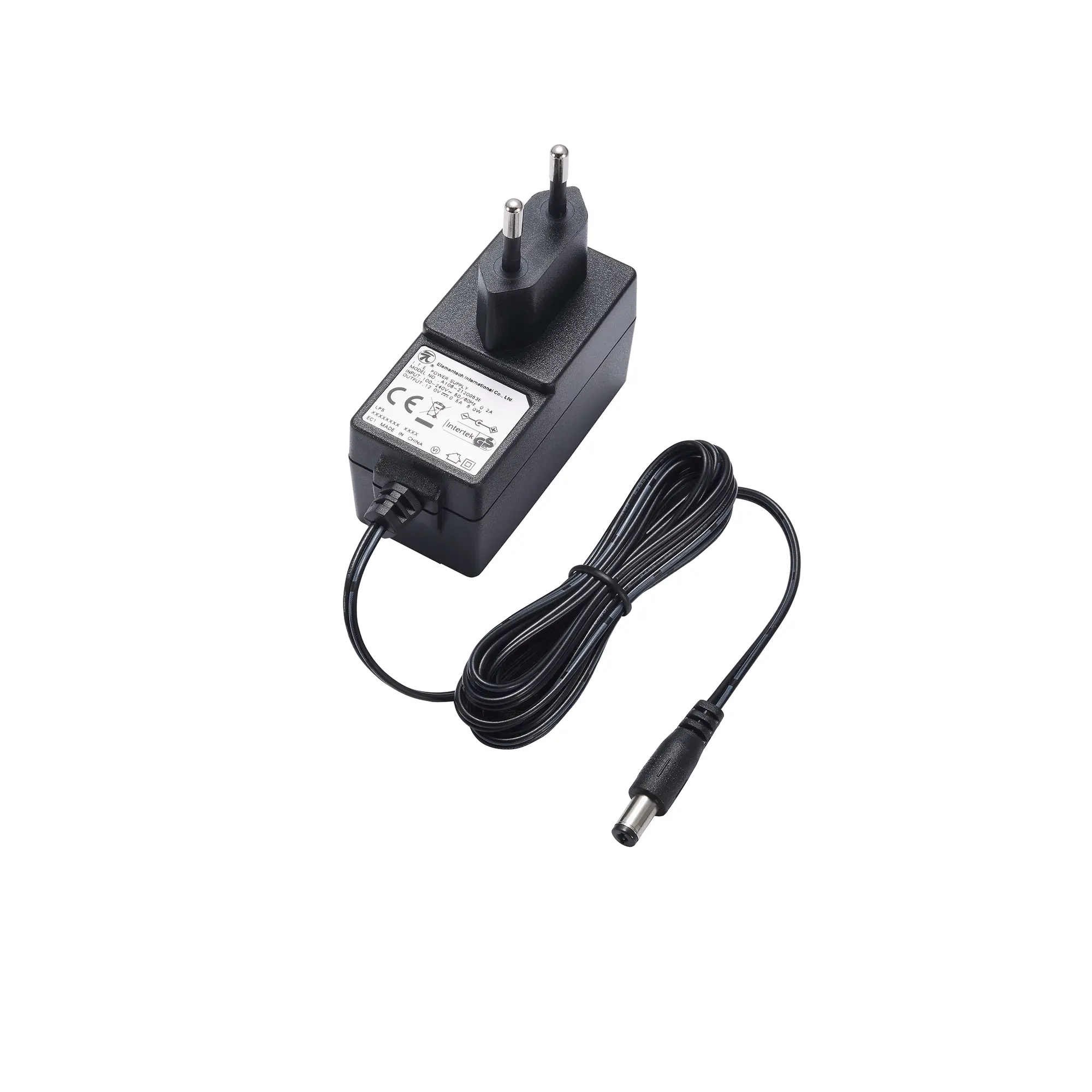

PWR-12050-EU-S1

Power supply – Locking barrel plug, 12 VDC, 0.5 A, 100 to 240 VAC, EU plug, 0 to 40°C operating temperature

Input Power Parameters

• Voltage Range: 100 to 240 VAC (50 to 60 Hz)

Power Parameters

• Input Plug Type: EU
• Output Power Rating: 0.5 A @ 12 VDC
• Output Plug Type: Connector Type: S-Type 5.5/2.1/7.5

Physical Characteristics

• Dimensions: 68.0 x 33.0 x 55.0 mm (2.68 x 1.30 x 2.17 in)
• Weight: 77 g (0.17 lb)
• Cord Length: 1500±100 mm (59.06±3.94 in)

Environmental Limits

• Operating Temperature: 0 to 40°C (32 to 104°F)
• Storage Temperature: -20 to 70°C (-4 to 158°F)

Standards and Certifications

• Safety: CE/GS

Warranty

• Warranty Period: 1.5 years
• Details: See www.moxa.com/warranty
