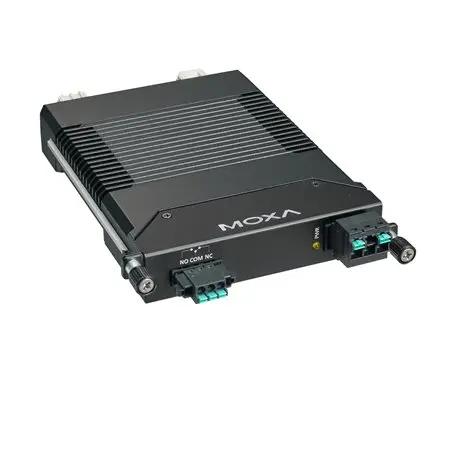

PWR-LV-NP

Industrial Ethernet switch – Power supply module (24/48 VDC) with system power input, relay

Power Parameters

• Input Voltage: 24/48 VDC for the switch system
• Operating Voltage: 18 to 72 VDC for the switch system
• Reverse Polarity Protection: Supported
• Alarm Contact Channels: 1 relay output with current carrying capacity of 2 A @ 30 VDC or 0.5 A @ 125 VAC

Physical Characteristics

• Weight: 340 g (0.75 lb)

MTBF

• Time: 2,710,293 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
